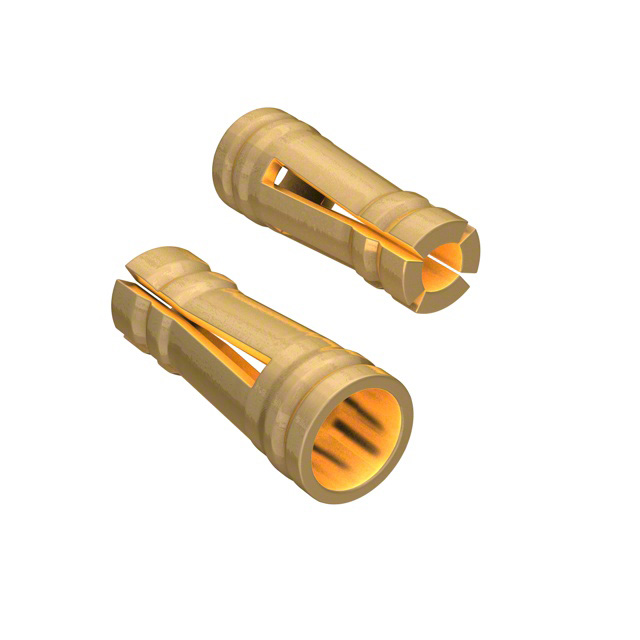

M8134 Series
Manufacturer: TE Connectivity Aerospace, Defense and Marine
Beta
⌘K
CONN PIN RCPT .016-.021 SOLDER
| Part | Accepts Pin Diameter [Max] [diameter] | Accepts Pin Diameter [Min] [diameter] | Accepts Pin Diameter [Min] [diameter] | Accepts Pin Diameter [Max] [diameter] | Contact Finish | Grade | Qualification | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Tail Type | Length - Overall [x] | Length - Overall [x] | Pin Hole Diameter [diameter] | Pin Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Board Thickness | Board Thickness | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Aerospace, Defense and Marine | 0.53 mm | 0.016 in | 0.41 mm | 0.021 in | Gold | Military | MIL-DTL-83505 | 0.76 Ám | 30 Áin | Beryllium Copper | No Tail | 2.39 mm | 0.094 in | 0.66 mm | 0.026 in | 0.041 in | 1.04 mm | -55 °C | 125 °C | 0.76 mm | 0.03 in | Press-Fit |
TE Connectivity Aerospace, Defense and Marine | 0.76 mm | 0.02 " | 0.51 mm | 0.03 " | Gold | Military | MIL-DTL-83505 | 0.76 Ám | 30 Áin | Beryllium Copper | No Tail | 3.45 mm | 0.136 " | 0.97 mm | 0.038 " | 0.058 in | 1.47 mm | -55 °C | 125 °C | 0.76 mm | 0.03 in | Press-Fit |
