THS4302 Series

Catalog

EVAL BOARD FOR THS4302

Part	Current - Supply (Main IC)	Amplifier Type	-3db Bandwidth	Current - Output / Channel	Channels per IC	Board Type	Supplied Contents	Slew Rate	Output Type	Utilized IC / Part	Voltage - Supply, Single/Dual (±) [Max]	Voltage - Supply, Single/Dual (±) [Min]	Voltage - Supply Span (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply Span (Min) [Min]	Mounting Type	Package / Case	Current - Supply	Gain Bandwidth Product	Current - Input Bias	Supplier Device Package	Number of Circuits	Voltage - Input Offset

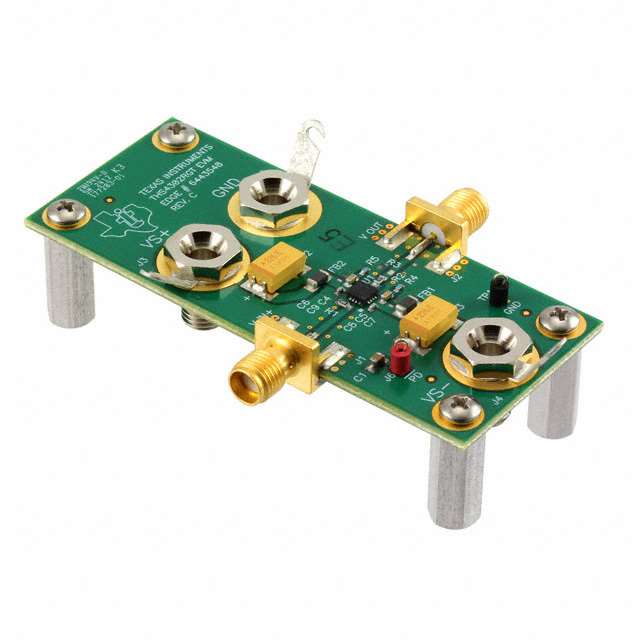

Texas Instruments THS4302EVM	37 mA	General Purpose	2.4 GHz	180 mA	1 - Single	Fully Populated	Board(s)	5500 V/µs	Single-Ended	THS4302	2.5 V 5 V	-1.5 V 3 V
Texas Instruments THS4302RGTR		General Purpose	2.4 GHz	180 mA				5500 V/µs					5 V	85 °C	-40 °C	3 V	Surface Mount	16-VFQFN Exposed Pad	37 mA	12 GHz	7 µA	16-VQFN (3x3)	1	2 mV
Texas Instruments THS4302RGTT		General Purpose	2.4 GHz					5500 V/µs					5 V	85 °C	-40 °C	3 V	Surface Mount	16-VFQFN Exposed Pad	37 mA	12 GHz	7 µA	16-VQFN (3x3)	1	2 mV
Texas Instruments THS4302RGTTG4		General Purpose	2.4 GHz					5500 V/µs					5 V	85 °C	-40 °C	3 V	Surface Mount	16-VFQFN Exposed Pad	37 mA	12 GHz	7 µA	16-VQFN (3x3)	1	2 mV
