TR9CA8000 Series
Manufacturer: GlobTek, Inc.
Beta
⌘K

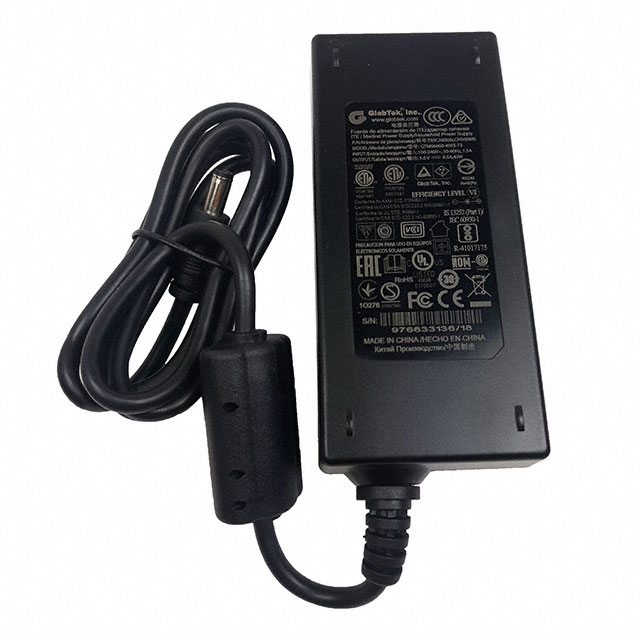

AC/DC DESKTOP ADAPTER 5V 40W
| Part | Current - Output (Max) [Max] | Applications | Voltage - Output | Approval Agency | No Load Power Consumption | Cord Length | Cord Length | Form | Region Utilized | Operating Temperature [Min] | Operating Temperature [Max] | Efficiency | Output Connector [diameter] | Output Connector | Output Connector [x] | Standard Number | Voltage - Input [Max] | Voltage - Input [Min] | Power (Watts) | Input Connector | Input Type | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Polarization |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 GlobTek, Inc. | 8 A | Household Appliances ITE (Commercial) Medical | 5 V | BSMI CB CCC CE cETLus cULus EAC ETL FCC LPS NOM PSE RCM S-Mark UkrSEPRO UL VCCI | 75 mW | 1.2 m | 47.2 in | Desktop (Class I) | International | -20 ░C | 40 °C | Level VI | 2.5 mm 5.5 mm | Barrel Plug | 11.5 mm | 1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1 | 264 VAC | 90 VAC | 40 W | IEC 320-C14 | Cord (Sold Separately) | 34.2 mm | 1.35 in | 53.5 mm | 4.63 in | 117.5 mm | 2.11 in | Positive Center |
