853-13 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN RCPT 4POS 0.05 GOLD PCB

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Contact Shape	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing - Mating	Row Spacing - Mating	Insulation Height	Insulation Height [z]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Mounting Type	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Number of Rows [custom]	Fastening Type	Material Flammability Rating	Number of Positions Loaded	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Color	Contact Finish - Mating	Number of Positions	Contact Type	Current Rating (Amps)

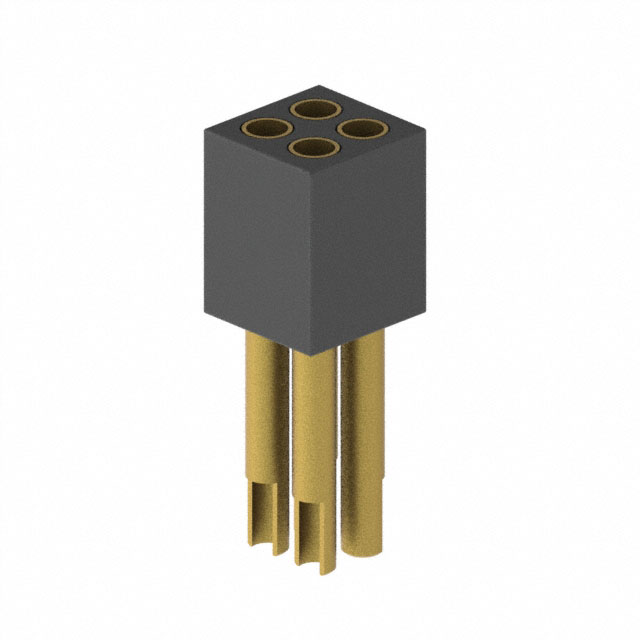

Mill-Max Manufacturing Corp. 853-13-004-10-003000	10 Áin	0.25 çm	Thermoplastic	Circular	Beryllium Copper	-55 C	125 °C	0.05 in	1.27 mm	3.78 mm	0.149 in	0.76 Ám	30 Áin	Receptacle	Through Hole	1.27 mm	0.05 in	Gold	2	Push-Pull	UL94 V-0	All	4.85 mm	0.191 in	Black	Gold	4	Female Socket	3 A

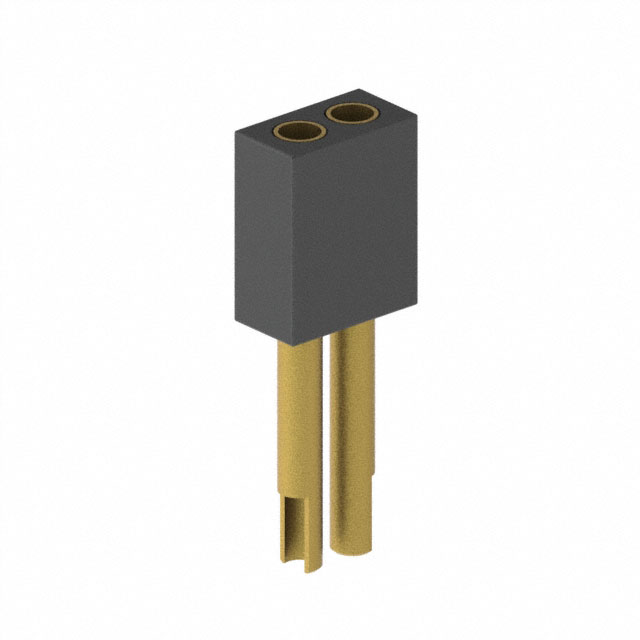

Mill-Max Manufacturing Corp. 853-13-002-10-003000	10 Áin	0.25 çm	Thermoplastic	Circular	Beryllium Copper	-55 C	125 °C	0.05 in	1.27 mm	3.78 mm	0.149 in	0.76 Ám	30 Áin	Receptacle	Through Hole			Gold	2	Push-Pull	UL94 V-0	All	4.85 mm	0.191 in	Black	Gold	2	Female Socket	3 A
Mill-Max Manufacturing Corp. 853-13-098-10-003000	10 Áin	0.25 çm	Glass Filled Nylon 4/6 Polyamide (PA46)	Circular	Beryllium Copper	-55 C	125 °C	0.05 in	1.27 mm	3.78 mm	0.149 in	0.076 µm	3 µin	Socket	Through Hole	1.27 mm	0.05 in	Gold	2	Push-Pull	UL94 V-0	All	4.85 mm	0.191 in	Black	Gold	98	Female Socket	3 A
Mill-Max Manufacturing Corp. 853-13-058-10-003000	10 Áin	0.25 çm	Glass Filled Nylon 4/6 Polyamide (PA46)	Circular	Beryllium Copper	-55 C	125 °C	0.05 in	1.27 mm	3.78 mm	0.149 in	0.076 µm	3 µin	Socket	Through Hole	1.27 mm	0.05 in	Gold	2	Push-Pull	UL94 V-0	All	4.85 mm	0.191 in	Black	Gold	58	Female Socket	3 A
Mill-Max Manufacturing Corp. 853-13-100-10-003000	10 Áin	0.25 çm	Glass Filled Nylon 4/6 Polyamide (PA46)	Circular	Beryllium Copper	-55 C	125 °C	0.05 in	1.27 mm	3.78 mm	0.149 in	0.076 µm	3 µin	Socket	Through Hole	1.27 mm	0.05 in	Gold	2	Push-Pull	UL94 V-0	All	4.85 mm	0.191 in	Black	Gold	100	Female Socket	3 A

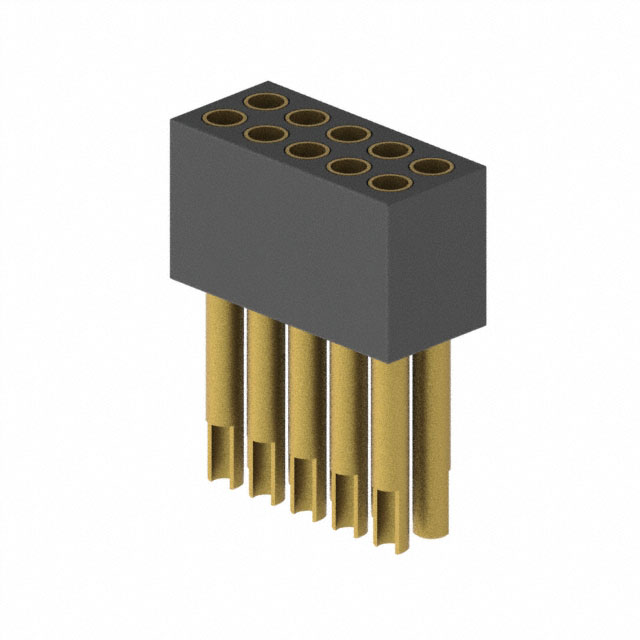

Mill-Max Manufacturing Corp. 853-13-010-10-003000	10 Áin	0.25 çm	Thermoplastic	Circular	Beryllium Copper	-55 C	125 °C	0.05 in	1.27 mm	3.78 mm	0.149 in	0.76 Ám	30 Áin	Receptacle	Through Hole	1.27 mm	0.05 in	Gold	2	Push-Pull	UL94 V-0	All	4.85 mm	0.191 in	Black	Gold	10	Female Socket	3 A

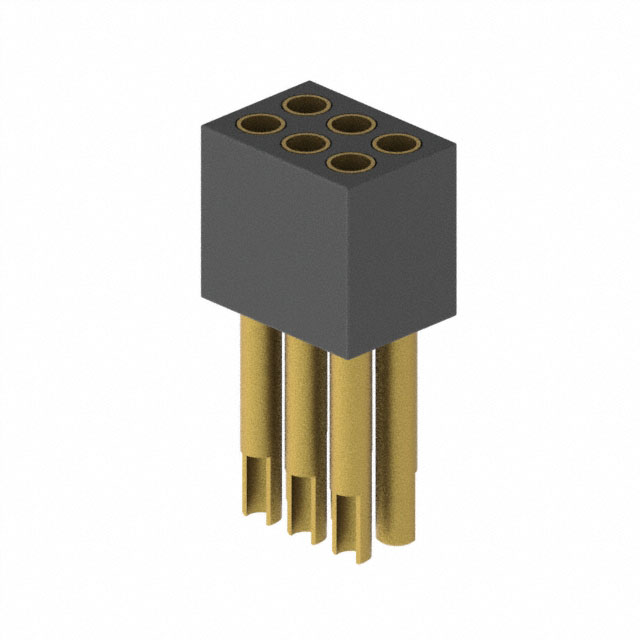

Mill-Max Manufacturing Corp. 853-13-006-10-003000	10 Áin	0.25 çm	Thermoplastic	Circular	Beryllium Copper	-55 C	125 °C	0.05 in	1.27 mm	3.78 mm	0.149 in	0.76 Ám	30 Áin	Receptacle	Through Hole	1.27 mm	0.05 in	Gold	2	Push-Pull	UL94 V-0	All	4.85 mm	0.191 in	Black	Gold	6	Female Socket	3 A

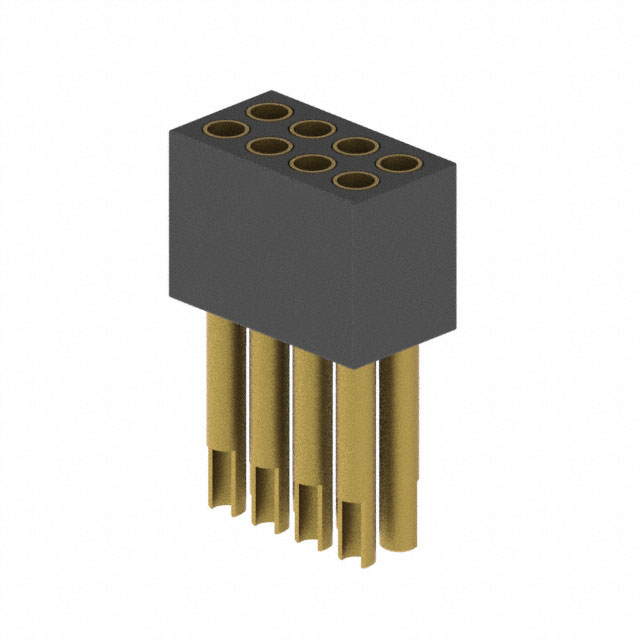

Mill-Max Manufacturing Corp. 853-13-008-10-003000	10 Áin	0.25 çm	Thermoplastic	Circular	Beryllium Copper	-55 C	125 °C	0.05 in	1.27 mm	3.78 mm	0.149 in	0.76 Ám	30 Áin	Receptacle	Through Hole	1.27 mm	0.05 in	Gold	2	Push-Pull	UL94 V-0	All	4.85 mm	0.191 in	Black	Gold	8	Female Socket	3 A

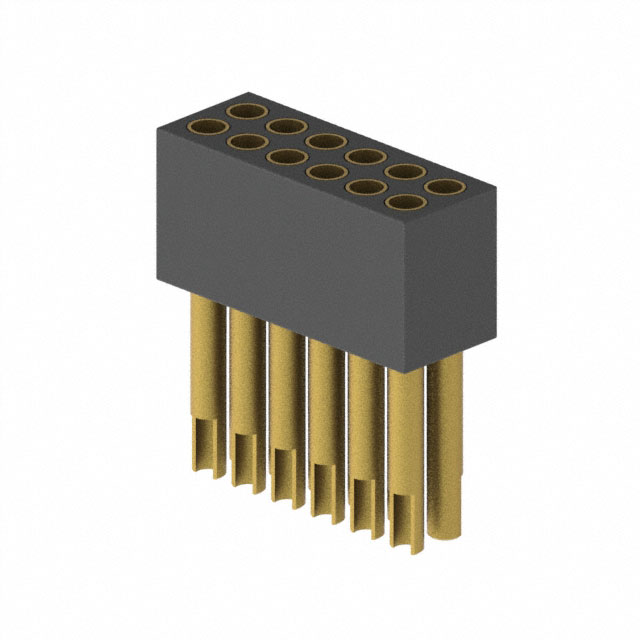

Mill-Max Manufacturing Corp. 853-13-012-10-003000	10 Áin	0.25 çm	Thermoplastic	Circular	Beryllium Copper	-55 C	125 °C	0.05 in	1.27 mm	3.78 mm	0.149 in	0.76 Ám	30 Áin	Receptacle	Through Hole	1.27 mm	0.05 in	Gold	2	Push-Pull	UL94 V-0	All	4.85 mm	0.191 in	Black	Gold	12	Female Socket	3 A
Mill-Max Manufacturing Corp. 853-13-040-10-003000	10 Áin	0.25 çm	Glass Filled Nylon 4/6 Polyamide (PA46)	Circular	Beryllium Copper	-55 C	125 °C	0.05 in	1.27 mm	3.78 mm	0.149 in	0.076 µm	3 µin	Socket	Through Hole	1.27 mm	0.05 in	Gold	2	Push-Pull	UL94 V-0	All	4.85 mm	0.191 in	Black	Gold	40	Female Socket	3 A
