MC33275 Series

LDO Regulator, 300 mA, High PSRR

Catalog

LDO Regulator, 300 mA, High PSRR

Part	Voltage Dropout (Max) [Max]	Voltage - Output (Min/Fixed)	PSRR	Number of Regulators	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Output Configuration	Current - Quiescent (Iq)	Output Type	Mounting Type	Protection Features	Supplier Device Package	Voltage - Input (Max) [Max]	Current - Output	Package / Case [y]	Package / Case [x]

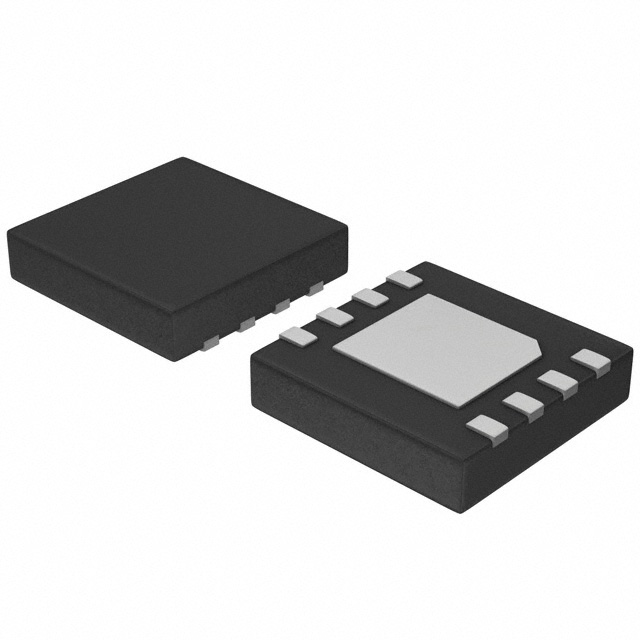

ON Semiconductor MC33275MN-3.3R2G	0.5 V	3.3 V	75 dB	1	8-VDFN Exposed Pad	125 °C	-40 °C	Positive	200 µA	1.81 mOhm	Surface Mount	Over Current Over Temperature	8-DFN (4x4)	13 V	300 mA
ON Semiconductor MC33275D-3.3R2	0.5 V	3.3 V	75 dB	1	8-SOIC	125 °C	-40 °C	Positive	200 µA	1.81 mOhm	Surface Mount	Over Current Over Temperature	8-SOIC	13 V	300 mA	3.9 mm	0.154 in
ON Semiconductor MC33275DT-5.0RKG	0.5 V	5 V	75 dB	1	DPAK (2 Leads + Tab) SC-63 TO-252-3	125 °C	-40 °C	Positive	200 µA	1.81 mOhm	Surface Mount	Over Current Over Temperature	DPAK	13 V	300 mA
ON Semiconductor MC33275D-2.5R2G	0.5 V	2.5 V	75 dB	1	8-SOIC	125 °C	-40 °C	Positive	200 µA	1.81 mOhm	Surface Mount	Over Current Over Temperature	8-SOIC	13 V	300 mA	3.9 mm	0.154 in
ON Semiconductor MC33275D-2.5G	0.5 V	2.5 V	75 dB	1	8-SOIC	125 °C	-40 °C	Positive	200 µA	1.81 mOhm	Surface Mount	Over Current Over Temperature	8-SOIC	13 V	300 mA	3.9 mm	0.154 in
ON Semiconductor MC33275DT-5.0RK	0.5 V	5 V	75 dB	1	DPAK (2 Leads + Tab) SC-63 TO-252-3	125 °C	-40 °C	Positive	200 µA	1.81 mOhm	Surface Mount	Over Current Over Temperature	DPAK	13 V	300 mA
ON Semiconductor MC33275D-3.3R2G	0.5 V	3.3 V	75 dB	1	8-SOIC	125 °C	-40 °C	Positive	200 µA	1.81 mOhm	Surface Mount	Over Current Over Temperature	8-SOIC	13 V	300 mA	3.9 mm	0.154 in
ON Semiconductor MC33275D-5.0G	0.5 V	5 V	75 dB	1	8-SOIC	125 °C	-40 °C	Positive	200 µA	1.81 mOhm	Surface Mount	Over Current Over Temperature	8-SOIC	13 V	300 mA	3.9 mm	0.154 in
ON Semiconductor MC33275ST-3.3T3	0.5 V	3.3 V	75 dB	1	TO-261-4 TO-261AA	125 °C	-40 °C	Positive	200 µA	1.81 mOhm	Surface Mount	Over Current Over Temperature	SOT-223 (TO-261)	13 V	300 mA
ON Semiconductor MC33275D-2.5	0.5 V	2.5 V	75 dB	1	8-SOIC	125 °C	-40 °C	Positive	200 µA	1.81 mOhm	Surface Mount	Over Current Over Temperature	8-SOIC	13 V	300 mA	3.9 mm	0.154 in

Catalog

LDO Regulator, 300 mA, High PSRR

Key Features

• Low Quiescent Current (125mA)

• Low Input-to-Output Voltage Differential of 25 mV at IO= 10mA, and 260 mV at IO= 300 mA

• Extremely Tight Line and Load Regulation

• Stable with Output Capacitance of only 0.33mF for 2.5 V Output Voltage

• Internal Current and Thermal Limiting

Description

The MC33275 series are micropower low dropout (LDO) linear voltage regulators available in a wide variety of output voltages as well as packages, DPAK, SOT-223, and SOP-8 surface mount packages. These devices feature a very low quiescent current and are capable of supplying output currents up to 300 mA. Internal current and thermal limiting protection are provided by the presence of a short circuit at the output and an internal thermal shutdown circuit.The MC33275 is available as a MC33375 which includes an On/Off control.Due to the low input-to-output voltage differential and bias current specifications, these devices are ideally suited for battery powered computer, consumer, and industrial equipment where an extension of useful battery life is desirable.
