CSD88599Q5DC Series

60-V, N channel synchronous buck NexFET™ power MOSFET, SON 5 mm x 6 mm Dual-Cool™ power block, 40 A

Catalog

60-V, N channel synchronous buck NexFET™ power MOSFET, SON 5 mm x 6 mm Dual-Cool™ power block, 40 A

Part	Gate Charge (Qg) (Max) @ Vgs [Max]	Supplier Device Package	Rds On (Max) @ Id, Vgs	Power - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Configuration	Drain to Source Voltage (Vdss)	Technology	Mounting Type	Package / Case	Vgs(th) (Max) @ Id

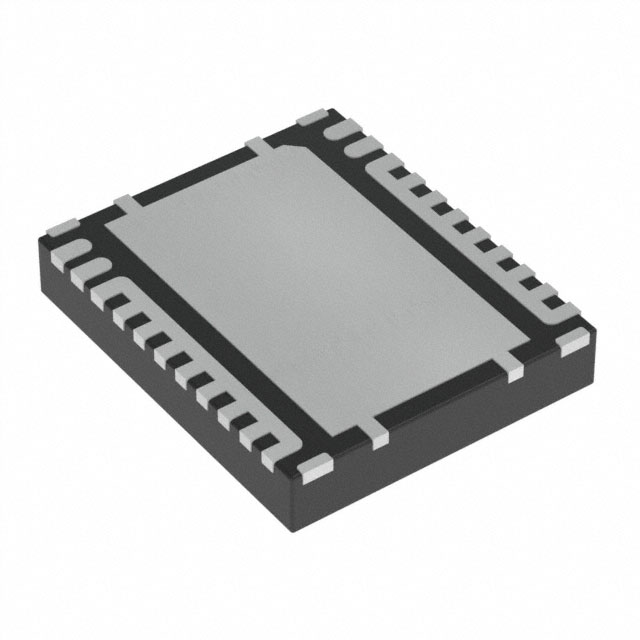

Texas Instruments CSD88599Q5DC	27 nC	22-VSON-CLIP (5x6)	2.1 mOhm	12 W	-55 °C	150 °C	2 N-Channel (Half Bridge)	60 V	MOSFET (Metal Oxide)	Surface Mount	22-PowerTFDFN	2.5 V
Texas Instruments CSD88599Q5DCT	27 nC	22-VSON-CLIP (5x6)	2.1 mOhm	12 W	-55 °C	150 °C	2 N-Channel (Half Bridge)	60 V	MOSFET (Metal Oxide)	Surface Mount	22-PowerTFDFN	2.5 V

Catalog

60-V, N channel synchronous buck NexFET™ power MOSFET, SON 5 mm x 6 mm Dual-Cool™ power block, 40 A

Key Features

• Half-bridge power blockHigh-density SON 5mm × 6mm footprintLow RDS(ON) for minimized conduction Losses3.0W PLoss at 30ADualCool™ thermally Enhanced PackageUltra-low-inductance packageRoHS compliantHalogen freeLead-free terminal platingHalf-bridge power blockHigh-density SON 5mm × 6mm footprintLow RDS(ON) for minimized conduction Losses3.0W PLoss at 30ADualCool™ thermally Enhanced PackageUltra-low-inductance packageRoHS compliantHalogen freeLead-free terminal plating

Description

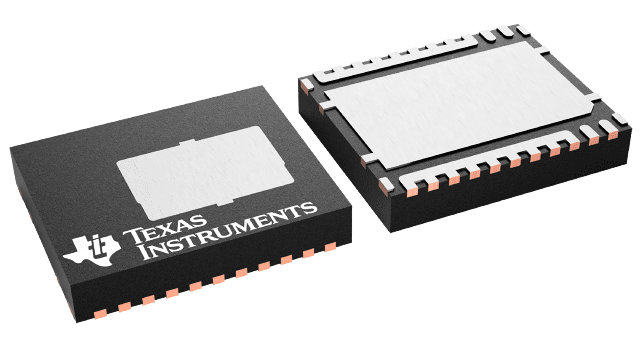

The CSD88599Q5DC 60V power block is an optimized design for high-current motor control applications, such as handheld, cordless garden and power tools. This device utilizes TI’s stacked die technology in order to minimize parasitic inductances while offering a complete half bridge in a space saving thermally enhanced DualCool™ 5mm × 6mm package. With an exposed metal top, this power block device allows for simple heat sink application to draw heat out through the top of the package and away from the PCB, for superior thermal performance at the higher currents demanded by many motor control applications. The CSD88599Q5DC 60V power block is an optimized design for high-current motor control applications, such as handheld, cordless garden and power tools. This device utilizes TI’s stacked die technology in order to minimize parasitic inductances while offering a complete half bridge in a space saving thermally enhanced DualCool™ 5mm × 6mm package. With an exposed metal top, this power block device allows for simple heat sink application to draw heat out through the top of the package and away from the PCB, for superior thermal performance at the higher currents demanded by many motor control applications.
