745-132 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FML 132POS 0.100

Part	Termination Rows [custom]	Material - Insulation	Gender	Number of Positions	Color	Contact Finish	Number of Positions/Bay/Row	Contact Material	Card Thickness [Max]	Card Thickness [Min]	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Termination	Mounting Type	Pitch	Pitch	Number of Rows [custom]	Card Type	Read Out
EDAC Inc. 745-132-522-206	2	Polyester Thermoplastic	Female	132	Black	Gold	66	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	-40 C	105 ░C	30 Áin	0.76 Ám	Press-Fit	Through Hole	0.1 "	2.54 mm	2	Non Specified - Dual Edge	Dual
EDAC Inc. 745-132-560-206	2	Polyester Thermoplastic	Female	132	Black	Gold	66	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever Make Before Break	-40 C	105 ░C	30 Áin	0.76 Ám	Press-Fit	Through Hole	0.1 "	2.54 mm	2	Non Specified - Dual Edge	Dual
EDAC Inc. 745-132-525-201	2	Polyester Thermoplastic	Female	132	Black	Gold	66	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	-40 C	105 ░C	30 Áin	0.76 Ám	Press-Fit	Through Hole	0.1 "	2.54 mm	2	Non Specified - Dual Edge	Dual
EDAC Inc. 745-132-541-206	2	Polyester Thermoplastic	Female	132	Black	Gold	66	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	-40 C	105 ░C	30 Áin	0.76 Ám	Press-Fit Wire Wrap	Through Hole	0.1 "	2.54 mm	2	Non Specified - Dual Edge	Dual

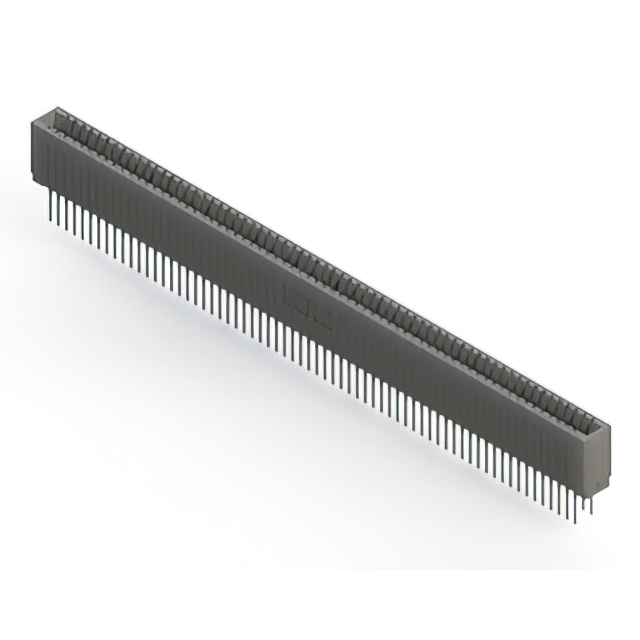

EDAC Inc. 745-132-522-201	2	Polyester Thermoplastic	Female	132	Black	Gold	66	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	-40 C	105 ░C	30 Áin	0.76 Ám	Press-Fit	Through Hole	0.1 "	2.54 mm	2	Non Specified - Dual Edge	Dual
EDAC Inc. 745-132-525-206	2	Polyester Thermoplastic	Female	132	Black	Gold	66	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	-40 C	105 ░C	30 Áin	0.76 Ám	Press-Fit	Through Hole	0.1 "	2.54 mm	2	Non Specified - Dual Edge	Dual
EDAC Inc. 745-132-545-201	2	Polyester Thermoplastic	Female	132	Black	Gold	66	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	-40 C	105 ░C	30 Áin	0.76 Ám	Press-Fit	Through Hole	0.1 "	2.54 mm	2	Non Specified - Dual Edge	Dual
EDAC Inc. 745-132-545-206	2	Polyester Thermoplastic	Female	132	Black	Gold	66	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	-40 C	105 ░C	30 Áin	0.76 Ám	Press-Fit	Through Hole	0.1 "	2.54 mm	2	Non Specified - Dual Edge	Dual
