2371437 Series

Catalog

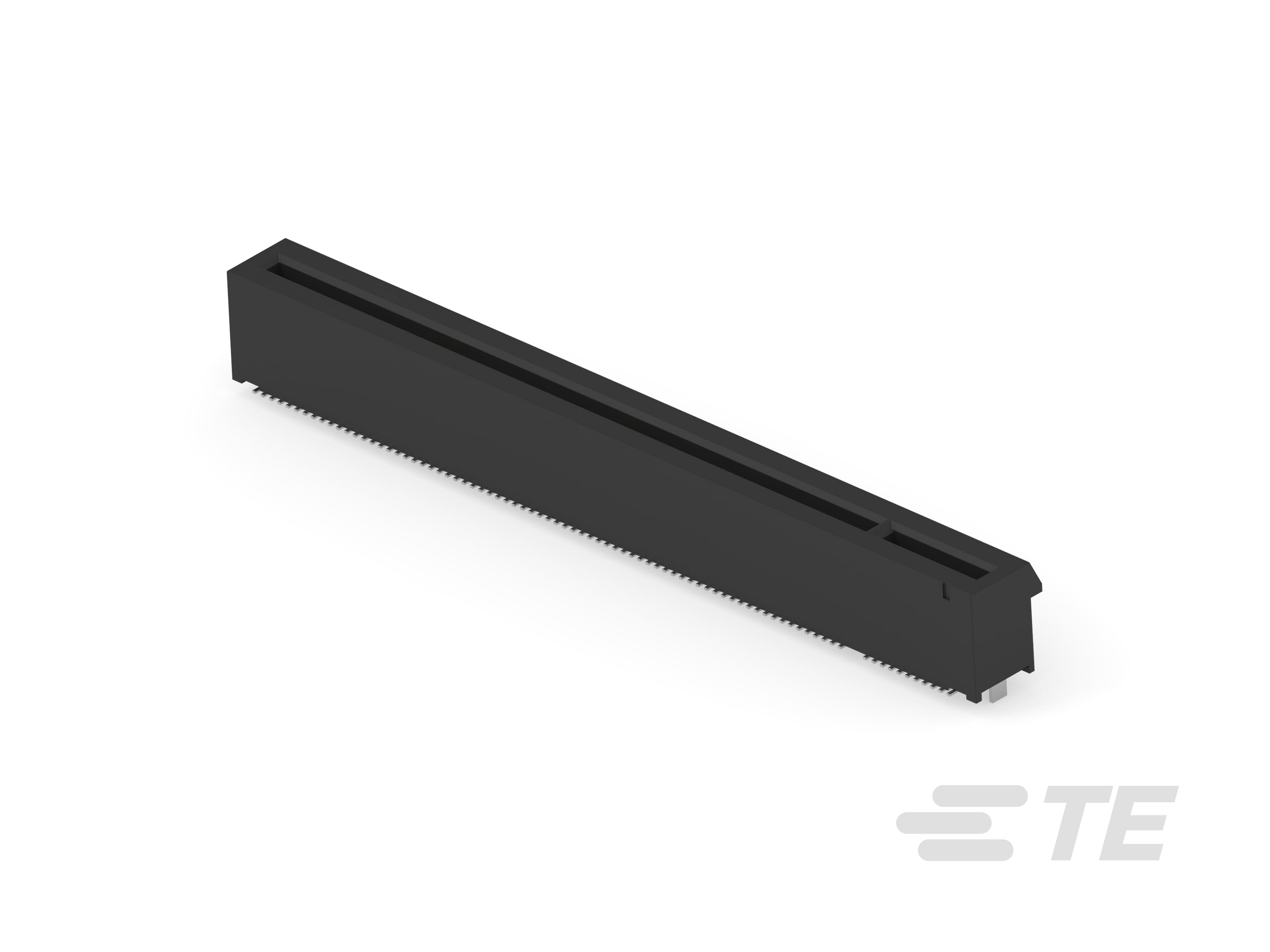

PCIE G5 CON,SMT,1.5TAB,164P,30",10 ML,HT

Part	Gender	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Read Out	Features	Number of Positions	Card Type	Color	Termination	Pitch [x]	Pitch [x]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Termination Rows	Number of Rows	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Contact Finish Thickness
TE Connectivity Raychem Cable Protection 5-2371437-4	Female	Surface Mount	0.76 Ám	30 Áin	Dual	Board Guide GEN5 Locking Ramp Solder Retention	164	PCI Express™	Black	Solder	0.039 in	1 mm	71	11	85 °C	-40 °C	2	2

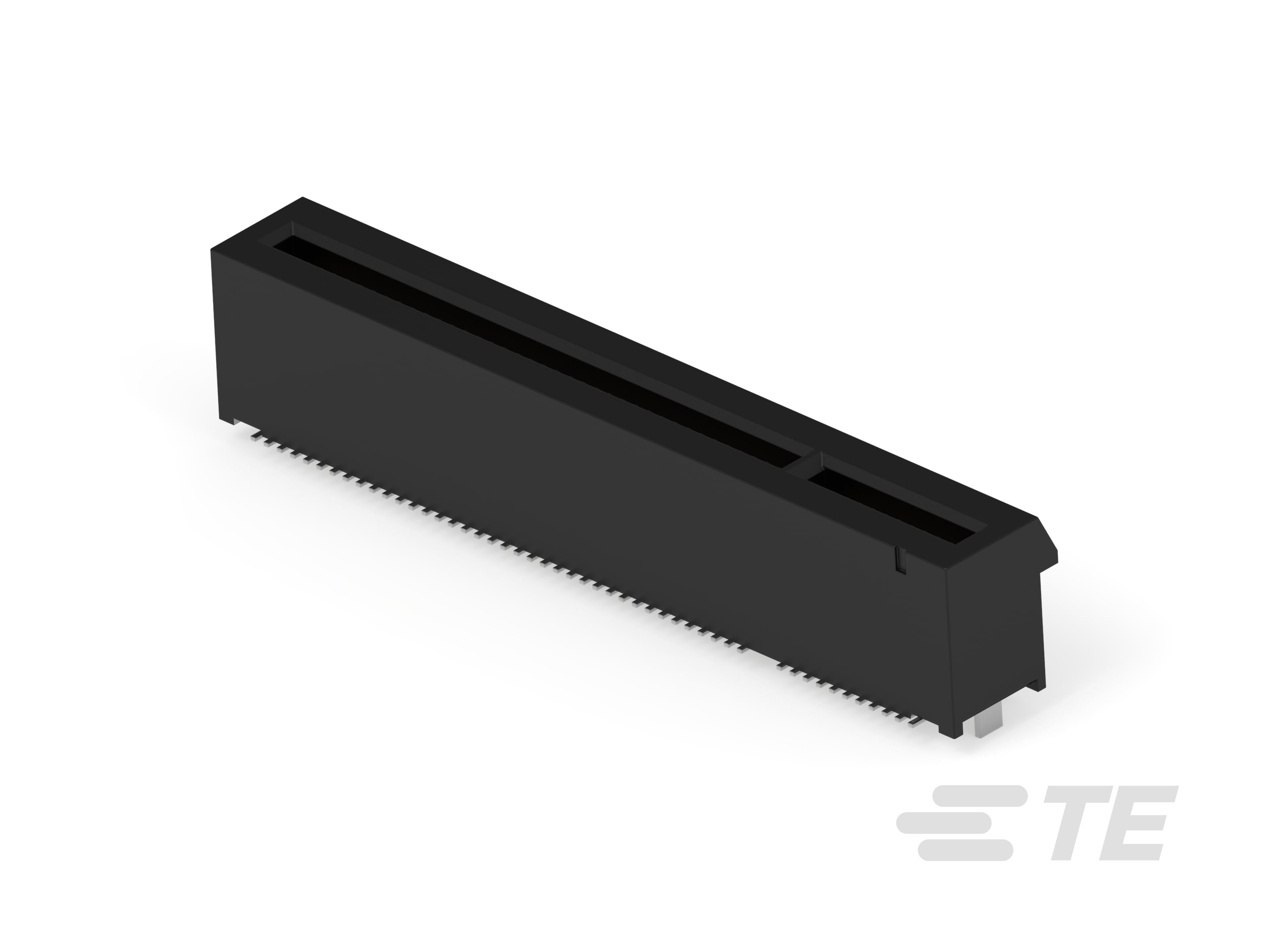

TE Connectivity Raychem Cable Protection 1-2371437-3	Female	Surface Mount	0.38 µm	15 µin	Dual	Board Guide GEN5 Locking Ramp Solder Retention	98	PCI Express™	Black	Solder	0.039 in	1 mm			85 °C	-40 °C	2	2	38	11
TE Connectivity Raychem Cable Protection 2371437-3	Female	Surface Mount			Dual	Board Guide GEN5 Locking Ramp Solder Retention	98	PCI Express™	Black	Solder	0.039 in	1 mm			85 °C	-40 °C	2	2	38	11	Flash
TE Connectivity Raychem Cable Protection 5-2371437-3	Female	Surface Mount	0.76 Ám	30 Áin	Dual	Board Guide GEN5 Locking Ramp Solder Retention	98	PCI Express™	Black	Solder	0.039 in	1 mm			85 °C	-40 °C	2	2	38	11
TE Connectivity Raychem Cable Protection 3-2371437-7	Female	Surface Mount			Dual	Board Guide GEN5 Locking Ramp Solder Retention	98	PCI Express™	Black	Solder	0.039 in	1 mm			85 °C	-40 °C	2	2	38	11	Flash
