794679 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN HEADER R/A 2POS

Part	Number of Rows [custom]	Contact Type	Row Spacing - Mating	Row Spacing - Mating	Number of Positions	Contact Shape	Contact Finish - Mating	Style	Features	Insulation Color	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Connector Type	Fastening Type	Termination	Applications	Voltage Rating	Material Flammability Rating	Insulation Material	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Shrouding	Contact Finish - Post	Mounting Type	Pitch - Mating	Pitch - Mating

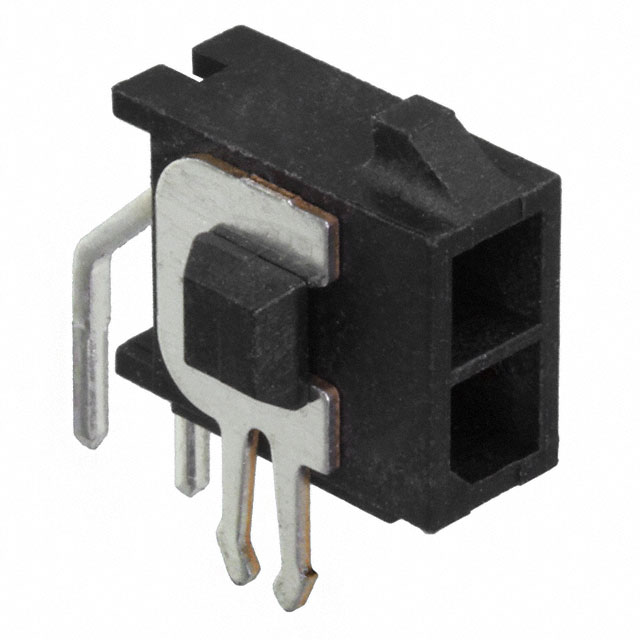

TE Connectivity AMP Connectors 794679-2	2	Male Pin	0.118 in	3 mm	2	Square	Gold	Board to Cable/Wire	Board Lock	Black	2.54 µm	100 µin	Header	Locking Ramp	Solder	General Purpose	250 V	UL94 V-0	Nylon Polyamide (PA)	All	-40 C	105 ░C	Varies by Wire Gauge	0.29 in	7.37 mm	0.76 Ám	30 Áin	Brass	Shrouded - 4 Wall	Tin-Lead	Right Angle Through Hole

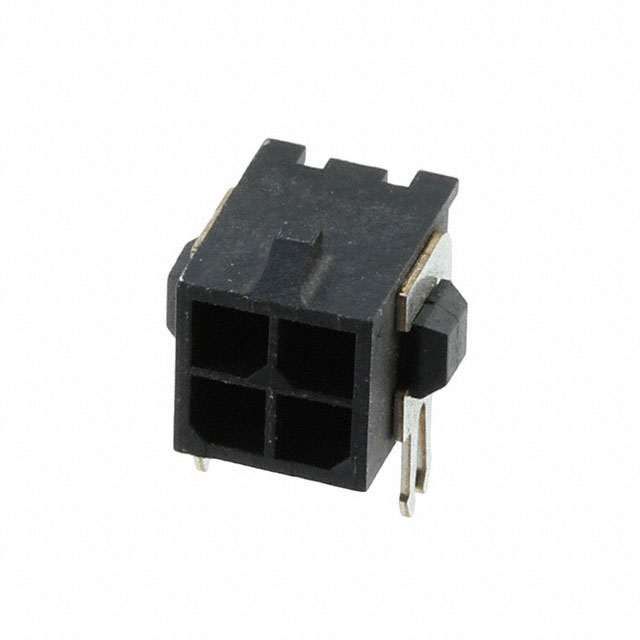

TE Connectivity AMP Connectors 794679-4	2	Male Pin	0.118 in	3 mm	4	Square	Gold Gold or Gold-Palladium	Board to Cable/Wire	Board Lock	Black	2.54 µm	100 µin	Header	Locking Ramp	Solder	General Purpose	250 V	UL94 V-0	Nylon Polyamide (PA)	All	-40 C	105 ░C	Varies by Wire Gauge	0.29 in	7.37 mm	0.76 Ám	30 Áin	Brass	Shrouded - 4 Wall	Tin-Lead	Right Angle Through Hole	3 mm	0.118 in

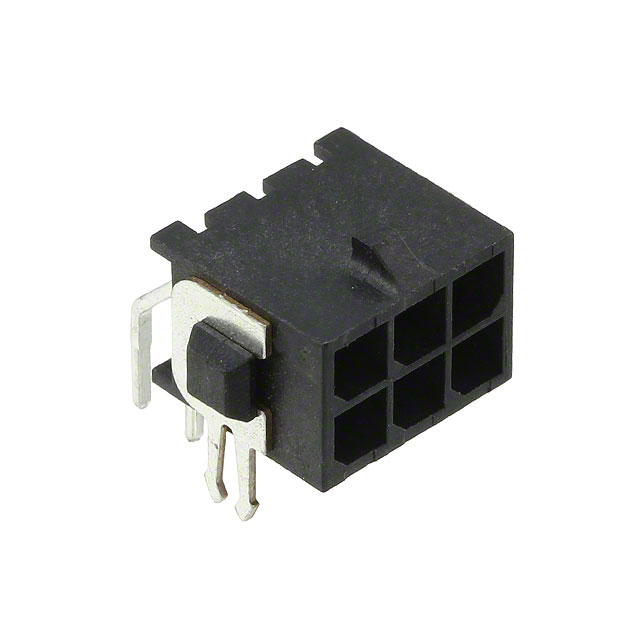

TE Connectivity AMP Connectors 794679-6	2	Male Pin	0.118 in	3 mm	6	Square	Gold Gold or Gold-Palladium	Board to Cable/Wire	Board Lock	Black	2.54 µm	100 µin	Header	Locking Ramp	Solder	General Purpose	250 V	UL94 V-0	Nylon Polyamide (PA)	All	-40 C	105 ░C	Varies by Wire Gauge	0.29 in	7.37 mm	0.76 Ám	30 Áin	Brass	Shrouded - 4 Wall	Tin-Lead	Right Angle Through Hole	3 mm	0.118 in
TE Connectivity AMP Connectors 5-794679-4	2	Male Pin	0.118 in	3 mm	24	Square	Gold Gold or Gold-Palladium	Board to Cable/Wire	Board Lock	Black	2.54 µm	100 µin	Header	Locking Ramp	Solder	General Purpose	250 V	UL94 V-0	Nylon Polyamide (PA)	All	-40 C	105 ░C	Varies by Wire Gauge	0.29 in	7.37 mm	0.76 Ám	30 Áin	Brass	Shrouded - 4 Wall	Tin	Right Angle Through Hole	3 mm	0.118 in

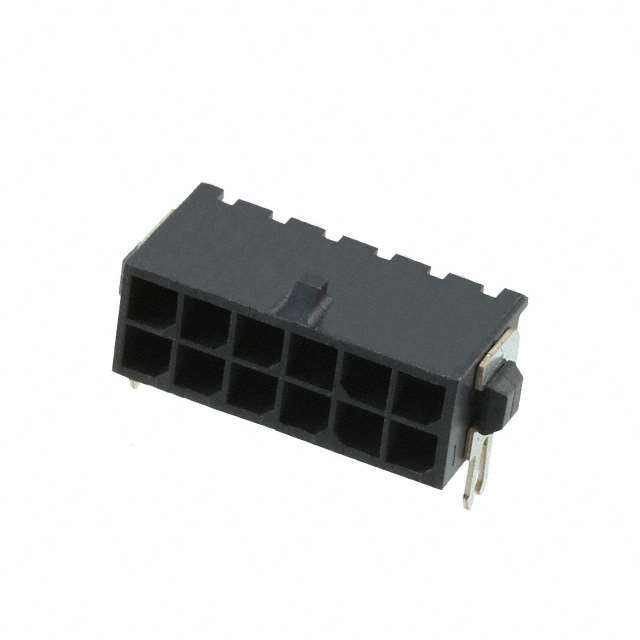

TE Connectivity AMP Connectors 4-794679-2	2	Male Pin	0.118 in	3 mm	12	Square	Gold Gold or Gold-Palladium	Board to Cable/Wire	Board Lock	Black	2.54 µm	100 µin	Header	Locking Ramp	Solder	General Purpose	250 V	UL94 V-0	Nylon Polyamide (PA)	All	-40 C	105 ░C	Varies by Wire Gauge	0.29 in	7.37 mm	0.76 Ám	30 Áin	Brass	Shrouded - 4 Wall	Tin	Right Angle Through Hole	3 mm	0.118 in
TE Connectivity AMP Connectors 4-794679-6	2	Male Pin	0.118 in	3 mm	16	Square	Gold Gold or Gold-Palladium	Board to Cable/Wire	Board Lock	Black	2.54 µm	100 µin	Header	Locking Ramp	Solder	General Purpose	250 V	UL94 V-0	Nylon Polyamide (PA)	All	-40 C	105 ░C	Varies by Wire Gauge	0.29 in	7.37 mm	0.76 Ám	30 Áin	Brass	Shrouded - 4 Wall	Tin	Right Angle Through Hole	3 mm	0.118 in
