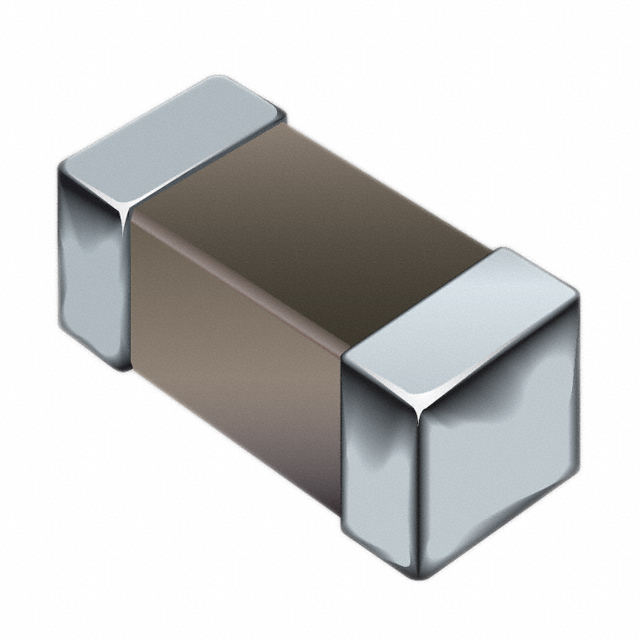

CS160808 Series

Catalog

INDUCTOR,FERRITE,1.2UH,10+% TOL,10-% TOL,0603-CASE

Part	Material - Core	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current Rating (Amps)	Shielding	Q @ Freq [custom]	Q @ Freq [custom]	Frequency - Self Resonant	Operating Temperature [Min]	Operating Temperature [Max]	Type	Package / Case	Package / Case	Supplier Device Package	Inductance Frequency - Test	Inductance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Tolerance	Q @ Freq	DC Resistance (DCR)	DC Resistance (DCR) [Max]
Bourns Inc. CS160808-1R2K	Ferrite	Surface Mount	0.95 mm	0.037 in	100 mA	Shielded	10 MHz	50	60 MHz	-55 C	125 °C	Multilayer	1608 Metric	0603	0603 (1608 Metric)	10 MHz	1.2 µH	0.031 in	1.6 mm	0.8 mm	0.063 "	10 %
Bourns Inc. CS160808-R33K	Ferrite	Surface Mount	0.95 mm	0.037 in	150 mA	Shielded			125 MHz	-55 C	125 °C	Multilayer	1608 Metric	0603	0603 (1608 Metric)	25 MHz	330 nH	0.031 in	1.6 mm	0.8 mm	0.063 "	10 %	30	550 mOhm
Bourns Inc. CS160808-68NK	Ferrite	Surface Mount	0.95 mm	0.037 in	0.2 A	Shielded			250 MHz	-55 C	125 °C	Multilayer	1608 Metric	0603	0603 (1608 Metric)	50 MHz	68 nH	0.031 in	1.6 mm	0.8 mm	0.063 "	10 %	45 50 MHz	200 mOhm
Bourns Inc. CS160808-1R8K	Ferrite	Surface Mount	0.95 mm	0.037 in	50 mA	Shielded	10 MHz	50	50 MHz	-55 C	125 °C	Multilayer	1608 Metric	0603	0603 (1608 Metric)	10 MHz	1.8 µH	0.031 in	1.6 mm	0.8 mm	0.063 "	10 %			750 mOhm
Bourns Inc. CS160808-R82K	Ferrite	Surface Mount	0.95 mm	0.037 in	100 mA	Shielded			75 MHz	-55 C	125 °C	Multilayer	1608 Metric	0603	0603 (1608 Metric)	25 MHz	820 nH	0.031 in	1.6 mm	0.8 mm	0.063 "	10 %	30		1.4 Ohm
Bourns Inc. CS160808-R12K	Ferrite	Surface Mount	0.95 mm	0.037 in	0.2 A	Shielded			205 MHz	-55 C	125 °C	Multilayer	1608 Metric	0603	0603 (1608 Metric)	25 MHz	120 nH	0.031 in	1.6 mm	0.8 mm	0.063 "	10 %	30		300 mOhm
Bourns Inc. CS160808-1R5K	Ferrite	Surface Mount	0.95 mm	0.037 in	50 mA	Shielded	10 MHz	50	55 MHz	-55 C	125 °C	Multilayer	1608 Metric	0603	0603 (1608 Metric)	10 MHz	1.5 µH	0.031 in	1.6 mm	0.8 mm	0.063 "	10 %			650 mOhm
Bourns Inc. CS160808-2R7K	Ferrite	Surface Mount	0.95 mm	0.037 in	50 mA	Shielded	10 MHz	50	40 MHz	-55 C	125 °C	Multilayer	1608 Metric	0603	0603 (1608 Metric)	10 MHz	2.7 µH	0.031 in	1.6 mm	0.8 mm	0.063 "	10 %			1 Ohm
Bourns Inc. CS160808-2R2K	Ferrite	Surface Mount	0.95 mm	0.037 in	50 mA	Shielded	10 MHz	50	45 MHz	-55 C	125 °C	Multilayer	1608 Metric	0603	0603 (1608 Metric)	10 MHz	2.2 µH	0.031 in	1.6 mm	0.8 mm	0.063 "	10 %
Bourns Inc. CS160808-R22K	Ferrite	Surface Mount	0.95 mm	0.037 in	0.2 A	Shielded			150 MHz	-55 C	125 °C	Multilayer	1608 Metric	0603	0603 (1608 Metric)	25 MHz	220 nH	0.031 in	1.6 mm	0.8 mm	0.063 "	10 %	30		400 mOhm
