KJA6T Series

Catalog

CONN PLUG MALE 22POS GOLD CRIMP

Part	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material	Mounting Type	Shell Finish	Orientation	Termination	Connector Type	Contact Finish - Mating	Primary Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Size - Insert [Max] [custom]	Shell Size - Insert [Min] [custom]	Shielding	Fastening Type	Ingress Protection	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Color	Type	Insert Material	Contact Type	Features	Contact Shape	Contact Size	Housing Color	Shell Size - Insert	Note	Contact Size

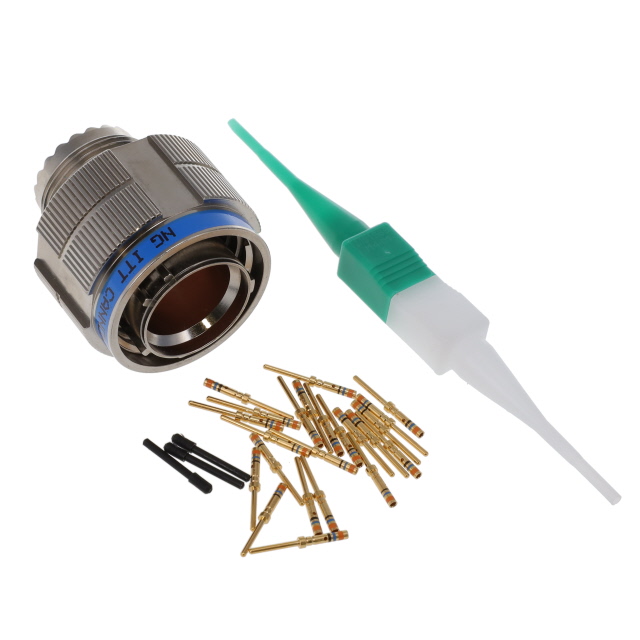

ITT Cannon, LLC KJA6T13F35PN	22	-65 ░C	200 °C	Aluminum Alloy	Free Hanging (In-Line)	Electroless Nickel	N (Normal)	Crimp	Plug Male Pins	Gold	Metal	50 µin	1.27 µm	35	13	Shielded	Threaded	Environment Resistant

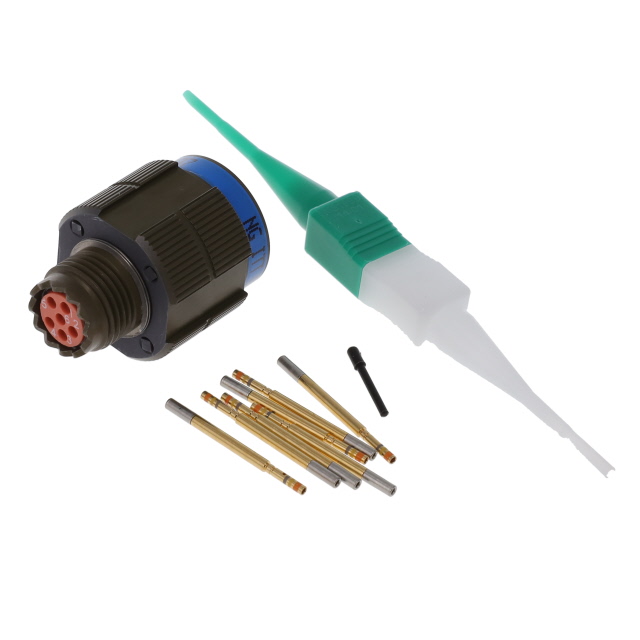

ITT Cannon, LLC KJA6T9W35SN	6	-65 ░C	175 °C	Aluminum Alloy	Free Hanging (In-Line)	Olive Drab Cadmium	N (Normal)	Crimp	Plug Female Sockets	Gold	Metal	50 µin	1.27 µm			Shielded	Threaded	Environment Resistant	35	9	Olive Drab
ITT Cannon, LLC KJA6T17F6SNL50	6	-65 ░C	200 °C	Aluminum Alloy	Free Hanging (In-Line)	Electroless Nickel	N (Normal)		Plug Housing							Shielded	Threaded	Environment Resistant				For Female Sockets	Plastic	Crimp	Coupling Nut	Circular	12	Silver	17-6	Contacts Not Included
ITT Cannon, LLC KJA6T25W8SNL	8	-65 ░C	175 °C	Aluminum Alloy	Free Hanging (In-Line)	Cadmium over Electroless Nickel	N (Normal)		Plug Housing							Shielded	Threaded	Environment Resistant	8	25		For Female Sockets	Plastic	Crimp	Coupling Nut	Circular		Olive Drab		Contacts Not Included	8 Coax Twinax
ITT Cannon, LLC KJA6T21W75PEL	4	-65 ░C	175 °C	Aluminum Alloy	Free Hanging (In-Line)	Cadmium over Electroless Nickel	E		Plug Housing							Shielded	Threaded	Environment Resistant	75	21		For Male Pins	Plastic	Crimp	Coupling Nut	Circular		Olive Drab		Contacts Not Included	8 Twinax

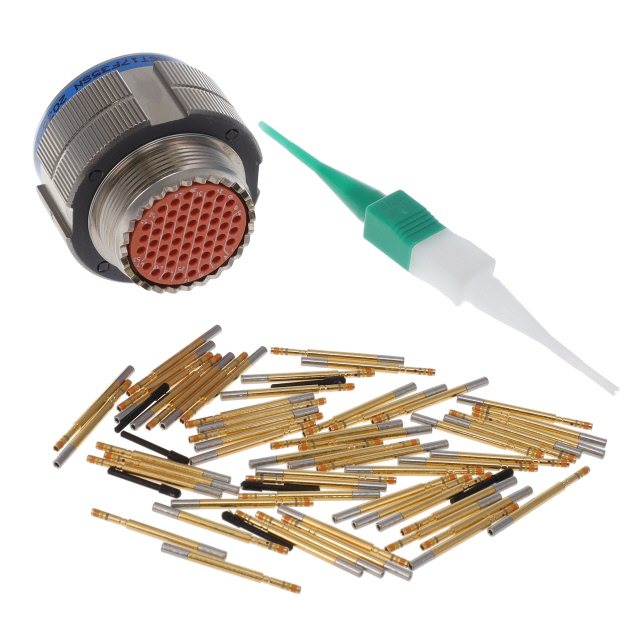

ITT Cannon, LLC KJA6T17F35SN	55	-65 ░C	200 °C	Aluminum Alloy	Free Hanging (In-Line)	Electroless Nickel	N (Normal)	Crimp	Plug Female Sockets	Gold	Metal	50 µin	1.27 µm			Shielded	Threaded	Environment Resistant	35	17
ITT Cannon, LLC KJA6T21F35PNL50	79	-65 ░C	200 °C	Aluminum Alloy	Free Hanging (In-Line)	Electroless Nickel	N (Normal)		Plug Housing					35	21	Shielded	Threaded	Environment Resistant				For Male Pins	Plastic	Crimp	Coupling Nut	Circular		Silver		Contacts Not Included	22D
ITT Cannon, LLC KJA6T17F6PNL27	6	-65 ░C	200 °C	Aluminum Alloy	Free Hanging (In-Line)	Electroless Nickel	N (Normal)		Plug Housing							Shielded	Threaded	Environment Resistant				For Male Pins	Plastic	Crimp	Coupling Nut	Circular	12	Silver	17-6	Contacts Not Included

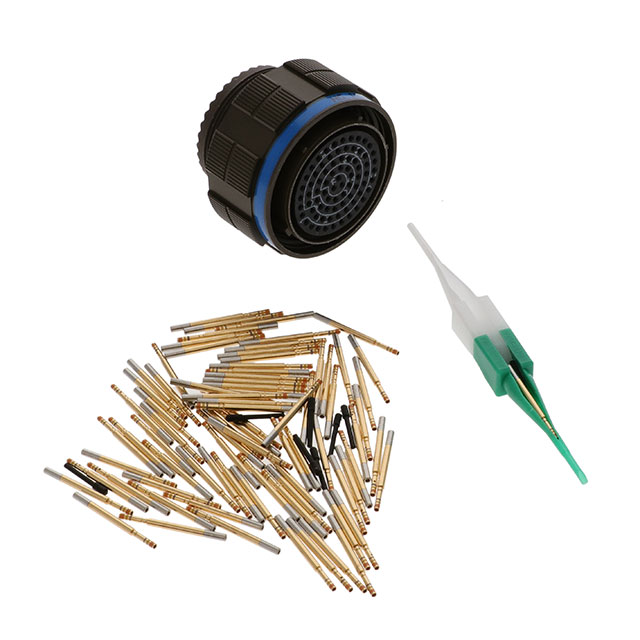

ITT Cannon, LLC KJA6T21W35SN	79	-65 ░C	175 °C	Aluminum Alloy	Free Hanging (In-Line)	Olive Drab Cadmium	N (Normal)	Crimp	Plug Female Sockets	Gold	Metal	50 µin	1.27 µm	35	21	Shielded	Threaded	Environment Resistant			Olive Drab

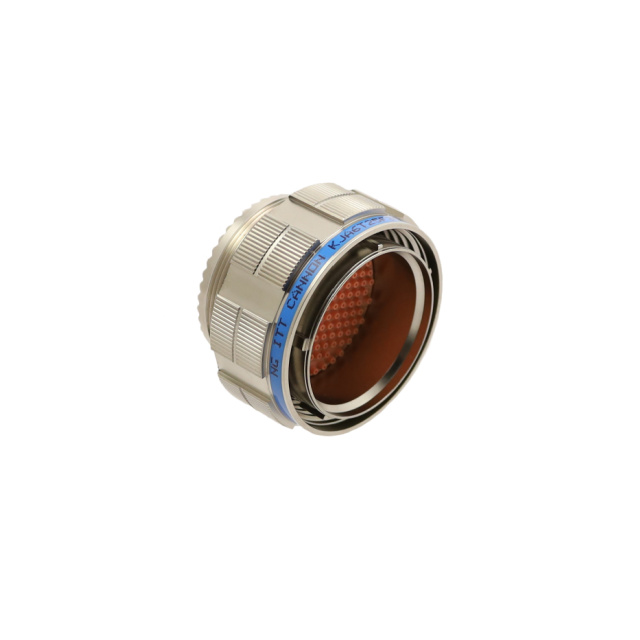

ITT Cannon, LLC KJA6T25F35PN	128	-65 ░C	200 °C	Aluminum Alloy	Free Hanging (In-Line)	Electroless Nickel	N (Normal)	Crimp	Plug Male Pins	Gold	Metal	50 µin	1.27 µm			Shielded	Threaded	Environment Resistant
