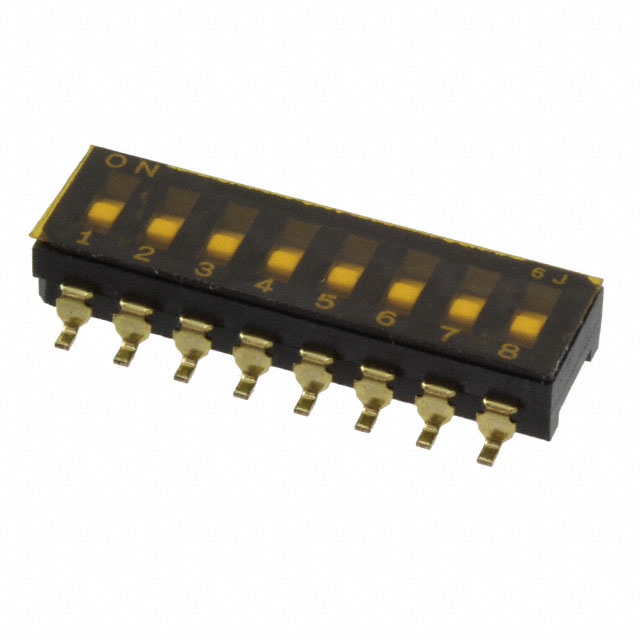

CFS-0803 Series

Catalog

SWITCH SLIDE DIP SPST 0.1A 6V

Part	Length [x]	Length [x]	Electrical Life	Body Material	Mounting Type	Actuator Type	Actuator Level	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Washable	Number of Positions	Contact Material	Voltage Rating	Current Rating (Amps)	Pitch	Pitch	Circuit	Height Above Board [z]	Height Above Board [z]	Termination Style
Nidec Components Corporation CFS-0803TB	21.8 mm	0.858 in	1000 Cycles	Polyphenylene Sulfide (PPS)	Surface Mount	Slide (Standard)	Raised	Gold	85 °C	-40 C		8	Copper Alloy	6 V	100 mA	2.54 mm	0.1 "	SPST	4.7 mm	0.185 in	Gull Wing
Nidec Components Corporation CFS-0803MC	21.8 mm	0.858 in	1000 Cycles	Polyphenylene Sulfide (PPS)	Through Hole	Slide (Standard)	Raised	Gold	85 °C	-40 C		8	Copper Alloy	6 V	100 mA	2.54 mm	0.1 "	SPST	5.5 mm	0.217 in	PC Pin
