6307FE Series
Manufacturer: Belden Inc.
Beta
⌘K

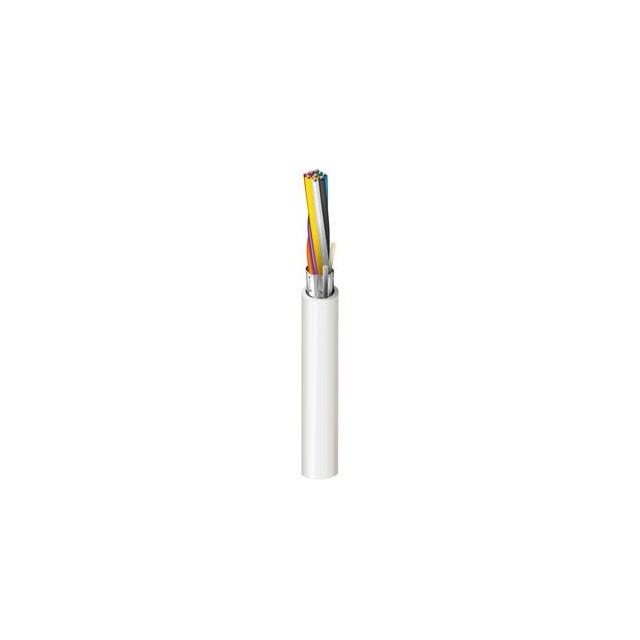

CABLE 9COND 18AWG NAT SHLD
| Part | Shield Coverage | Shield Material | Features | Operating Temperature [Max] | Operating Temperature [Min] | Voltage | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation | Cable Type | Length | Length | Ratings | Wire Gauge | Shield Type | Number of Conductors | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Material | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Thickness [x] | Usage | Jacket (Insulation) Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | Drain Wire Rip Cord | 75 ░C | 0 °C | 300 VDC | Natural | 6.76 mm | 0.266 in | Low Smoke Poly-Vinyl Chloride (LSPVC) | Multi-Conductor | 152.4 m | 500 ft | UL Style CMP | 18 AWG | Foil | 9 | 26 AWG | 7 | Copper Bare | 0.381 mm | 0.015 in | Security Sound | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum |
