VFJD1105 Series
Manufacturer: Stanley Electric Co
Beta
⌘K

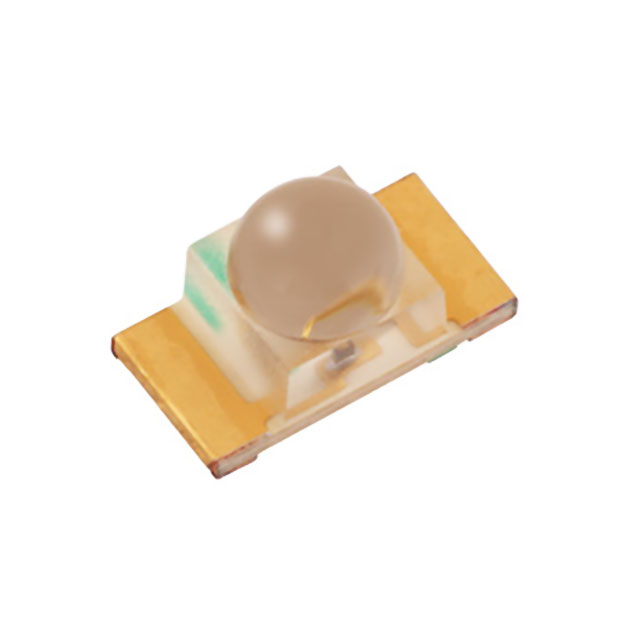

LED YLW-GRN CLEAR SMD
| Part | Color | Wavelength - Dominant | Configuration | Lens Transparency | Current - Test | Wavelength - Peak | Mounting Type | Height (Max) [z] | Package / Case | Lens Color | Voltage - Forward (Vf) (Typ) | Lens Size | Lens Size | Lens Style | Viewing Angle | Size / Dimension [y] | Size / Dimension [x] | Millicandela Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Stanley Electric Co | Yellow-Green | 572 nm | Standard | Clear | 20 mA | 575 nm | Surface Mount | 1.95 mm | 1206 (3216 Metric) | Colorless | 1.9 V | 2 mm | T-3/4 | Round with Domed Top | 40 ° | 1.6 mm | 3.2 mm | 470 mcd |
