56K405 Series
Manufacturer: Rosenberger
Beta
⌘K

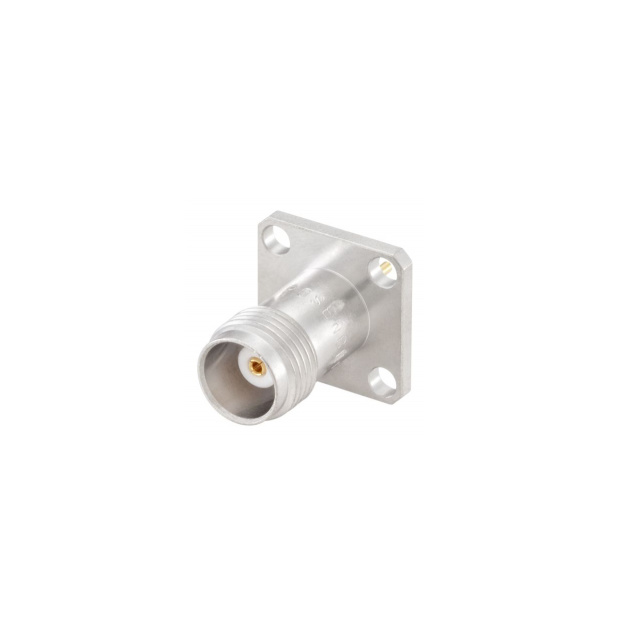

TNC PANEL JACK
| Part | Center Contact Plating | Body Finish | Body Material | Mating Cycles | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Connector Style | Fastening Type | Housing Color | Connector Type | Impedance | Number of Ports | Frequency - Max [Max] | Mounting Type | Mounting Feature | Contact Termination | Features | Center Contact Material | Shield Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | Gold | White Bronze | Brass | 500 | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | 500 V | TNC | Threaded | Silver | Female Socket Jack | 50 Ohms | 1 | 10 GHz | Panel Mount | Flange | Solder | Extended Insulation | Beryllium Copper | Solder |
