1702-1571 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

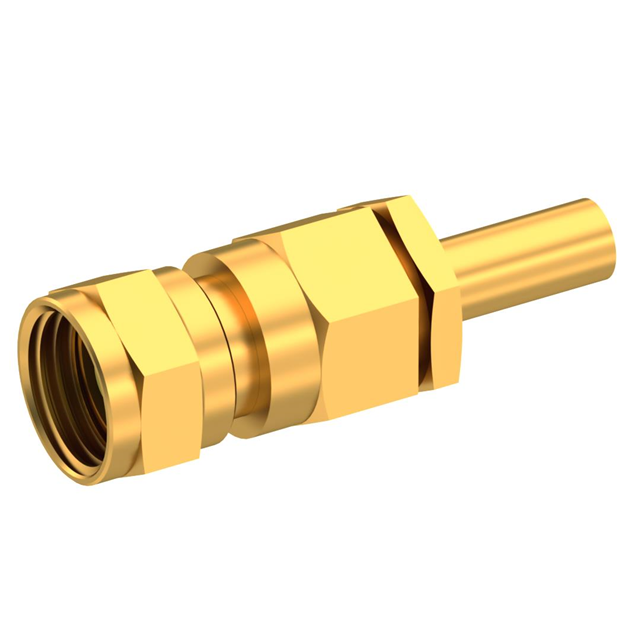

75OHM F STR NA CR 2.6/50S
| Part | Dielectric Material | Center Contact Plating | Body Material | Body Finish | Center Contact Material | Connector Type | Contact Termination | Number of Ports | Shield Termination | Fastening Type | Housing Color | Impedance | Mounting Type | Cable Group | Mating Cycles | Insertion Loss | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Frequency - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Gold | Brass | Gold | Beryllium Copper | Female Socket Plug | Crimp | 1 | Crimp | Snap-On | Gold | 75 Ohms | Free Hanging (In-Line) | RG-316 | ||||||
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Gold | Brass | Gold | Beryllium Copper | Female Socket Plug | Crimp | 1 | Crimp | Threaded | Gold | 75 Ohms | Free Hanging (In-Line) | RG-180 | 500 | 0.3 dB | 165 V | -65 ░C | 165 °C | 2 GHz |
