861400021 Series

Catalog

CONN HEADER VERT 2POS 2.54MM

Part	Number of Positions Loaded	Contact Shape	Insulation Height [z]	Insulation Height [z]	Material Flammability Rating	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Insulation Material	Contact Finish - Mating	Current Rating (Amps)	Contact Length - Post	Contact Length - Post	Shrouding	Number of Positions	Voltage Rating	Contact Length - Mating	Contact Length - Mating	Termination	Mounting Type	Number of Rows	Contact Material	Fastening Type	Overall Contact Length	Overall Contact Length	Connector Type	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]

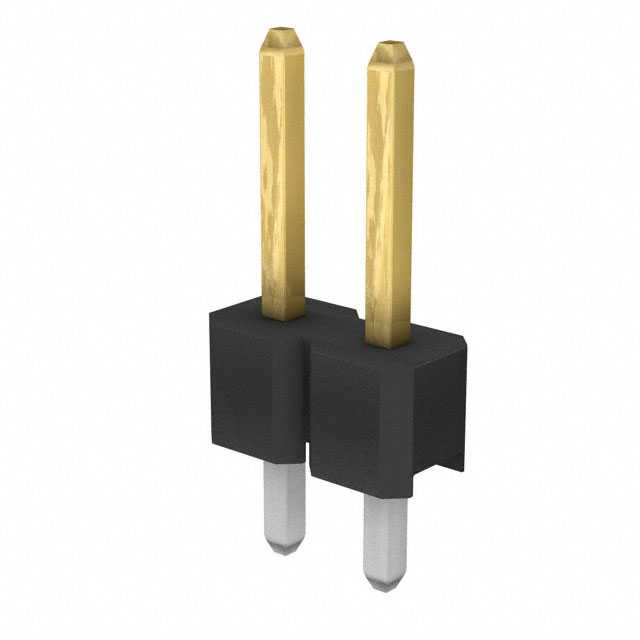

Amphenol ICC (FCI) 861400021YO2	All	Square	0.102 in	2.6 mm	UL94 V-0	Male Pin	0.203 Ám	8 Áin	0.1 in	2.54 mm	Thermoplastic	Gold or Gold GXT™	3 A	0.118 in	3 mm	Unshrouded	2	1000 VDC	7 mm	0.276 in	Solder	Through Hole	1	Copper Alloy	Push-Pull	0.496 in	12.6 mm	Breakaway Header
Amphenol ICC (FCI) 861400021YO2711LF		Square	0.102 in	2.6 mm	UL94 V-0	Male Pin	0.203 Ám	8 Áin	0.1 in	2.54 mm	Thermoplastic	Gold or Gold GXT™	3 A	0.124 "	3.15 mm	Unshrouded		1000 VDC	20.35 mm	0.801 "	Solder	Through Hole	1	Copper Alloy	Push-Pull	1.028 in	26.1 mm	Breakaway Header	2	-55 °C	125 °C
Amphenol ICC (FCI) 861400021YO8LF	All	Square	0.102 in	2.6 mm	UL94 V-0	Male Pin	1.27 µm	50 µin	0.1 in	2.54 mm	Thermoplastic	Gold or Gold GXT™	3 A	0.118 in	3 mm	Unshrouded	2	1000 VDC	7 mm	0.276 in	Solder	Through Hole	1	Copper Alloy	Push-Pull	0.496 in	12.6 mm	Breakaway Header		-55 °C	125 °C
Amphenol ICC (FCI) 861400021YO2319LF	All	Square	0.102 in	2.6 mm	UL94 V-0	Male Pin	0.203 Ám	8 Áin	0.1 in	2.54 mm	Thermoplastic	Gold or Gold GXT™	3 A	0.136 "	3.46 mm	Unshrouded	2	1000 VDC	5.8 mm	0.228 in	Solder	Through Hole	1	Copper Alloy	Push-Pull	0.469 in	11.9 mm	Breakaway Header		-55 °C	125 °C
