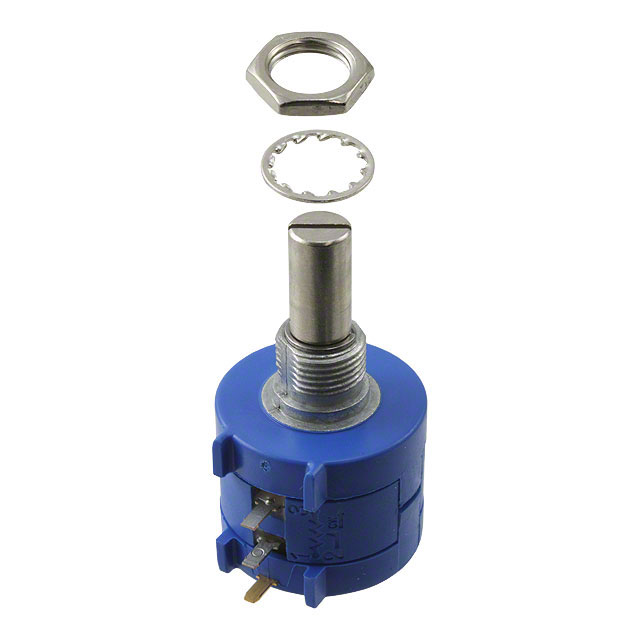

3590P Series
Manufacturer: Bourns Inc.
Beta
⌘K
RES WIREWOUND POT 1K OHM 5% 2W 10(ELEC)/10(MECH)TURN 6.34MM (39.22 X 22.23 X 22.92MM) PIN PANEL MOUNT/THROUGH HOLE
| Part | Size - Body [diameter] | Size - Body [diameter] | Resistance (Ohms) | Rotation | Resistive Material | Temperature Coefficient | Adjustment Type | Number of Turns | Power (Watts) | Termination Style | Built in Switch | Actuator Diameter [diameter] | Actuator Diameter [diameter] | Actuator Type | Mounting Type | Actuator Length [x] | Actuator Length [x] | Number of Gangs | Bushing Thread | Tolerance | Taper | Resistance (Ohms) | Resistance (Ohms) [custom] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 22.23 mm | 0.875 " | 1k | 3600 ° | Wirewound | 50 ppm/░C | Side Adjustment | 10 | 2 W | PC Pins | None | 0.2497 in | 6.34 mm | Slotted | Panel Mount | 0.812 in | 20.63 mm | 1 | 3/8-32 | 5 % | Linear | |||
Bourns Inc. | 22.23 mm | 0.875 " | 3600 ° | Wirewound | 50 ppm/░C | Side Adjustment | 10 | 2 W | PC Pins | None | 0.2497 in | 6.34 mm | Slotted | Panel Mount | 0.812 in | 20.63 mm | 1 | 3/8-32 | 5 % | Linear | 20 kOhms | |||
Bourns Inc. | 22.23 mm | 0.875 " | 100k | 3600 ° | Wirewound | 50 ppm/░C | Side Adjustment | 10 | 2 W | PC Pins | None | 0.248 " | 6.3 mm | Slotted | Panel Mount | 0.812 in | 20.63 mm | 1 | 3/8-32 | 5 % | Linear | |||
Bourns Inc. | 22.23 mm | 0.875 " | 3600 ° | Wirewound | 50 ppm/░C | Side Adjustment | 10 | 2 W | PC Pins | None | 0.2497 in | 6.34 mm | Slotted | Panel Mount | 0.812 in | 20.63 mm | 1 | 3/8-32 | 5 % | Linear | 50 kOhms | |||
Bourns Inc. | 22.23 mm | 0.875 " | 100k | 3600 ° | Wirewound | 50 ppm/░C | Side Adjustment | 10 | 2 W | PC Pins | None | 0.2497 in | 6.34 mm | Slotted | Panel Mount | 0.812 in | 20.63 mm | 1 | 3/8-32 | 5 % | Linear | |||
Bourns Inc. | 22.23 mm | 0.875 " | 3600 ° | Wirewound | 50 ppm/░C | Side Adjustment | 10 | 2 W | PC Pins | None | 0.248 " | 6.3 mm | Slotted | Panel Mount | 0.812 in | 20.63 mm | 1 | 3/8-32 | 5 % | Linear | 200 Ohms | |||
Bourns Inc. | 22.23 mm | 0.875 " | 100k | 3600 ° | Wirewound | 50 ppm/░C | Side Adjustment | 10 | 2 W | PC Pins | None | 0.2497 in | 6.34 mm | Slotted | Panel Mount | 0.812 in | 20.63 mm | 1 | 3/8-32 | 5 % | Linear | Sealed | ||
Bourns Inc. | 22.23 mm | 0.875 " | 10k | 3600 ° | Wirewound | 50 ppm/░C | Side Adjustment | 10 | 2 W | PC Pins | None | 0.2497 in | 6.34 mm | Slotted | Panel Mount | 0.812 in | 20.63 mm | 1 | 3/8-32 | 5 % | Linear | |||
Bourns Inc. | 22.23 mm | 0.875 " | 1k | 3600 ° | Wirewound | 50 ppm/░C | Side Adjustment | 10 | 2 W | PC Pins | None | 0.248 " | 6.3 mm | Slotted | Panel Mount | 0.812 in | 20.63 mm | 1 | 3/8-32 | 5 % | Linear |
