BZE7 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K

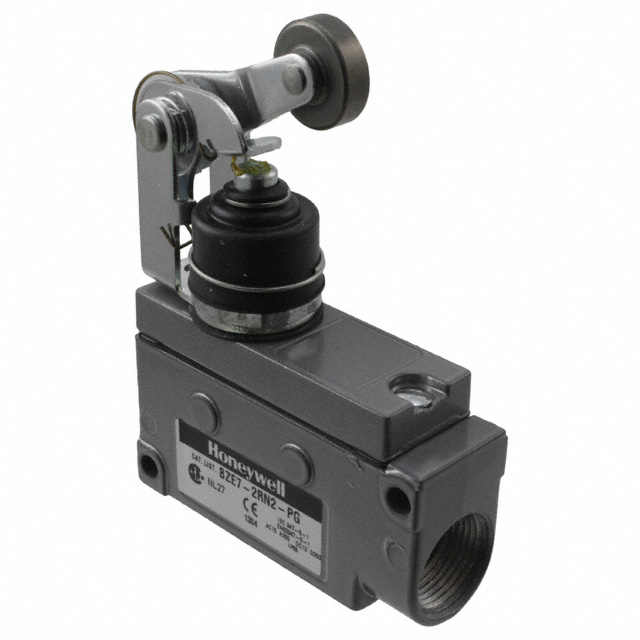

SWITCH SNAP ACTION SPDT 15A 125V
| Part | Switch Function | Voltage Rating - DC | Termination Style | Pretravel | Pretravel | Circuit | Ingress Protection | Release Force | Mounting Type | Actuator Type | Operating Force | Differential Travel | Differential Travel | Overtravel | Overtravel | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - AC | Current Rating (Amps) | Operating Force [Min] | Operating Force [Max] | Pretravel | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Honeywell Sensing and Productivity Solutions | On-Mom | 125 VDC | Screw Terminal | 3.2 mm | 0.125 in | SPDT | IP50 | 680 gf | Chassis Mount | Cross Roller Plunger | 3629 gf | 1.5 mm | 0.06 " | 0.125 in | 3.2 mm | 71 °C | -30 ░C | 125 V | 15 A 500 mA | ||||
 Honeywell Sensing and Productivity Solutions | On-Mom | 125 VDC | Screw Terminal | 4.8 mm | SPDT | IP65 - Dust Tight Water Resistant | 170 gf | Chassis Mount | Lever Roller | 0.15 mm | 0.006 in | 0.219 in | 5.6 mm | 71 °C | -30 ░C | 125 V | 15 A 500 mA | 283 gf | 567 gf | 0.188 in | Actuator Seal Boot |
