ED114 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K
TERM BLK 5POS SIDE ENT 7.5MM PCB
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Screw Thread | Torque - Screw | Torque - Screw | Housing Material | Contact Material - Plating | Clamp Material - Plating [custom] | Number of Levels | Current | Voltage | Pitch | Pitch | Positions Per Level | Mating Orientation | Color | Wire Termination | Mounting Type | Features | Wire Gauge [Max] | Wire Gauge [Min] | Positions Per Level [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

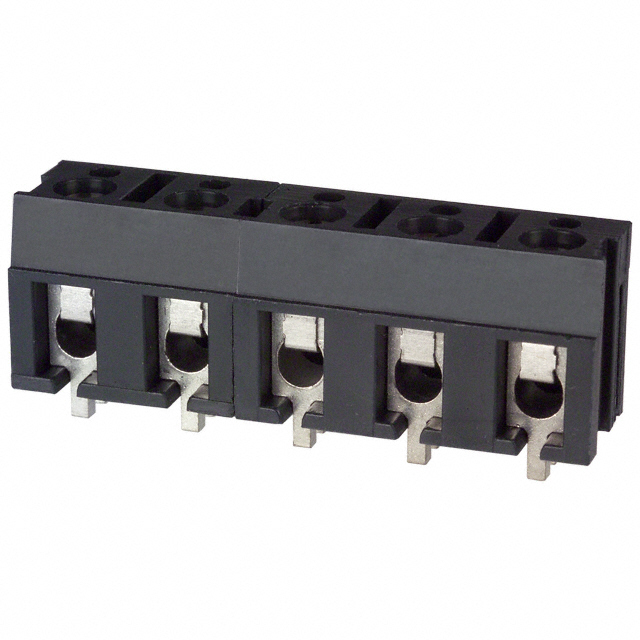

 On Shore Technology Inc. | -30 ░C | 105 ░C | M3 | 0.8 Nm | 7.1 Lb-In | Polyamide (PA) Nylon | Brass | Stainless Steel | 1 | 15 A | 300 VDC | 0.295 in | 7.5 mm | 5 | Horizontal with Board | Gray | Screw - Leaf Spring Wire Guard | Through Hole | Interlocking (Side) | 22 AWG | 12 AWG | |

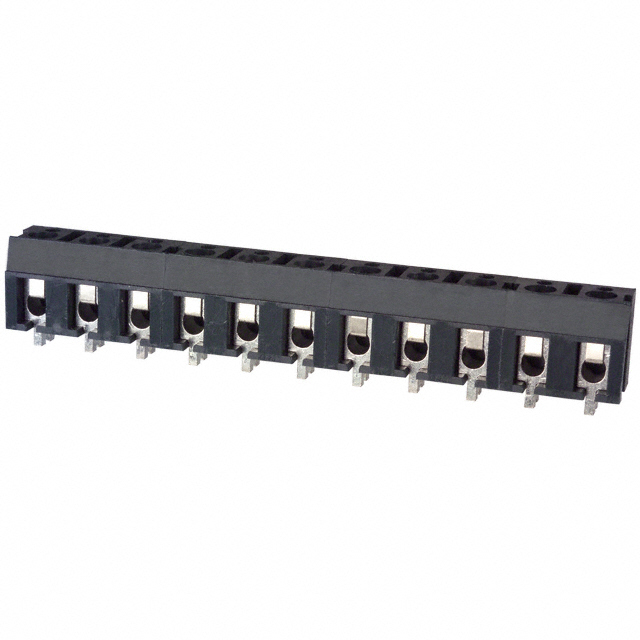

 On Shore Technology Inc. | -30 ░C | 105 ░C | M3 | 0.8 Nm | 7.1 Lb-In | Polyamide (PA) Nylon | Brass | Stainless Steel | 1 | 15 A | 300 VDC | 0.295 in | 7.5 mm | 11 | Horizontal with Board | Gray | Screw - Leaf Spring Wire Guard | Through Hole | Interlocking (Side) | 22 AWG | 12 AWG | |

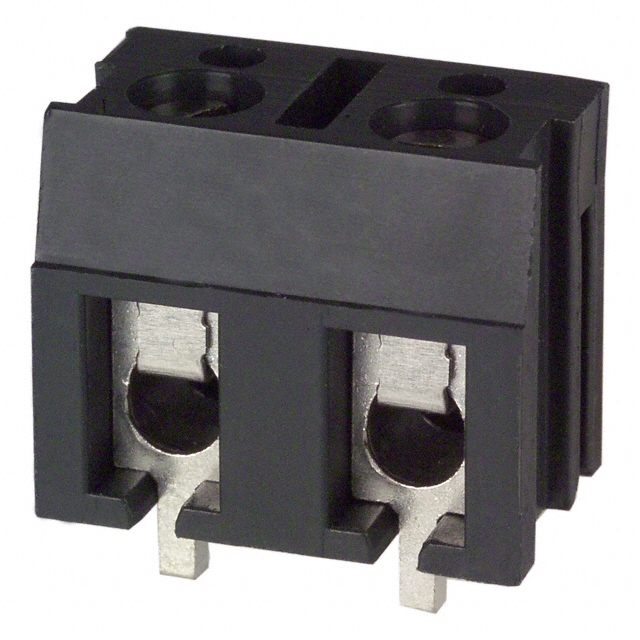

 On Shore Technology Inc. | -30 ░C | 105 ░C | M3 | 0.8 Nm | 7.1 Lb-In | Polyamide (PA) Nylon | Brass | Stainless Steel | 1 | 15 A | 300 VDC | 0.295 in | 7.5 mm | 2 | Horizontal with Board | Gray | Screw - Leaf Spring Wire Guard | Through Hole | Interlocking (Side) | 22 AWG | 12 AWG | |

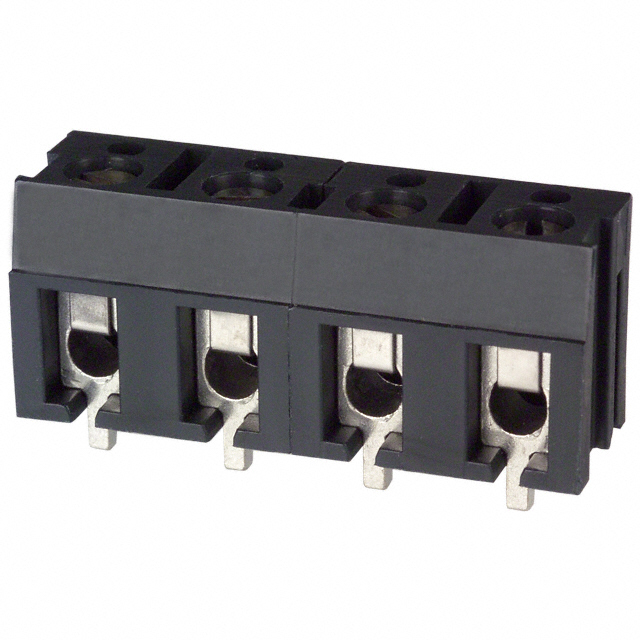

 On Shore Technology Inc. | -30 ░C | 105 ░C | M3 | 0.8 Nm | 7.1 Lb-In | Polyamide (PA) Nylon | Brass | Stainless Steel | 1 | 15 A | 300 VDC | 0.295 in | 7.5 mm | 4 | Horizontal with Board | Gray | Screw - Leaf Spring Wire Guard | Through Hole | Interlocking (Side) | 22 AWG | 12 AWG | |

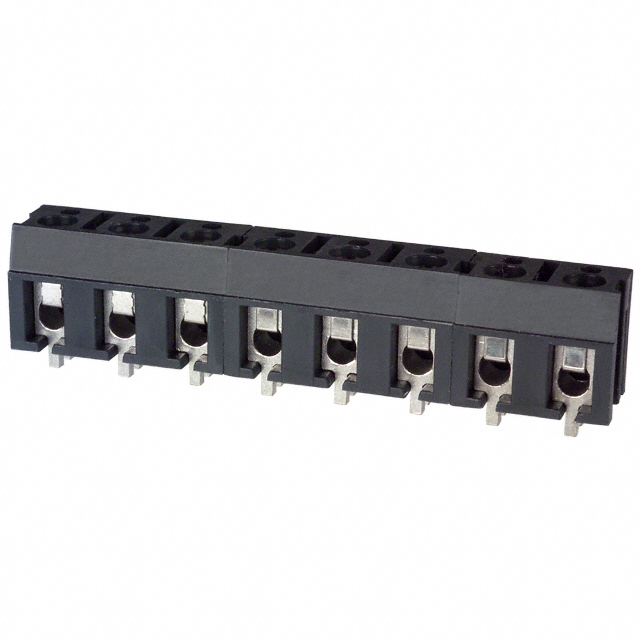

 On Shore Technology Inc. | -30 ░C | 105 ░C | M3 | 0.8 Nm | 7.1 Lb-In | Polyamide (PA) Nylon | Brass | Stainless Steel | 1 | 15 A | 300 VDC | 0.295 in | 7.5 mm | 8 | Horizontal with Board | Gray | Screw - Leaf Spring Wire Guard | Through Hole | Interlocking (Side) | 22 AWG | 12 AWG | |

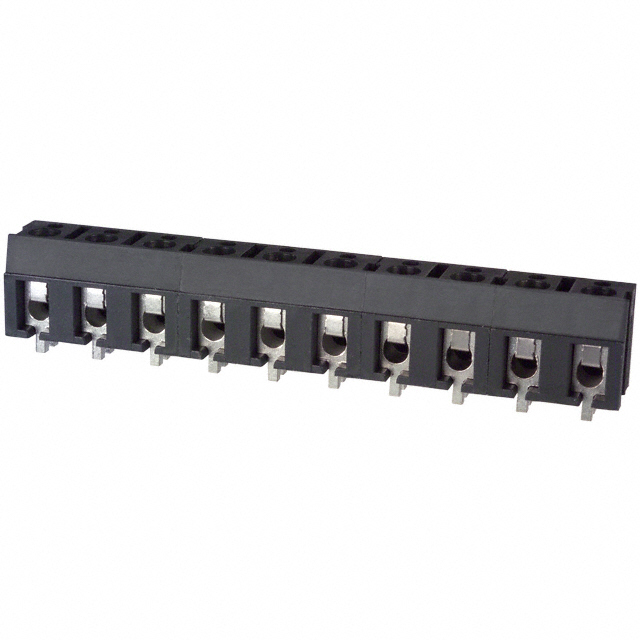

 On Shore Technology Inc. | -30 ░C | 105 ░C | M3 | 0.8 Nm | 7.1 Lb-In | Polyamide (PA) Nylon | Brass | Stainless Steel | 1 | 15 A | 300 VDC | 0.295 in | 7.5 mm | 10 | Horizontal with Board | Gray | Screw - Leaf Spring Wire Guard | Through Hole | Interlocking (Side) | 22 AWG | 12 AWG | |

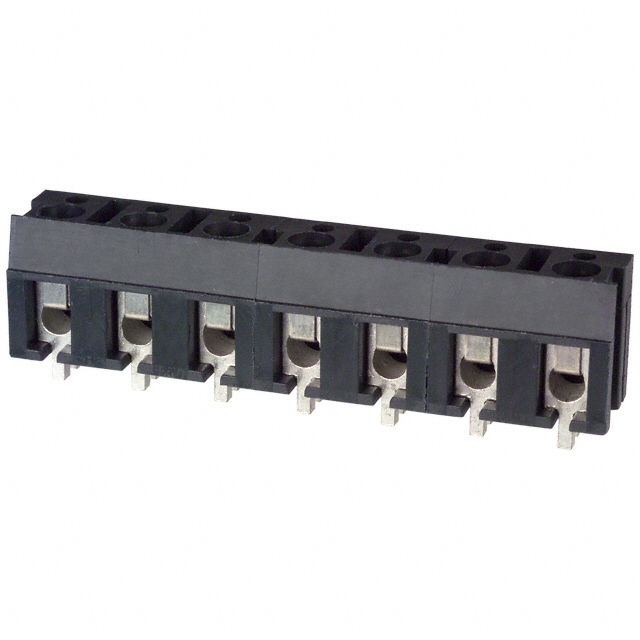

 On Shore Technology Inc. | -30 ░C | 105 ░C | M3 | 0.8 Nm | 7.1 Lb-In | Polyamide (PA) Nylon | Brass | Stainless Steel | 1 | 15 A | 300 VDC | 0.295 in | 7.5 mm | Horizontal with Board | Gray | Screw - Leaf Spring Wire Guard | Through Hole | Interlocking (Side) | 22 AWG | 12 AWG | 7 | |

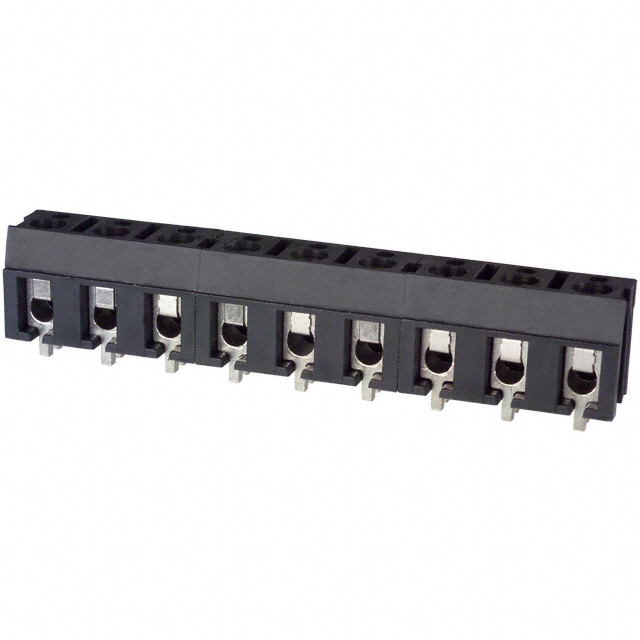

 On Shore Technology Inc. | -30 ░C | 105 ░C | M3 | 0.8 Nm | 7.1 Lb-In | Polyamide (PA) Nylon | Brass | Stainless Steel | 1 | 15 A | 300 VDC | 0.295 in | 7.5 mm | 9 | Horizontal with Board | Gray | Screw - Leaf Spring Wire Guard | Through Hole | Interlocking (Side) | 22 AWG | 12 AWG | |
 On Shore Technology Inc. | -30 ░C | 105 ░C | M3 | 0.8 Nm | 7.1 Lb-In | Polyamide (PA) Nylon | Brass | Stainless Steel | 1 | 15 A | 300 VDC | 0.295 in | 7.5 mm | 6 | Horizontal with Board | Gray | Screw - Leaf Spring Wire Guard | Through Hole | Interlocking (Side) | 22 AWG | 12 AWG |
