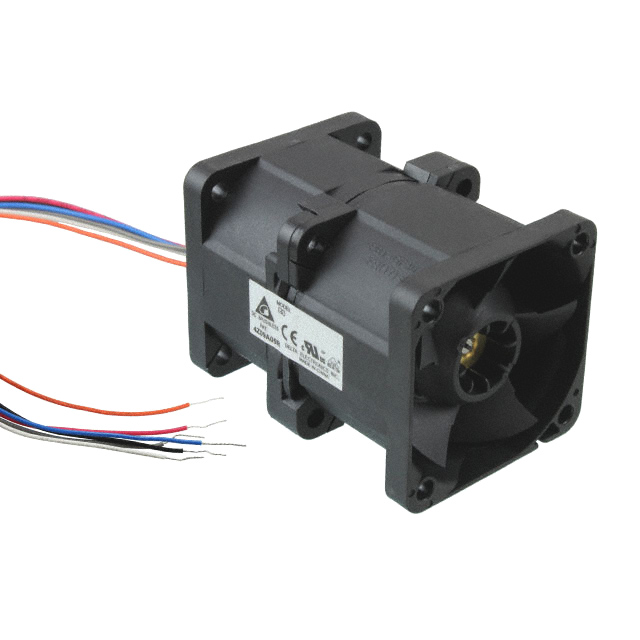

GFB0412 Series

Catalog

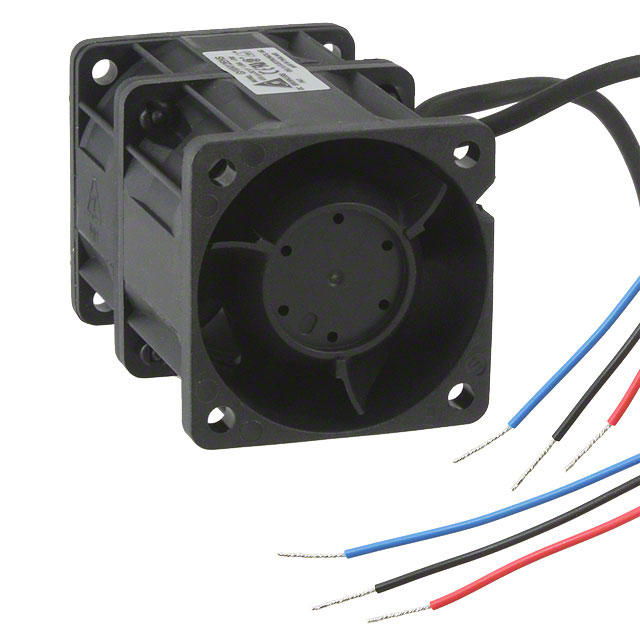

FAN AXIAL DUAL 40X56MM 12VDC

Part	Current Rating (Amps)	Material - Frame	Voltage Range [Min]	Voltage Range [Max]	Material - Blade	Lifetime @ Temp.	Width [y]	Termination	Bearing Type	Voltage - Rated	RPM [custom]	RPM [custom]	Weight	Weight	Features	Approval Agency	Fan Type	Power (Watts)	Size / Dimension [x]	Size / Dimension [z]	Operating Temperature [Min]	Operating Temperature [Max]	Noise	Static Pressure	Static Pressure	Air Flow	Air Flow	Weight [custom]	Weight [custom]	Size / Dimension
Delta Electronics GFB0412SHS-DF00	1.1 A	Plastic	10.8 VDC	12.6 VDC	Plastic	70000 Hrs	56 mm	3	Ball	12 VDC	15000 RPM	14300 RPM	0.183 lb	83.01 g	Locked Rotor Protection Speed Sensor (Tach)	CE CSA UL VDE	Tubeaxial (Dual)	13.2 W	40 mm	40 mm	-10 °C	60 °C	63 dB	583.9 Pa	2.344 in H2O	0.846 m³/min	30.2 CFM
Delta Electronics GFB0412EHS-DF00	1.3 A	Plastic	10.8 VDC	12.6 VDC	Plastic	40 °C 50000 Hrs	56 mm	3	Ball	12 VDC	16000 RPM	15400 RPM	0.183 lb	83.01 g	Locked Rotor Protection Speed Sensor (Tach)	CE CSA UL VDE	Tubeaxial (Dual)	15.6 W	40 mm	40 mm	-10 °C	60 °C	64.5 dB(A)	655.4 Pa	2.631 in H2O	0.902 m³/min	32.2 CFM
Delta Electronics GFB0412GHS-C	1.78 A	Plastic	10.8 VDC	12.6 VDC	Plastic		56 mm	2	Ball	12 VDC	16100 RPM	17100 RPM	0.187 lb	84.82 g		CE CSA UL VDE	Tubeaxial (Dual)	21.36 W	40 mm	40 mm			66.5 dB(A)	597.1 Pa	2.397 in H2O	0.977 m³/min	34.9 CFM
Delta Electronics GFB0412GHS-CF00	1.78 A	Plastic	10.8 VDC	12.6 VDC	Plastic	40 °C 50000 Hrs	56 mm	3	Ball	12 VDC	16100 RPM	17100 RPM	0.187 lb	84.82 g	Locked Rotor Protection Speed Sensor (Tach)	CE CSA UL VDE	Tubeaxial (Dual)	21.36 W	40 mm	40 mm	-10 °C	60 °C	66.5 dB(A)	597.1 Pa	2.397 in H2O	0.977 m³/min	34.9 CFM

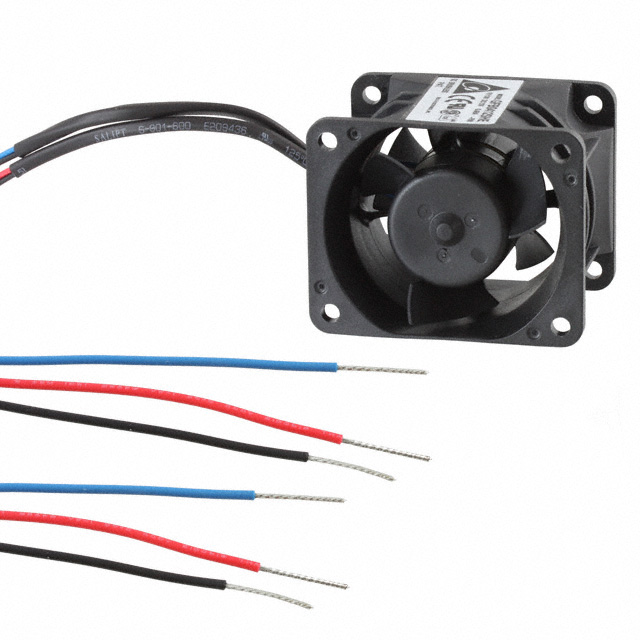

Delta Electronics GFB0412SHE-F00	0.56 A	Plastic	7 V	13.2 VDC	Plastic	40 °C 50000 Hrs	38 mm	3	Ball	12 VDC	10000 RPM	9600 RPM			Locked Rotor Protection Speed Sensor (Tach)	CE CSA UL VDE	Tubeaxial (Dual)	6.72 W	40 mm	50 mm	-10 °C	60 °C	57.5 dB	148 Pa	0.594 in H2O	0.622 m³/min	22.2 CFM	0.111 lb	50.35 g	Rectangular
