TPSM84 Series

8V to 14V, 0.508V to 1.35V Output, 10A Power Module with Integrated Input and Output Capacitors

Catalog

8V to 14V, 0.508V to 1.35V Output, 10A Power Module with Integrated Input and Output Capacitors

Part	Outputs and Type	Outputs and Type	Board Type	Supplied Contents	Regulator Topology	Current - Output	Frequency - Switching	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output	Main Purpose	Contents	Utilized IC / Part	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Features	Type	Voltage - Input (Min) [Min]	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Mounting Type	Voltage - Input (Max) [Max]	Number of Outputs	Applications	Package / Case	Efficiency	Current - Output (Max) [Max]	Supplier Device Package	Voltage - Output 1 [Min] [custom]	Voltage - Output 1 [Max] [custom]
Texas Instruments TPSM84A22EVM-809	1	1 Non-Isolated Output Non-Isolated	Fully Populated	Board(s)	Buck	10 A	4 MHz	8 V	14 V	1.2 V 1.3 V 1.5 V 1.8 V 2 V	DC/DC Step Down	Board(s)	TPSM84A22
Texas Instruments TPSM84A22MOJT														0.09 in	0.35 in	0.59 in	15 mm	2.3 mm	9 mm	85 °C	-40 C	OCP UVLO	Non-Isolated PoL Module	8 V	2.05 V	1.2 V	Surface Mount	14 V	1	ITE (Commercial)	20-QFN Exposed Pad Module	89 %	10 A	20-QFM (9x15)
Texas Instruments TPSM84A21MOJT														0.09 in	0.35 in	0.59 in	15 mm	2.3 mm	9 mm	85 °C	-40 C	OCP UVLO	Non-Isolated PoL Module	8 V			Surface Mount	14 V	1	ITE (Commercial)	20-QFN Exposed Pad Module	86.5 %	10 A	20-QFM (9x15)	0.55 V	1.35 V

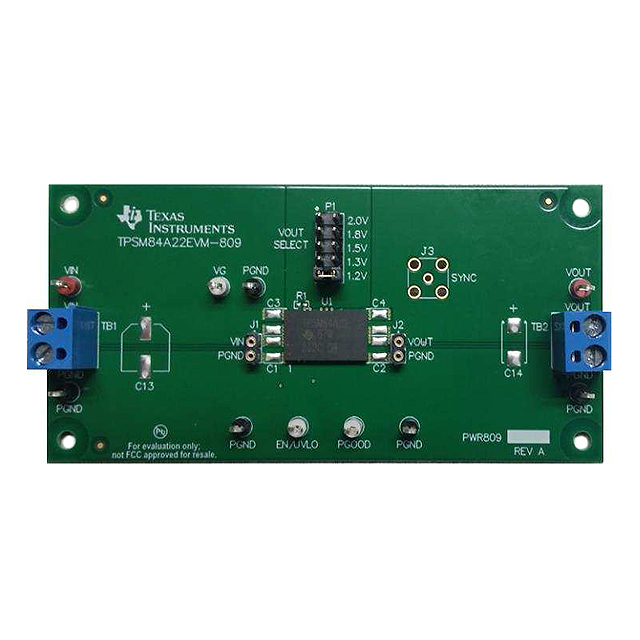

Texas Instruments TPSM84A21EVM-808	1	1 Non-Isolated Output Non-Isolated	Fully Populated	Board(s)	Buck	10 A	4 MHz	8 V	14 V	0.6 V 0.8 V 1 V 1.1 V 1.2 V	DC/DC Step Down	Board(s)	TPSM84A21

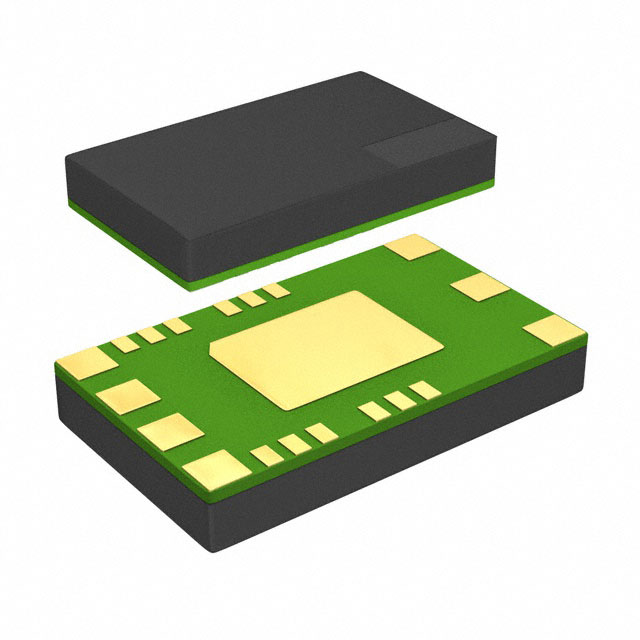

Texas Instruments TPSM84A21MOJR														0.09 in	0.35 in	0.59 in	15 mm	2.3 mm	9 mm	85 °C	-40 C	OCP UVLO	Non-Isolated PoL Module	8 V			Surface Mount	14 V	1	ITE (Commercial)	20-QFN Exposed Pad Module	86.5 %	10 A	20-QFM (9x15)	0.55 V	1.35 V

Catalog

8V to 14V, 0.508V to 1.35V Output, 10A Power Module with Integrated Input and Output Capacitors

Description

The TPSM84A22 is an easy-to-use integrated power solution that combines theTPS54A20, a 10-A, DC/DC, synchronous, step-down converter with power MOSFETs, shielded inductors, input and output capacitors, and passives into a low profile package. This total power solution requires only one voltage-setting resistor, and eliminates the loop compensation and magnetics part selection from the design process. The completely integrated power solution allows standard applications to operate with no additional input or output capacitors and only a single external resistor to set the output voltage. High frequency operation, ultra-fast transient response, and accurate voltage regulation allow the TPSM84A22 to meet tight regulation specs. The 9 x 15 mm PCB footprint is easy to solder onto a printed circuit board and allows a compact, low-profile point-of-load design. The TPSM84A22 is an easy-to-use integrated power solution that combines theTPS54A20, a 10-A, DC/DC, synchronous, step-down converter with power MOSFETs, shielded inductors, input and output capacitors, and passives into a low profile package. This total power solution requires only one voltage-setting resistor, and eliminates the loop compensation and magnetics part selection from the design process. The completely integrated power solution allows standard applications to operate with no additional input or output capacitors and only a single external resistor to set the output voltage. High frequency operation, ultra-fast transient response, and accurate voltage regulation allow the TPSM84A22 to meet tight regulation specs. The 9 x 15 mm PCB footprint is easy to solder onto a printed circuit board and allows a compact, low-profile point-of-load design.
