CAB420RF Series
Manufacturer: GCT
Beta
⌘K

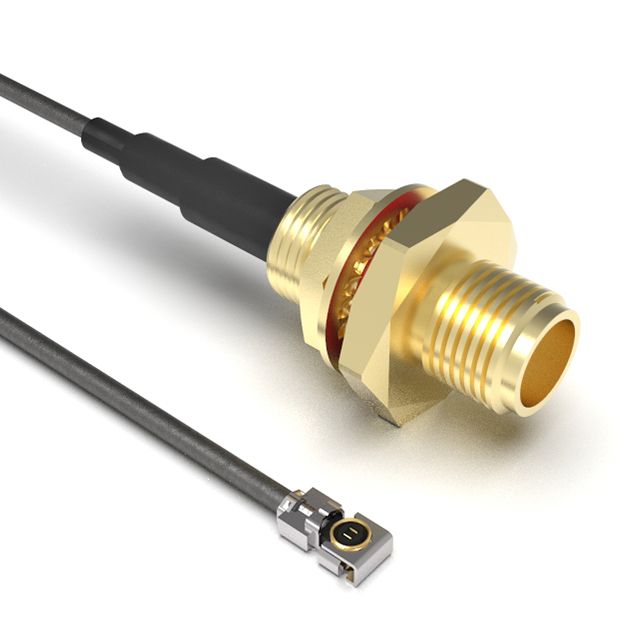

CBL ASSY SMA-MHF4L LK J-P 7.874"
| Part | Operating Temperature [Max] | Operating Temperature [Min] | 2nd Contact Gender | Overall Impedance | 2nd Connector Mounting Type | Ingress Protection | 1st Connector Mounting Type | Cable Impedance | Cable Type | Cable Type [diameter] | Style | Frequency - Max [Max] | 1st Contact Gender | Color | 1st Connector | Features | 1st Connector Mounting Feature | Length | Length | 2nd Connector |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
85 °C | -40 C | Female | 50 Ohms | Free Hanging (In-Line) | IP67/IP68 | Panel Mount | 50 Ohms | Coaxial Cable | 1.37 mm | SMA to I-PEX MHF4L LK | 3 GHz | Female | Black | SMA Jack | IP Rated Unmated | Bulkhead - Rear Side Nut | 200 mm | 7.874 in | ||
85 °C | -40 C | Female | 50 Ohms | Free Hanging (In-Line) | IP67/IP68 | Panel Mount | 50 Ohms | Coaxial Cable | 1.37 mm | SMA to IPEX MHF4L LK | 3 GHz | Female | Black | SMA Jack | IP Rated Unmated | Bulkhead - Rear Side Nut | 200 mm | 7.874 in | IPEX MHF4L LK (Locking) Plug Right Angle |
