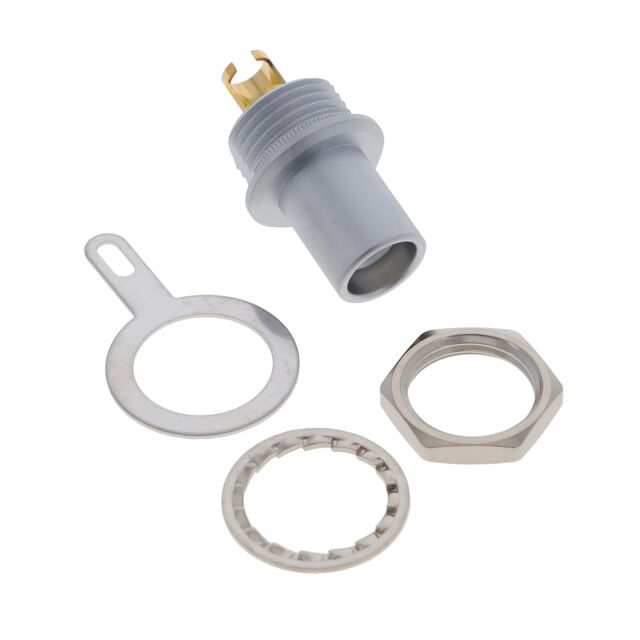

FAA.1S Series
Manufacturer: LEMO
Beta
⌘K
CONN COAX PLUG STR 50 OHM SOLDER
| Part | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Mating Cycles | Body Material | Includes | Center Contact Plating | Cable Group | Connector Type | Housing Color | Impedance | Contact Termination | Number of Ports | Fastening Type | Mounting Type | Ingress Protection | Connector Style | Mounting Feature | Center Contact Material | Shield Termination | Material Flammability Rating | Contact Material | Insert Material | Shell Size - Insert | Shell Material | Shell Finish | Contact Finish - Mating | Current Rating (Amps) | Color | Primary Material | Number of Positions | Orientation | Shielding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LEMO | Chrome | -55 C | 250 °C | Polytetrafluoroethylene (PTFE) | 1000 | Brass | 1 Connector 1 Lockwasher 1 Nut | Gold | 174 174A 178B 188A 196A 316B RG-122 | Plug Male Pin | Silver | 50 Ohms | Solder Cup | 1 | Push-Pull | Panel Mount | IP50 - Dust Protected | Coaxial | Bulkhead - Rear Side Nut | Brass | Solder | |||||||||||||
 LEMO | Chrome | -55 C | 250 °C | Polytetrafluoroethylene (PTFE) | 1000 | Brass | 1 Connector 1 Lockwasher 1 Nut | Gold | 178 Belden 9222 RG-174 | Plug Male Pin | Silver | 50 Ohms | Solder Cup | 1 | Push-Pull | Panel Mount | IP50 - Dust Protected | Triaxial | Bulkhead - Rear Side Nut | Brass | Solder | |||||||||||||
LEMO | -55 C | 250 °C | Plug Female Sockets and Male Pins | Push-Pull | Panel Mount | IP50 - Dust Protected | Bulkhead - Rear Side Nut | UL94 V-0 | Brass Bronze | Polyetheretherketone (PEEK) | 306 | Brass | Chrome | Gold | 7 A | Silver | Metal | 6 | Keyed | Shielded |
