LCCBS Series

Catalog

LOCK CIRC BRD SUPPORT 6-32

Part	Length - Overall [x]	Length - Overall [x]	Features	Holding Type	Support Panel Thickness	Support Panel Thickness	Support Panel Thickness	Support Hole Diameter	Support Hole Diameter	Support Hole Diameter	Between Board Height [z]	Between Board Height [z]	Mounting Type	Material	Between Board Height	Length - Overall	Length - Overall

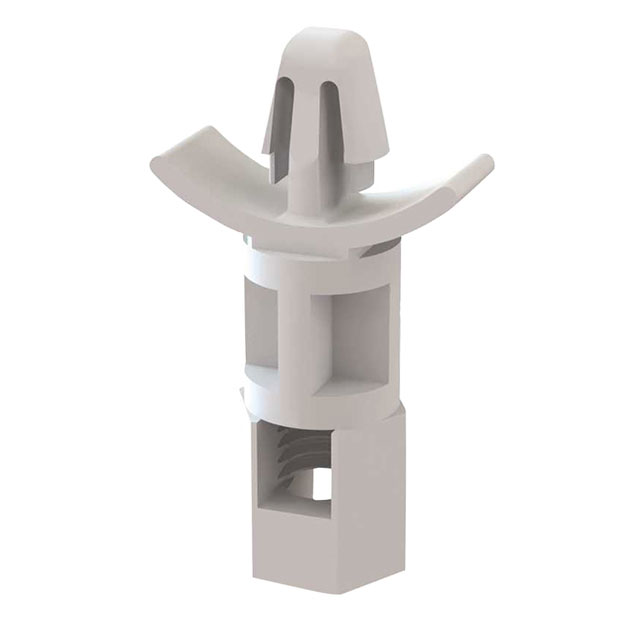

Essentra Components LCCBS-TF-12-01	1.017 in	25.83 mm	6-32 Thread Winged	Snap Lock	1.57 mm	0.062 in	0.0625 in	0.187 in	4.75 mm	3/16	0.797 in	20.24 mm	Screw Mount	Nylon

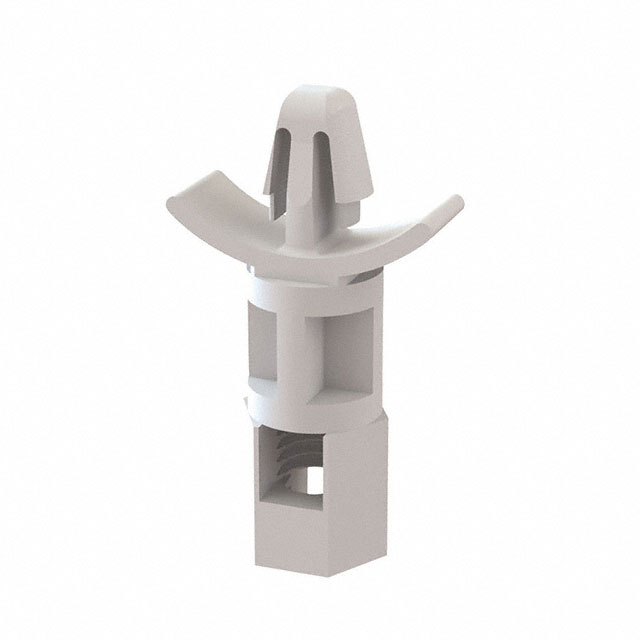

Essentra Components LCCBS-TF-14-19			6-32 Thread Winged	Snap Lock	1.57 mm	0.062 in	0.0625 in	0.187 in	4.75 mm	3/16			Screw Mount	Nylon	0.922 in 23.42 mm	1.142 in	29 mm
Essentra Components LCCBS-TF-12-19	1.017 in	25.83 mm	6-32 Thread Winged	Snap Lock	1.57 mm	0.062 in	0.0625 in	0.187 in	4.75 mm	3/16	0.797 in	20.24 mm	Screw Mount	Nylon
