IRLR024 Series

Catalog

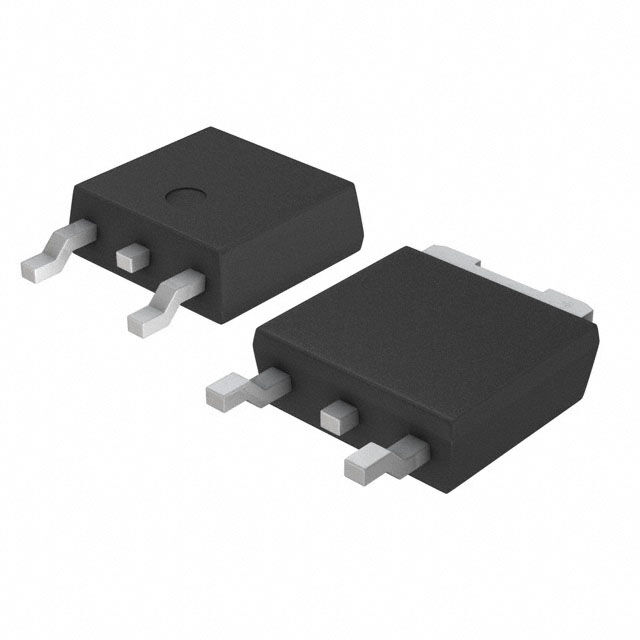

MOSFET N-CH 60V 14A DPAK

Part	FET Type	Vgs (Max)	Gate Charge (Qg) (Max) @ Vgs	Package / Case	Rds On (Max) @ Id, Vgs	Technology	Drive Voltage (Max Rds On, Min Rds On)	Drain to Source Voltage (Vdss)	Mounting Type	Vgs(th) (Max) @ Id	Supplier Device Package	Current - Continuous Drain (Id) @ 25°C	Input Capacitance (Ciss) (Max) @ Vds	Operating Temperature [Min]	Operating Temperature [Max]	Power Dissipation (Max)
Vishay General Semiconductor - Diodes Division IRLR024TR	N-Channel	10 V	18 nC	DPAK (2 Leads + Tab) SC-63 TO-252-3	100 mOhm	MOSFET (Metal Oxide)	4 V 5 V	60 V	Surface Mount	2 V	DPAK	14 A	870 pF	-55 °C	150 °C	2.5 W 42 W
Vishay General Semiconductor - Diodes Division IRLR024	N-Channel	10 V	18 nC	DPAK (2 Leads + Tab) SC-63 TO-252-3	100 mOhm	MOSFET (Metal Oxide)	4 V 5 V	60 V	Surface Mount	2 V	DPAK	14 A	870 pF	-55 °C	150 °C	2.5 W 42 W
Vishay General Semiconductor - Diodes Division IRLR024TRL	N-Channel	10 V	18 nC	DPAK (2 Leads + Tab) SC-63 TO-252-3	100 mOhm	MOSFET (Metal Oxide)	4 V 5 V	60 V	Surface Mount	2 V	DPAK	14 A	870 pF	-55 °C	150 °C	2.5 W 42 W
Vishay General Semiconductor - Diodes Division IRLR024TRLPBF	N-Channel	10 V	18 nC	DPAK (2 Leads + Tab) SC-63 TO-252-3	100 mOhm	MOSFET (Metal Oxide)	4 V 5 V	60 V	Surface Mount	2 V	DPAK	14 A	870 pF	-55 °C	150 °C	2.5 W 42 W
