1986723 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

STANDARD TERMINAL BLOCK, PLUGGABLE, 5 CONTACTS, 3.5 MM, TERMINAL BLOCK, PLUGGABLE, CABLE MOUNT

Part	Termination Style	Voltage - UL	Mounting Type	Insulation Height	Insulation Height	Housing Material	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Features	Positions Per Level	Contact Mating Finish	Current - UL	Number of Levels	Type	Color	Pitch [x]	Pitch [x]	Contact Material	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Number of Positions	Number of Positions

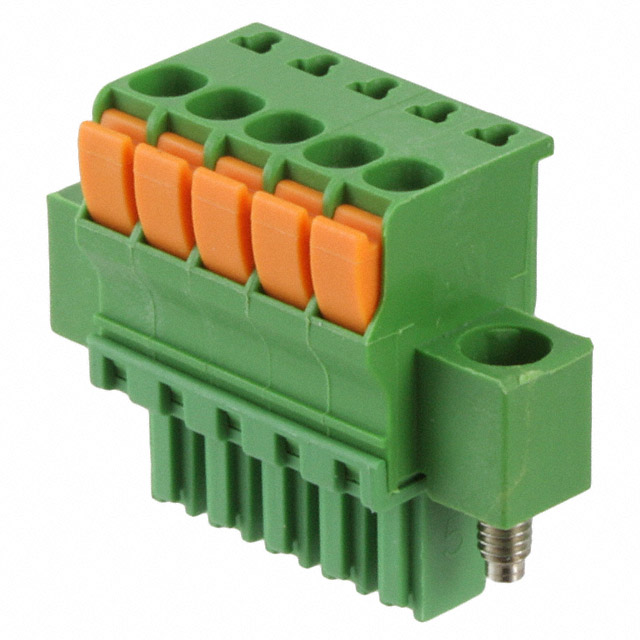

TE Connectivity Raychem Cable Protection 1986723-5	Push-In Spring Screwless - Leg Spring	300 V	Free Hanging (In-Line)	11.66 mm	0.459 in	Polyamide (PA) Nylon	0.05 mm²	2 mm²	UL94 V-0	-40 °C	110 °C	Mating Flange	5	Tin	9 A	1	Plug Female Sockets	Green	3.5 mm	0.138 in	Copper Alloy	14 AWG	30 AWG

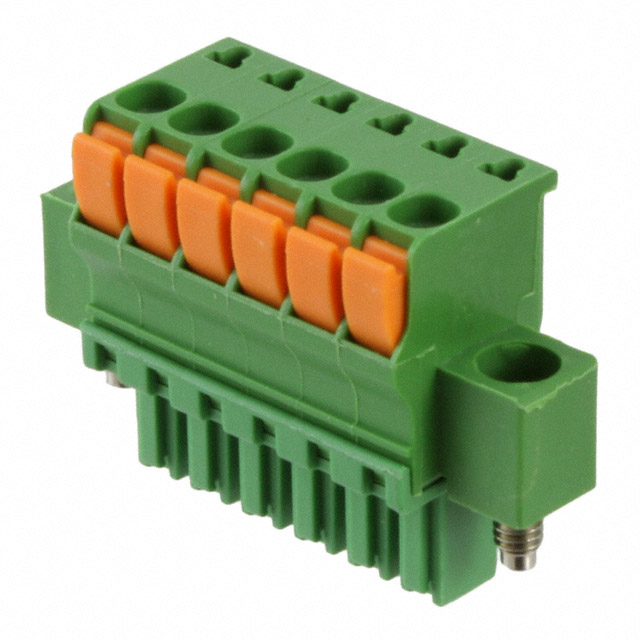

TE Connectivity Raychem Cable Protection 1986723-6	Push-In Spring Screwless - Leg Spring	300 V	Free Hanging (In-Line)	11.66 mm	0.459 in	Polyamide (PA) Nylon	0.05 mm²	2 mm²	UL94 V-0	-40 °C	110 °C	Mating Flange	6	Tin	9 A	1	Plug Female Sockets	Green	3.5 mm	0.138 in	Copper Alloy	14 AWG	30 AWG	6

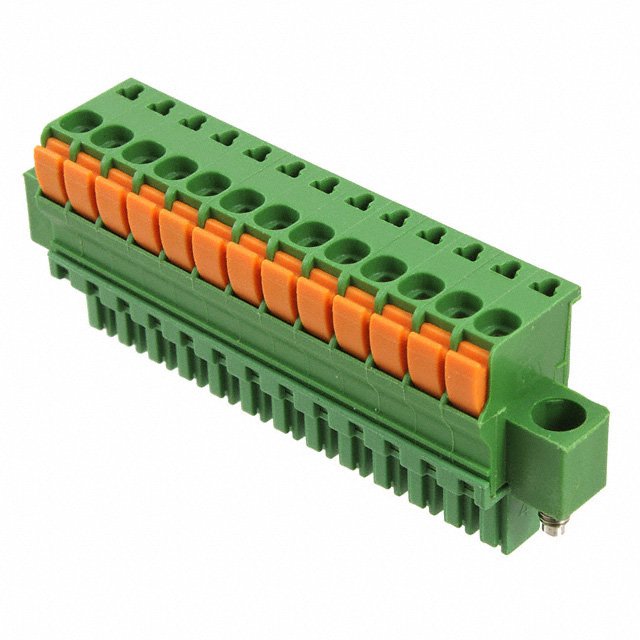

TE Connectivity Raychem Cable Protection 1-1986723-3	Push-In Spring Screwless - Leg Spring	300 V	Free Hanging (In-Line)	11.66 mm	0.459 in	Polyamide (PA) Nylon	0.05 mm²	2 mm²	UL94 V-0	-40 °C	110 °C	Mating Flange	13	Tin	9 A	1	Plug Female Sockets	Green	3.5 mm	0.138 in	Copper Alloy	14 AWG	30 AWG	13

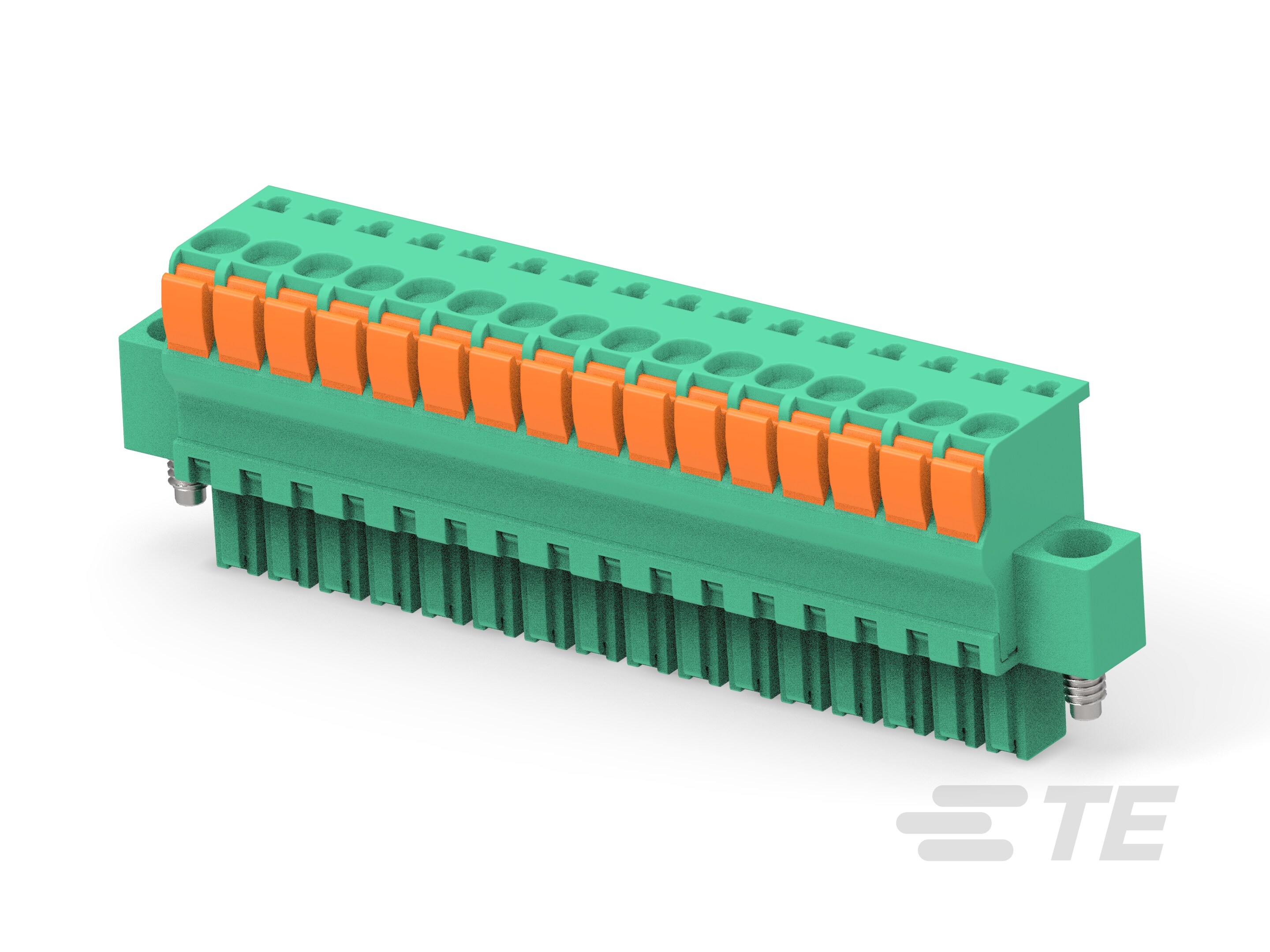

TE Connectivity Raychem Cable Protection 1-1986723-6	Push-In Spring Screwless - Leg Spring	300 V	Free Hanging (In-Line)	11.66 mm	0.459 in	Polyamide (PA) Nylon	0.05 mm²	2 mm²	UL94 V-0	-40 °C	110 °C	Mating Flange	16	Tin	9 A	1	Plug Female Sockets	Green	3.5 mm	0.138 in	Copper Alloy	14 AWG	30 AWG		16
TE Connectivity Raychem Cable Protection 1-1986723-0	Push-In Spring Screwless - Leg Spring	300 V	Free Hanging (In-Line)	11.66 mm	0.459 in	Polyamide (PA) Nylon	0.05 mm²	2 mm²	UL94 V-0	-40 °C	110 °C	Mating Flange	10	Tin	9 A	1	Plug Female Sockets	Green	3.5 mm	0.138 in	Copper Alloy	14 AWG	30 AWG	10
TE Connectivity Raychem Cable Protection 1-1986723-2	Push-In Spring Screwless - Leg Spring	300 V	Free Hanging (In-Line)	11.66 mm	0.459 in	Polyamide (PA) Nylon	0.05 mm²	2 mm²	UL94 V-0	-40 °C	110 °C	Mating Flange	12	Tin	9 A	1	Plug Female Sockets	Green	3.5 mm	0.138 in	Copper Alloy	14 AWG	30 AWG	12
