SML-LXR851 Series

Manufacturer: Lumex Opto/Components Inc.

Catalog

LED GREEN/YELLOW CLEAR SMD R/A

Part	Height (Max) [z]	Lens Color	Mounting Type	Lens Style	Supplier Device Package	Color	Lens Transparency	Size / Dimension [x]	Size / Dimension [y]	Current - Test	Package / Case	Wavelength - Dominant	Lens Size [y]	Lens Size [x]	Viewing Angle	Height (Max) [Max] [z]	Configuration	Millicandela Rating	Voltage - Forward (Vf) (Typ)	Wavelength - Peak	Current - Test [custom]	Current - Test [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Current - Test
Lumex Opto/Components Inc. SML-LXR851SYSUGCTR	1 mm	Colorless	Right Angle Surface Mount	Rectangle with Flat Top	Surface Mount Right Angle	Green Yellow	Clear	3 mm	2 mm	20 mA	2-SMD No Lead	574 nm 590 nm	1 mm	2 mm	120 °
Lumex Opto/Components Inc. SML-LXR851SISUGWTR		White	Right Angle Surface Mount	Rectangle with Domed Top	2-SMD	Green Red	Diffused	3 mm	2 mm		2-SMD No Lead		1 mm	2 mm	120 °	2 mm	Common Anode	15 mcd 30 mcd	2 V 2.2 V	574 nm 636 nm	20 mA	20 mA
Lumex Opto/Components Inc. SML-LXR851SOC-TR	1 mm	Colorless	Right Angle Surface Mount	Rectangle with Domed Top	Surface Mount Right Angle		Clear	3 mm	2 mm	20 mA	2-SMD No Lead		1 mm	2 mm	160 °		Standard	75 mcd	2 V	610 nm
Lumex Opto/Components Inc. SML-LXR851SIC-TR	1 mm	Colorless	Right Angle Surface Mount	Rectangle with Domed Top	Surface Mount Right Angle	Red	Clear	3 mm	2 mm	20 mA	2-SMD No Lead		1 mm	2 mm	160 °		Standard	70 mcd	2 V	636 nm
Lumex Opto/Components Inc. SML-LXR851SRC-TR	1 mm	Colorless	Right Angle Surface Mount	Rectangle with Domed Top	Surface Mount Right Angle	Red	Clear	3 mm	2 mm	20 mA	2-SMD No Lead		1 mm	2 mm	160 °		Standard	33 mcd	1.7 V	660 nm

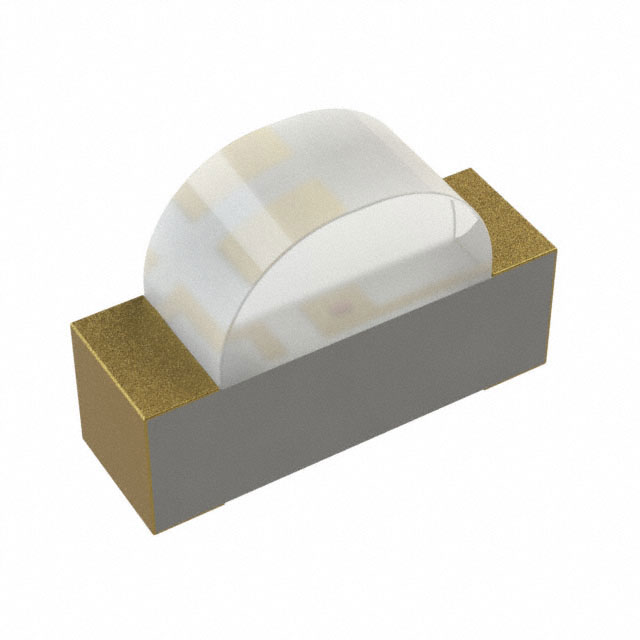

Lumex Opto/Components Inc. SML-LXR851SGC-TR	1 mm	Colorless	Right Angle Surface Mount	Rectangle with Domed Top	Surface Mount Right Angle	Green	Clear	3 mm	2 mm	20 mA	2-SMD No Lead		1 mm	2 mm	120 °		Standard	16 mcd	2.1 V	565 nm

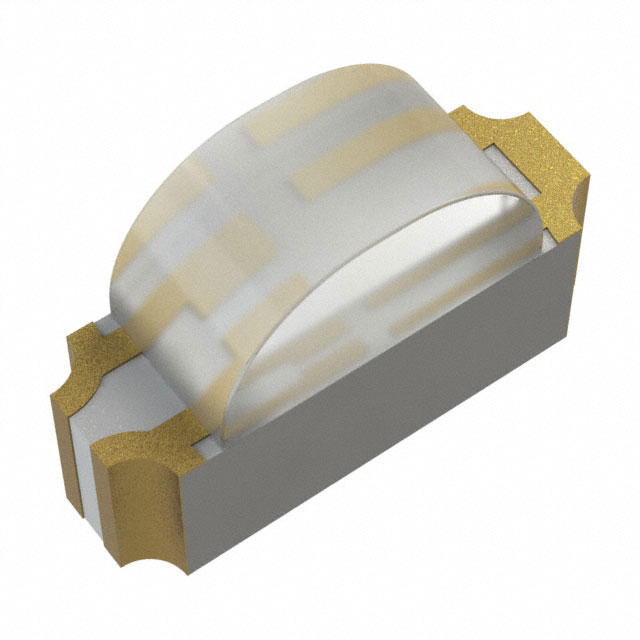

Lumex Opto/Components Inc. SML-LXR851SISGC-TR	1 mm	Colorless	Right Angle Surface Mount	Rectangle with Domed Top	SMD	Green Red	Clear	3 mm	2 mm		2-SMD No Lead		1 mm	2 mm	120 °		Common Anode		2 V 2.1 V	565 nm 636 nm	20 mA	20 mA	50 mcd	20 mcd
Lumex Opto/Components Inc. SML-LXR851SIUPGUBC	1 mm	Colorless	Surface Mount	Rectangle with Domed Top	Surface Mount Right Angle	Blue Green Red	Clear	3 mm	2 mm		2-SMD No Lead		1 mm	2 mm	120 °		Common Anode		2 V 3.5 V 3.5 V	470 nm 525 nm 636 nm			90 mcd	180 mcd	70 mcd	20mA Blue 20mA Green 20mA Red
Lumex Opto/Components Inc. SML-LXR851SGSIC-TR	1 mm	Colorless	Right Angle Surface Mount	Rectangle with Domed Top	2-SMD	Green Red	Clear	3 mm	2 mm		2-SMD No Lead		1 mm	2 mm	120 °		Common Anode		2 V 2.2 V	565 nm 636 nm	20 mA	20 mA	50 mcd	20 mcd
Lumex Opto/Components Inc. SML-LXR851USBC-TR	1 mm	Colorless	Right Angle Surface Mount	Rectangle with Domed Top	Surface Mount Right Angle	Blue	Clear	3 mm	2 mm	20 mA	2-SMD No Lead		1 mm	2 mm	160 °		Standard	30 mcd	3.5 V	470 nm
