9TJ48 Series
Manufacturer: Sanyo Denki America Inc.
Beta
⌘K

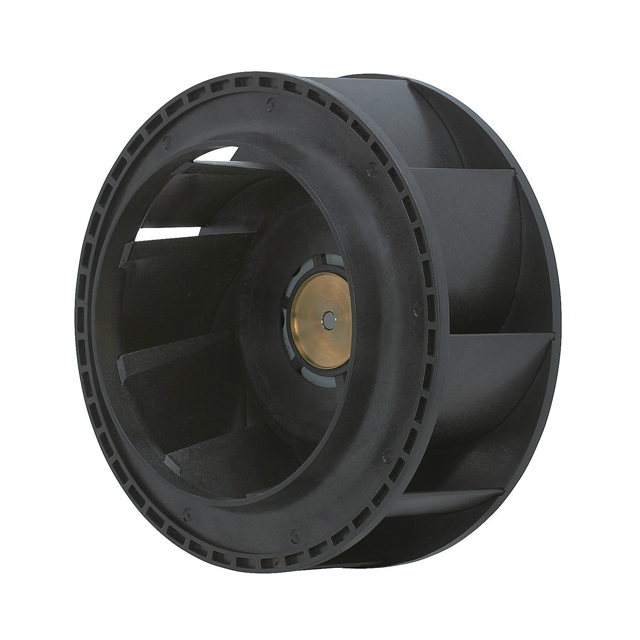

DC MOTORIZED IMPELLER CENTRIFUGAL BALL BEARING 48V 36V TO 72V 226CFM 61DB 133 X 91MM SENSOR
| Part | Material - Frame | Material - Blade | Lifetime @ Temp. | Voltage Range [Max] | Voltage Range [Min] | Current Rating (Amps) | Air Flow | Air Flow | Approval Agency | Width [x] | Power (Watts) | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [diameter] | Size / Dimension | Voltage - Rated | Features | Weight [custom] | Weight [custom] | Fan Type | Static Pressure | Static Pressure | Termination | Noise | Bearing Type | RPM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sanyo Denki America Inc. | Aluminum | Plastic | 40000 Hrs | 72 VDC | 36 VDC | 0.55 A | 6.33 m³/min | 226 CFM | CSA TUV UL | 91 mm | 26.4 W | -20 ░C | 70 °C | 133 mm | Round | 48 VDC | PWM Control Speed Sensor (Tach) | 680.4 g | 1.5 lbs | Motorized Impellers | 396.1 Pa | 1.59 in H2O | 4 Wire Leads | 61 dB(A) | Ball | 4150 RPM |
