PRPC028 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER R/A 28POS 2.54MM

Part	Contact Finish Thickness - Post	Termination	Contact Type	Material Flammability Rating	Number of Positions Loaded	Insulation Color	Contact Length - Mating	Contact Length - Mating	Contact Length - Post	Contact Length - Post	Number of Positions	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Number of Rows	Fastening Type	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Style	Contact Shape	Contact Finish - Mating	Mounting Type	Contact Finish - Post	Insulation Material	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Shrouding	Contact Material	Number of Rows [custom]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Overall Contact Length [x]	Overall Contact Length [x]	Overall Contact Length	Overall Contact Length

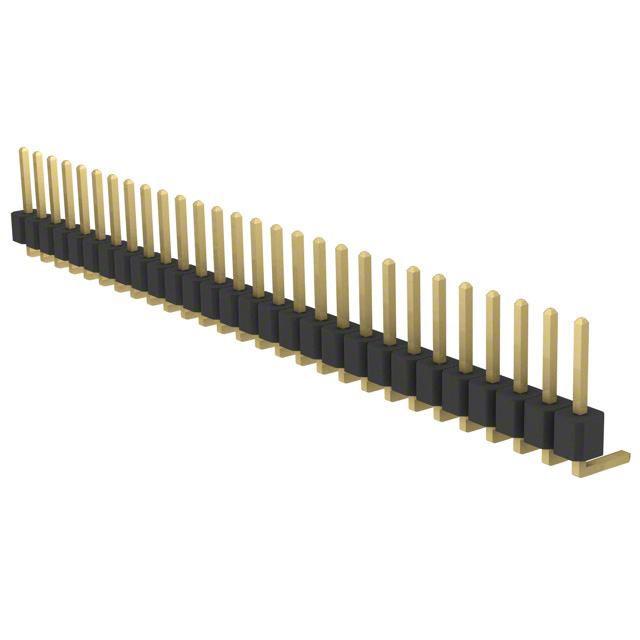

Sullins Connector Solutions PRPC028SBAN-M71RC	Flash	Solder	Male Pin	UL94 V-0	All	Black	0.23 in	5.84 mm	3.05 mm	0.12 in	28	0.098 "	2.5 mm	Flash	1	Push-Pull	Header Breakaway	-40 C	105 ░C	Board to Board Cable	Square	Gold	Right Angle Through Hole	Gold	Polybutylene Terephthalate (PBT)	3 A	0.1 "	2.54 mm	Unshrouded	Brass

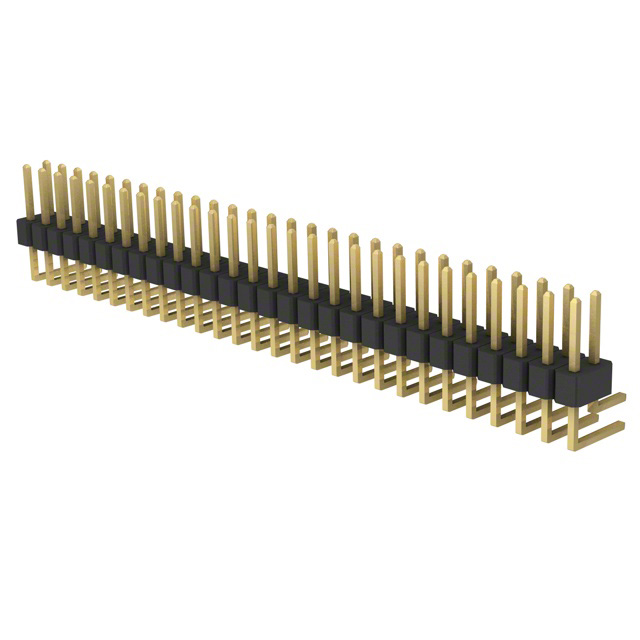

Sullins Connector Solutions PRPC028DBAN-M71RC	Flash	Solder	Male Pin	UL94 V-0	All	Black	0.23 in	5.84 mm	3.05 mm	0.12 in	56	0.197 "	5 mm	Flash		Push-Pull	Header Breakaway	-40 C	105 ░C	Board to Board Cable	Square	Gold	Right Angle Through Hole	Gold	Polybutylene Terephthalate (PBT)	3 A	0.1 "	2.54 mm	Unshrouded	Brass	2	0.1 in	2.54 mm

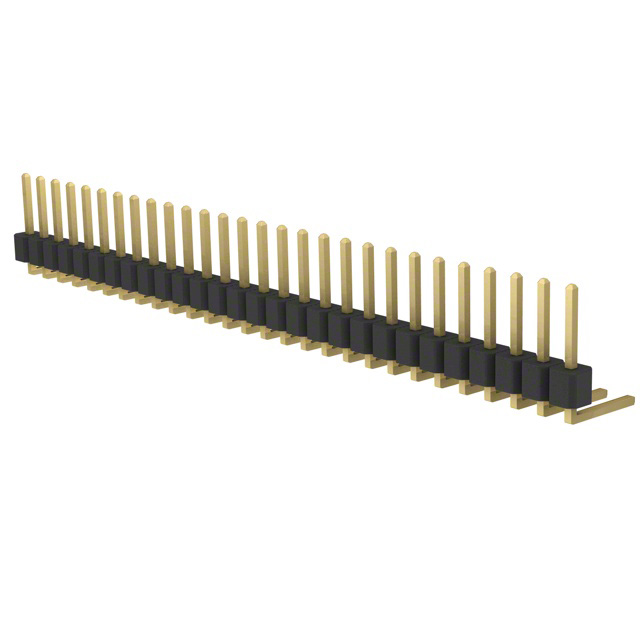

Sullins Connector Solutions PRPC028SBBN-M71RC	Flash	Solder	Male Pin	UL94 V-0	All	Black	0.23 in	5.84 mm	5.58 mm	0.22 in	28	0.098 "	2.5 mm	Flash	1	Push-Pull	Header Breakaway	-40 C	105 ░C	Board to Board Cable	Square	Gold	Right Angle Through Hole	Gold	Polybutylene Terephthalate (PBT)	3 A	0.1 "	2.54 mm	Unshrouded	Brass
Sullins Connector Solutions PRPC028DFAN-RC	Flash	Solder	Male Pin	UL94 V-0	All	Black	0.318 in	8.08 mm	3.05 mm	0.12 in	56	0.098 "	2.5 mm	Flash		Push-Pull	Header Breakaway	-40 C	105 ░C	Board to Board Cable	Square	Gold	Through Hole	Gold	Polybutylene Terephthalate (PBT)	3 A	0.1 "	2.54 mm	Unshrouded	Brass	2	0.1 in	2.54 mm	13.63 mm	0.537 in

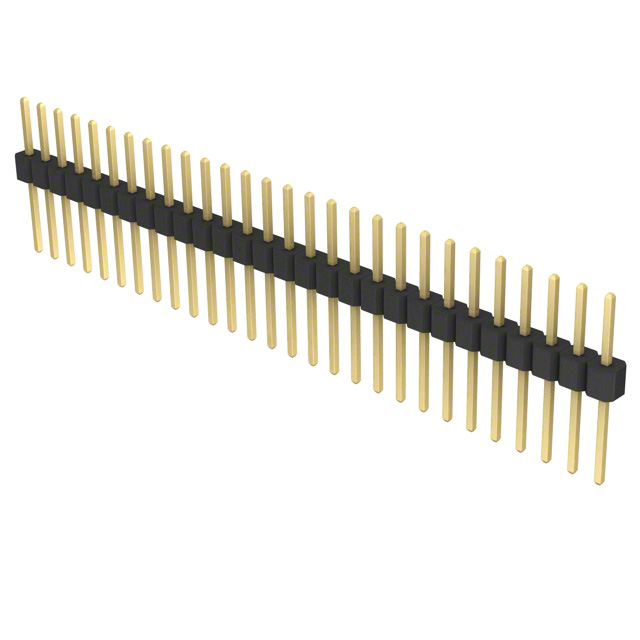

Sullins Connector Solutions PRPC028SACN-RC	Flash	Solder	Male Pin	UL94 V-0	All	Black	0.23 in	5.84 mm	8.13 mm	0.32 in	28	0.098 "	2.5 mm	Flash	1	Push-Pull	Header Breakaway	-40 C	105 ░C	Board to Board Cable	Square	Gold	Through Hole	Gold	Polybutylene Terephthalate (PBT)	3 A	0.1 "	2.54 mm	Unshrouded	Brass				16.47 mm	0.648 in

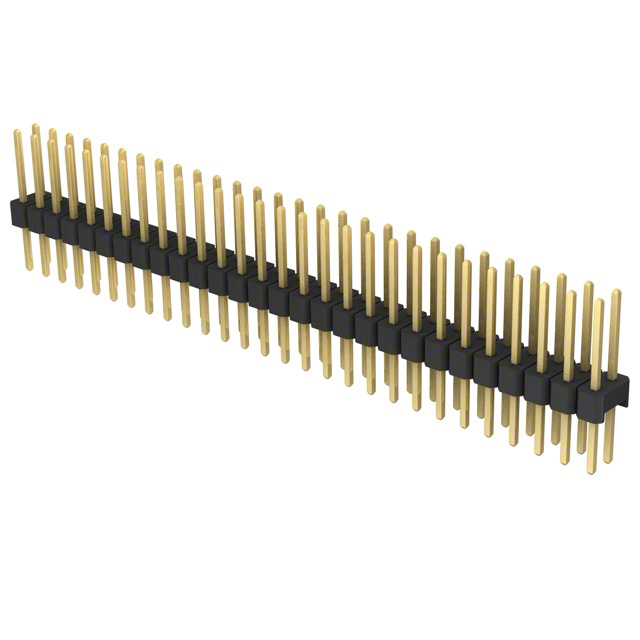

Sullins Connector Solutions PRPC028DFBN-RC	Flash	Solder	Male Pin	UL94 V-0	All	Black	0.318 in	8.08 mm	5.58 mm	0.22 in	56	0.098 "	2.5 mm	Flash		Push-Pull	Header Breakaway	-40 C	105 ░C	Board to Board Cable	Square	Gold	Through Hole	Gold	Polybutylene Terephthalate (PBT)	3 A	0.1 "	2.54 mm	Unshrouded	Brass	2	0.1 in	2.54 mm			0.637 in	16.17 mm
