216005 Series

Catalog

CONN MODULAR JACK F 8 POS 1.02MM IDT RA PANEL MOUNT 8 TERMINAL 1 PORT CAT 3 BOX

Part	Orientation	Number of Ports	Number of Rows	Termination	Contact Material	Connector Type	Tab Direction	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions/Contacts	LED Color	Contact Finish	Shielding	Housing Material	Contact Finish Thickness	Contact Finish Thickness	Features

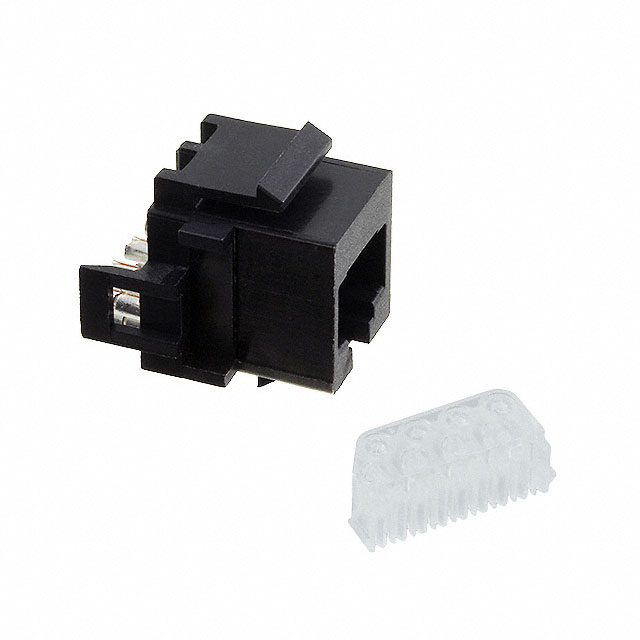

TE Connectivity Raychem Cable Protection 216005-4	Straight	1	1	Barrel Terminals	Phosphor Bronze	Jack	User Selectable	-40 °C	70 °C	8p8c (RJ45 Ethernet)	Does Not Contain LED	Gold	Unshielded	Polybutylene Terephthalate (PBT)	1.25 µm	49.3 µin	Panel Lock Toolless
TE Connectivity Raychem Cable Protection 216005-1	Straight	1	1	Barrel Terminals	Phosphor Bronze	Jack	User Selectable	-40 °C	70 °C	8p8c (RJ45 Ethernet)	Does Not Contain LED	Gold	Unshielded	Polybutylene Terephthalate (PBT)	1.25 µm	49.3 µin	Panel Lock Toolless
