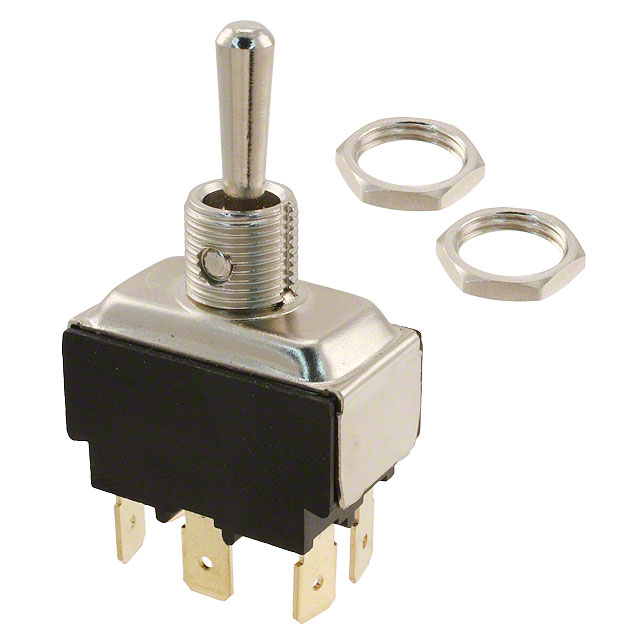

ST246D Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH TOGGLE DPDT 20A 125V
| Part | Actuator Material | Electrical Life | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Circuit | Bushing Thread | Actuator Type | Voltage Rating - AC | Current Rating (Amps) | Panel Cutout Dimensions [diameter] | Switch Function | Illumination | Actuator Length [x] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | Brass Nickel Plated | 6000 Cycles | 0 °C | 85 °C | Quick Connect - 0.250" (6.3mm) | DPDT | M12 x 1 | Standard Round | 125 V | 20 A | 12 mm | On-Off-On | Non-Illuminated | 17.5 mm | Panel Mount |
