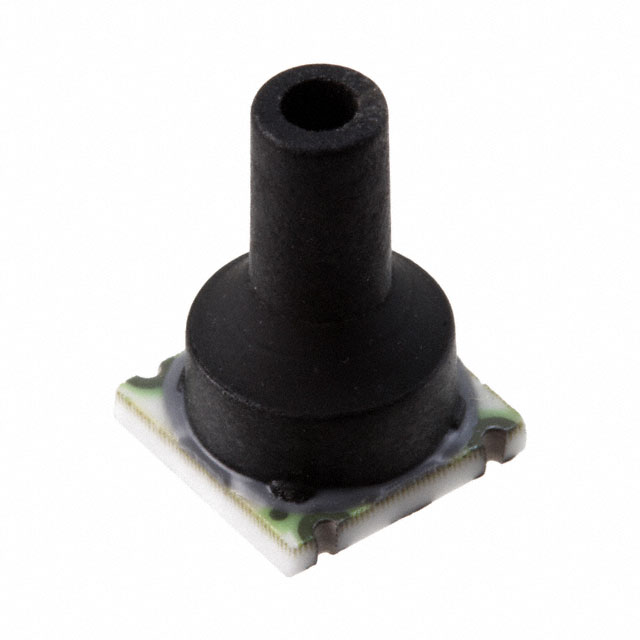

TBPLANN Series

Catalog

PRESSURE SENSOR, UNAMPLIFIED, GAUGE, 100 PSI

Part	Output Type	Output [Max]	Output [Min]	Port Style	Accuracy	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Pressure Type	Package / Case	Maximum Pressure [Max]	Maximum Pressure	Voltage - Supply [Max]	Voltage - Supply [Min]	Port Size	Port Size	Port Size	Supplier Device Package	Applications	Features	Operating Pressure	Operating Pressure	Termination Style
Honeywell Sensing and Productivity Solutions TBPLANN100PGUCV	Wheatstone Bridge	25.5 mV	0 mV	Barbed	0.15 %	125 °C	-40 C	Surface Mount	Vented Gauge	6-SMD No Lead Top Port	245 PSI	1689.22 kPa	12 V	1.5 V	Male Tube	2.74 mm	0.11 in	6-SMT	Board Mount	Temperature Compensated	689.48 kPa	100 PSI	SMD (SMT) Tab
Honeywell Sensing and Productivity Solutions TBPLANN030PGUCV	Wheatstone Bridge	27.5 mV	0 mV	Barbed	0.15 %	125 °C	-40 C	Surface Mount	Vented Gauge	6-SMD No Lead Top Port	115 PSI	792.9 kPa	12 V	1.5 V	Male Tube	2.74 mm	0.11 in	6-SMT	Board Mount	Temperature Compensated	206.84 kPa	30 PSI	SMD (SMT) Tab
