392-048 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FMALE 48POS 0.100
| Part | Material - Insulation | Termination Rows [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Read Out | Termination | Color | Mounting Type | Card Thickness [Max] | Card Thickness [Min] | Contact Type | Number of Rows [custom] | Contact Finish Thickness | Contact Finish Thickness | Card Type | Features | Contact Finish | Number of Positions | Gender | Flange Feature | Pitch | Pitch | Contact Material | Number of Positions/Bay/Row | Termination Rows | Number of Rows | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 2 | -40 C | 105 ░C | Dual | Solder Eyelet(s) | Black | Board Edge Straddle Mount | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 2 | 0.25 Ám | 10 Áin | Non Specified - Dual Edge | Card Extender | Gold | 48 | Female | Flush Mount M3 Threaded Insert Top Opening | 0.1 " | 2.54 mm | Copper Alloy | 24 | ||||

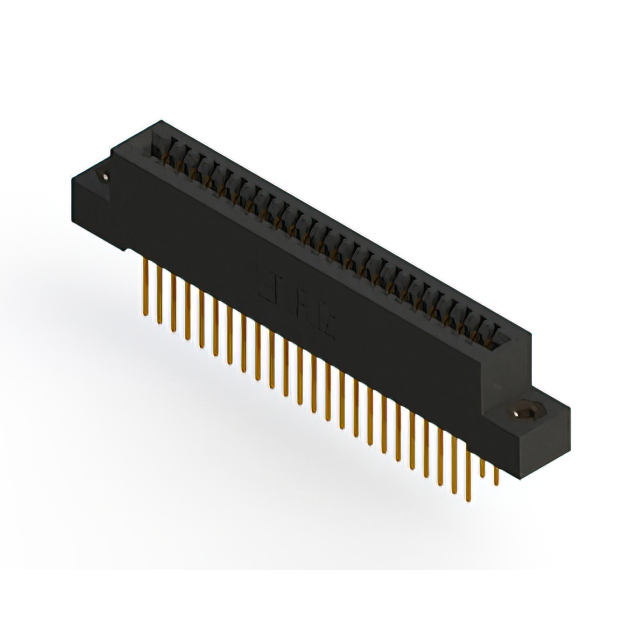

 EDAC Inc. | Polyester Thermoplastic | 2 | -40 C | 105 ░C | Dual | Solder | Black | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 2 | 0.25 Ám | 10 Áin | Non Specified - Dual Edge | Gold | 48 | Female | 4-40 Flush Mount Threaded Insert Top Opening | 0.1 " | 2.54 mm | Copper Alloy | 24 | |||||

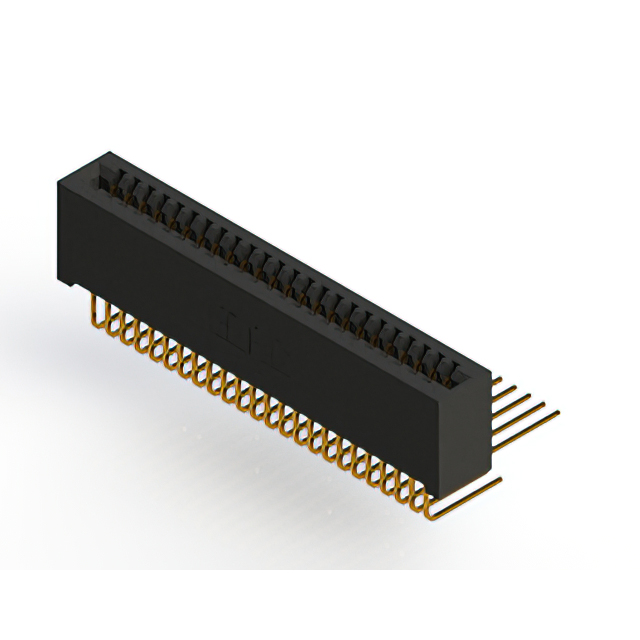

 EDAC Inc. | Polyester Thermoplastic | 2 | -40 C | 105 ░C | Dual | Solder Wire Wrap | Black | Right Angle Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 2 | 0.25 Ám | 10 Áin | Non Specified - Dual Edge | Gold | 48 | Female | 0.1 " | 2.54 mm | Copper Alloy | 24 | ||||||
 EDAC Inc. | Polyester Thermoplastic | -40 C | 105 ░C | Single | Solder | Black | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 0.25 Ám | 10 Áin | Non Specified - Single Edge | Gold | 48 | Female | Floating Bobbin Flush Mount | 0.1 " | 2.54 mm | Copper Alloy | 48 | 1 | 1 | 0.116 " | 2.95 mm | |||
 EDAC Inc. | Polyester Thermoplastic | 2 | -40 C | 105 ░C | Dual | Solder Eyelet(s) | Black | Board Edge Straddle Mount | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 2 | 0.25 Ám | 10 Áin | Non Specified - Dual Edge | Card Extender | Gold | 48 | Female | 4-40 Flush Mount Threaded Insert Top Opening | 0.1 " | 2.54 mm | Copper Alloy | 24 | ||||
 EDAC Inc. | Polyester Thermoplastic | 2 | -40 C | 105 ░C | Dual | Solder | Black | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 2 | 0.25 Ám | 10 Áin | Non Specified - Dual Edge | Gold | 48 | Female | Flush Mount M3 Threaded Insert Top Opening | 0.1 " | 2.54 mm | Copper Alloy | 24 | |||||
 EDAC Inc. | Polyester Thermoplastic | 2 | -40 C | 105 ░C | Dual | Solder | Black | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 2 | 0.25 Ám | 10 Áin | Non Specified - Dual Edge | Gold | 48 | Female | Flush Mount Top Opening Unthreaded | 0.1 " | 2.54 mm | Copper Alloy | 24 | 0.156 " | 3.96 mm | |||
 EDAC Inc. | Polyester Thermoplastic | 2 | -40 C | 105 ░C | Dual | Solder | Black | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 2 | 0.25 Ám | 10 Áin | Non Specified - Dual Edge | Gold | 48 | Female | 4-40 Flush Mount Threaded Insert Top Opening | 0.1 " | 2.54 mm | Copper Alloy | 24 | |||||
 EDAC Inc. | Polyester Thermoplastic | -40 C | 105 ░C | Single | Solder | Black | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 0.25 Ám | 10 Áin | Non Specified - Single Edge | Gold | 48 | Female | 0.1 " | 2.54 mm | Copper Alloy | 48 | 1 | 1 | ||||||
 EDAC Inc. | Polyester Thermoplastic | -40 C | 105 ░C | Single | Wire Wrap | Black | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 0.25 Ám | 10 Áin | Non Specified - Single Edge | Gold | 48 | Female | Flush Mount Top Opening Unthreaded | 0.1 " | 2.54 mm | Copper Alloy | 48 | 1 | 1 | 0.156 " | 3.96 mm |
