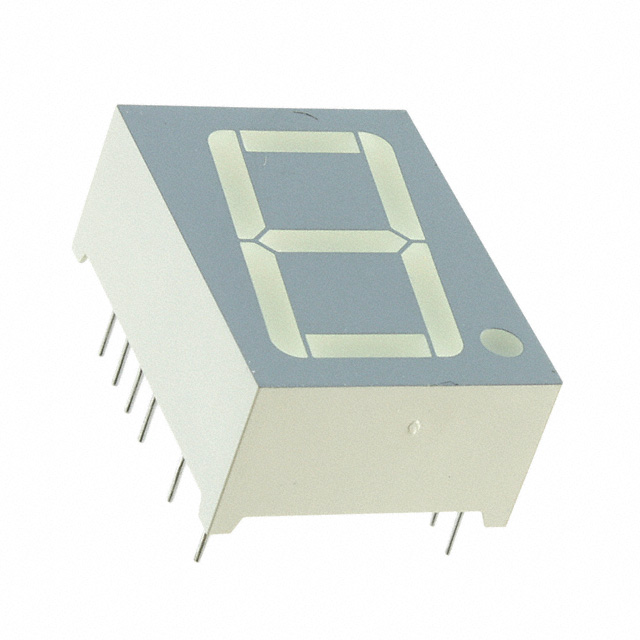

SA08-21 Series

Catalog

DISPLAY 7SEG 0.8" SGL GRN 18DIP

Part	Common Pin	Package / Case [x]	Package / Case [x]	Package / Case	Voltage - Forward (Vf) (Typ)	Wavelength - Peak	Display Type	Digit/Alpha Size	Digit/Alpha Size	Current - Test	Millicandela Rating	Number of Characters	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Power Dissipation (Max) [Max]	Color	Package / Case
Kingbright SA08-21GWA	Common Anode	15.24 mm	0.6 in	18-DIP	2.2 V	565 nm	7-Segment	0.8 in	20.32 mm	20 mA	13 mcd	1	0.732 in 18.6 mm	0.984 in 25 mm	0.417 in 10.6 mm	62.5 mW	Green
Kingbright SA08-21EWA	Common Anode	15.24 mm	0.6 in	18-DIP	2 V	627 nm	7-Segment	0.8 in	20.32 mm	20 mA	8 mcd	1	0.732 in 18.6 mm	0.984 in 25 mm	0.417 in 10.6 mm	75 mw	Red
Kingbright SA08-21YWA	Common Anode	15.24 mm	0.6 in	18-DIP	2.1 V	590 nm	7-Segment	0.8 in	20.32 mm	20 mA	7.9 mcd	1	0.732 in 18.6 mm	0.984 in 25 mm	0.417 in 10.6 mm	75 mw	Yellow
Kingbright SA08-21CGKWA	Common Anode	15.24 mm	0.6 in	18-DIP	2.1 V		7-Segment	0.8 in	20.32 mm	20 mA	25 mcd	1	0.732 in 18.6 mm	0.984 in 25 mm	0.417 in 10.6 mm	75 mw	Green

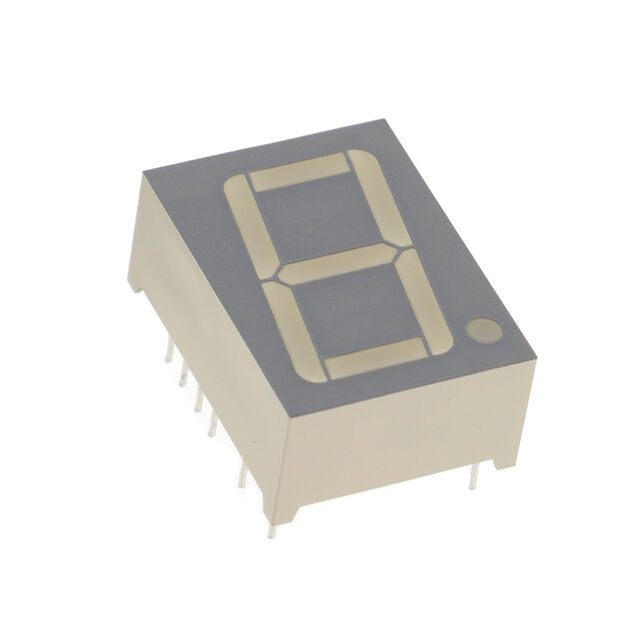

Kingbright SA08-21SURKWA	Common Anode	15.24 mm	0.6 in	18-DIP	1.95 V	645 nm	7-Segment	0.8 in	20.32 mm	20 mA	61 mcd	1	0.732 in 18.6 mm	0.984 in 25 mm	0.417 in 10.6 mm	75 mw	Red
Kingbright SA08-21SRWA	Common Anode			15 Leads 18-DIP	1.85 V	660 nm	7-Segment	0.8 in	20.32 mm	20 mA	36 mcd	1	0.732 in 18.6 mm	0.984 in 25 mm	0.417 in 10.6 mm	75 mw	Red	0.6 in 15.24 mm
