50D90 Series
Manufacturer: Grayhill Inc.
Beta
⌘K

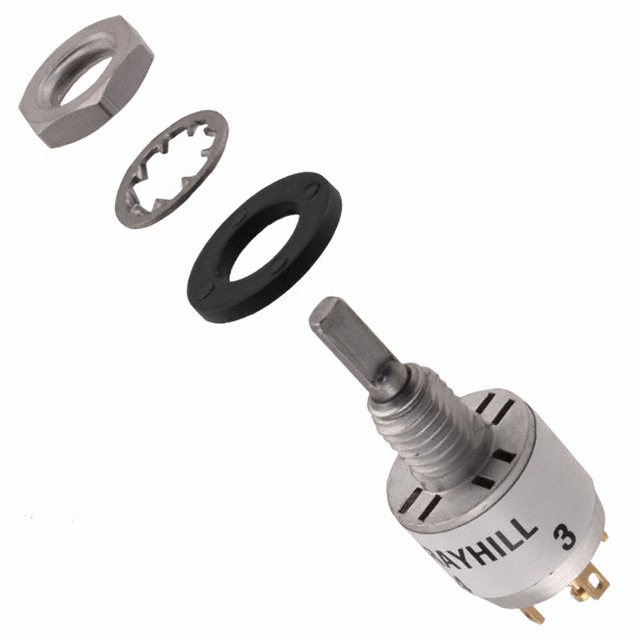

SWITCH ROTARY 2-4POS 150MA 115V
| Part | Panel Cutout Dimensions [diameter] | Contact Timing | Voltage Rating - DC | Index Stops | Number of Positions [Min] | Number of Positions [Max] | Current Rating (Amps) | Contact Finish | Actuator Length [x] | Number of Poles per Deck | Number of Decks [custom] | Angle of Throw | Voltage Rating - AC | Depth Behind Panel [custom] | Circuit per Deck | Actuator Type | Mounting Type | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Grayhill Inc. | 6.45 mm | Non-Shorting (BBM) | 28 V | Adjustable | 2 | 4 | 150 mA 200 mA | Gold | 9.53 mm | 1 | 1 | 90 ° | 115 V | 18.77 mm | SP4T | Flatted (3.17mm Dia) | Panel Mount | Solder Lug |
