NCP10970 Series

Dual output HV Buck Switcher

Catalog

Dual output HV Buck Switcher

Part	Outputs and Type	Outputs and Type	Current - Output	Board Type	Voltage - Input [Min]	Voltage - Input [Max]	Regulator Topology	Utilized IC / Part	Main Purpose	Supplied Contents	Voltage - Output	Applications	Supplier Device Package	Package / Case	Package / Case	Mounting Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Current - Supply	Contents

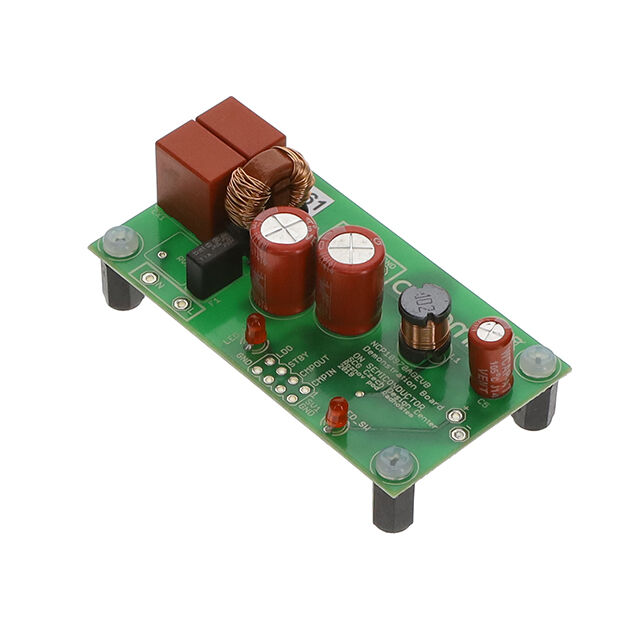

ON Semiconductor NCP10970AGEVB	2	Non-Isolated	50 mA 100 mA	Fully Populated	85 VAC	440 VAC	Buck	NCP10970A	DC/DC Step Down with LDO	Board(s)	3.3 V 15 VDC

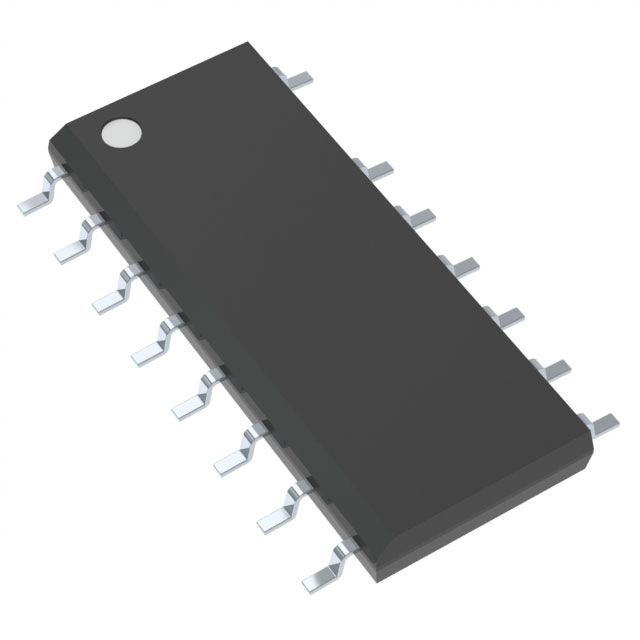

ON Semiconductor NCP10970B1DR2G												Lighting	16-SOIC	0.154 " 3.9 mm 15 Leads	16-SOIC	Surface Mount	7 V	9.5 V	-40 °C	125 ¯C	340 µA

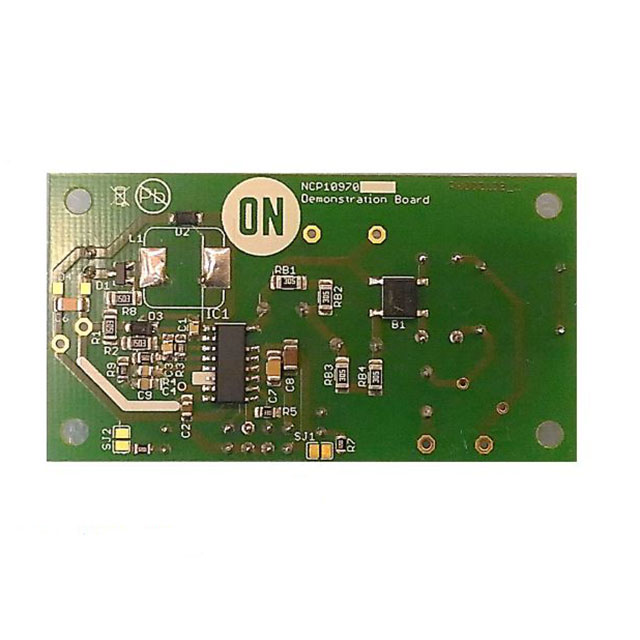

ON Semiconductor NCP10970BGEVB		2 Non-Isolated Outputs	50 mA 100 mA		30 VAC	440 VAC	Buck	NCP10970B	AC/DC Converter with LDO		5 V 16 V											Board(s)
ON Semiconductor NCP10970A1DR2G												Lighting	16-SOIC	0.154 " 3.9 mm 15 Leads	16-SOIC	Surface Mount	7 V	9.5 V	-40 °C	125 ¯C	340 µA

Catalog

Dual output HV Buck Switcher

Key Features

• Highly Integrated multiple blocks - 670V Input Buck Switcher - 3.3 V/100 mA LDO (A1 option) - 5.0 V/100 mA LDO (B1 option)

• Dual Output Buck

• Standby mode by MCU

• Protections/Utility functions - Fault In/Out Pin – fast response comparator - Demagnetization detection - Short-circuit Protection on Buck,LDO - Internal thermal shutdown

• Patented VRAW generation for LDO Input

Description

The NCP10970 is an auxiliary power solution which optimized for micro controller unit or DSP based system. It is included a high-voltage switcher for 9~16 VOUT, a linear regulator for 3.3 / 5.0 VOUTand over-temperature/ over-current protection on 16SOP. NCP1097x provide the best class standby power.
