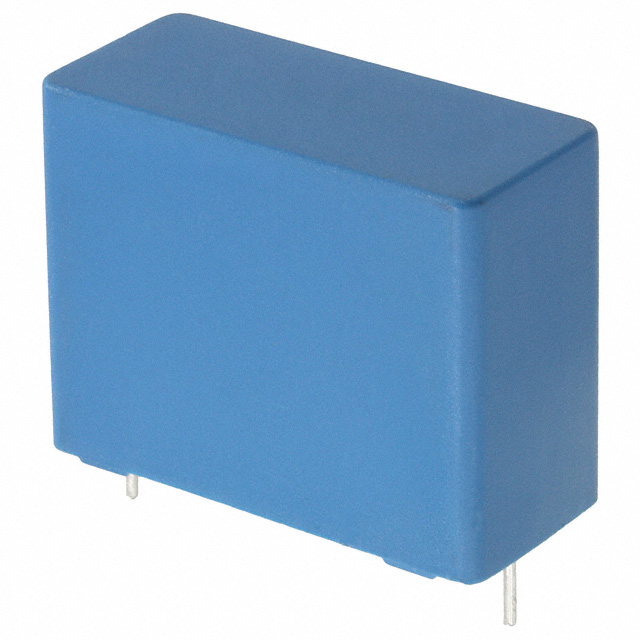

B32776E Series

Catalog

CAP FILM 25UF 10% 575VDC RADIAL

Part	Capacitance	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Termination	ESR (Equivalent Series Resistance)	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Mounting Type	Voltage Rating - DC	Applications	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Features	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max)
EPCOS - TDK Electronics B32776E5256K000	25 µF	37.5 mm	1.476 in	1.555 in	39.5 mm	Radial	PC Pins	7.4 mOhms	10 %	-40 C	105 ░C	Polypropylene (PP) Metallized	Through Hole	575 V	DC Filtering DC Link	1.654 in	42 mm	0.787 in	20 mm	Long Life
EPCOS - TDK Electronics B32776E5456K000	45 µF	37.5 mm	1.476 in			Radial	PC Pins	4.4 mOhm	10 %	-40 C	105 ░C	Polypropylene (PP) Metallized	Through Hole	575 V	DC Filtering DC Link	1.654 in	42 mm	1.181 in	30 mm	Long Life	1.772 "	45 mm
EPCOS - TDK Electronics B32776E8146K000	14 µF	37.5 mm	1.476 in	1.28 in	32.5 mm	Radial	PC Pins	11.5 mOhms	10 %	-40 C	105 ░C	Polypropylene (PP) Metallized	Through Hole	800 V	DC Filtering DC Link	1.634 in	41.5 mm	0.709 in	18 mm	Long Life
EPCOS - TDK Electronics B32776E5306K000	30 µF	37.5 mm	1.476 in			Radial	PC Pins	6.1 mOhm	10 %	-40 C	105 ░C	Polypropylene (PP) Metallized	Through Hole	575 V	DC Filtering DC Link	1.654 in	42 mm	1.102 "	28 mm	Long Life	1.457 in		37 mm
EPCOS - TDK Electronics B32776E8206J000	20 µF	37.5 mm	1.476 in			Radial	PC Pins	7.8 mOhms	5 %	-40 C	105 ░C	Polypropylene (PP) Metallized	Through Hole	800 V	DC Filtering DC Link	1.654 in	42 mm	1.102 "	28 mm	Long Life	1.457 in		37 mm
EPCOS - TDK Electronics B32776E4356K000	35 µF	37.5 mm	1.476 in			Radial	PC Pins	6.4 mOhms	10 %	-40 C	105 ░C	Polypropylene (PP) Metallized	Through Hole	450 V	DC Filtering DC Link	1.654 in	42 mm	1.102 "	28 mm	Long Life	1.457 in		37 mm
EPCOS - TDK Electronics B32776E8256J000	25 µF	37.5 mm	1.476 in			Radial	PC Pins	6.4 mOhms	5 %	-40 C	105 ░C	Polypropylene (PP) Metallized	Through Hole	800 V	DC Filtering DC Link	1.654 in	42 mm	1.102 "	28 mm	Long Life	1.673 in	42.5 mm
EPCOS - TDK Electronics B32776E4306K000	30 µF	37.5 mm	1.476 in	1.555 in	39.5 mm	Radial	PC Pins	7.3 mOhms	10 %	-40 C	105 ░C	Polypropylene (PP) Metallized	Through Hole	450 V	DC Filtering DC Link	1.654 in	42 mm	0.787 in	20 mm	Long Life
EPCOS - TDK Electronics B32776E4606K000	60 µF	37.5 mm	1.476 in			Radial	PC Pins	4 mOhms	10 %	-40 C	105 ░C	Polypropylene (PP) Metallized	Through Hole	450 V	DC Filtering DC Link	1.654 in	42 mm	1.181 in	30 mm	Long Life	1.772 "	45 mm
