T599 Series
Manufacturer: KEMET
Beta
⌘K

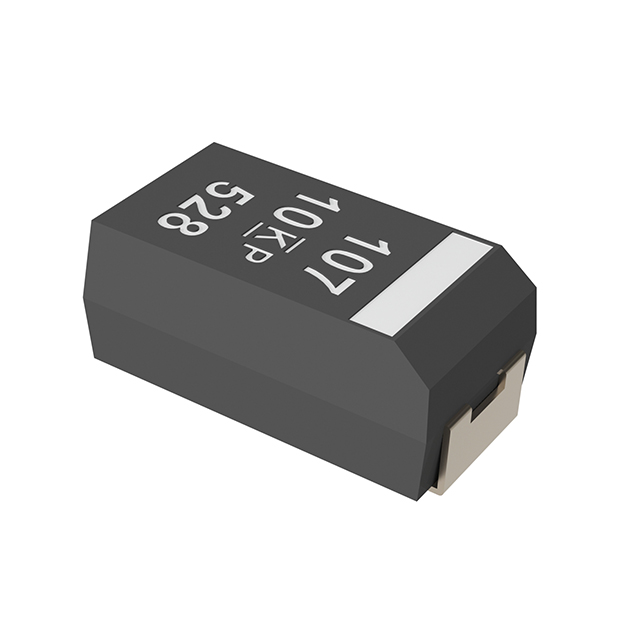

TANTALUM POLYMER CAPACITOR, 150 ΜF, ± 20%, 6 V, D, 0.025 OHM, 2917 [7343 METRIC]
| Part | Mounting Type | Features | Voltage - Rated | Ratings | Capacitance | Manufacturer Size Code | Type | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Tolerance | ESR (Equivalent Series Resistance) | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Lifetime @ Temp. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | Surface Mount | Automotive | 6.3 VDC | AEC-Q200 | 150 µF | D | Molded | 0.118 " | 3 mm | 2917 (7343 Metric) | -55 C | 150 °C | 20 % | 25 mOhm | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | 1000 Hrs |
 KEMET | Surface Mount | Automotive | 50 VDC | AEC-Q200 | 10 µF | D | Molded | 0.122 in | 3.1 mm | 2917 (7343 Metric) | -55 C | 150 °C | 20 % | 150 mOhm | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | 2000 Hrs |
