SA08304 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

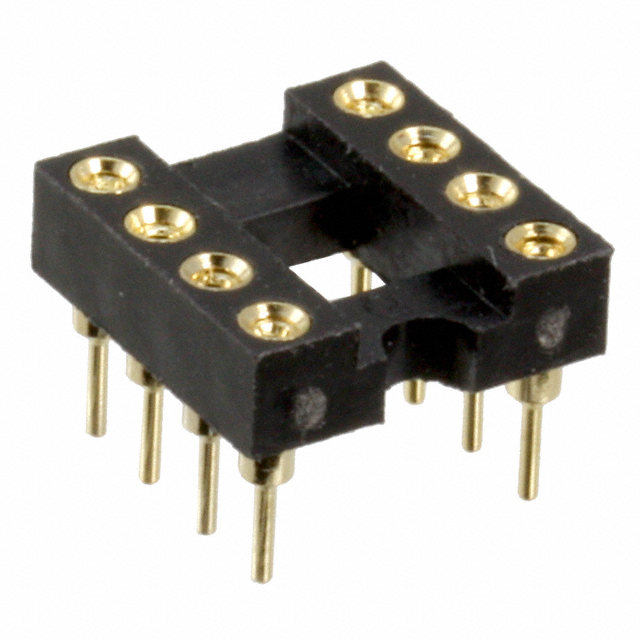

CONN IC DIP SOCKET 8POS GOLD
| Part | Contact Resistance | Material Flammability Rating | Current Rating (Amps) | Termination | Mounting Type | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Material - Post [custom] | Contact Finish - Post | Housing Material | Pitch - Mating | Pitch - Mating | Type | Type | Type | Contact Finish Thickness - Mating | Features | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Mating | Pitch - Post | Pitch - Post | Number of Positions or Pins (Grid) | Number of Positions or Pins (Grid) [x] | Number of Positions or Pins (Grid) [y] | Contact Material - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | 4 mOhm | UL94 V-0 | 3 A | Solder | Through Hole | 2.03 µm | 80 µin | Brass | Gold | Glass Filled Polyester Thermoplastic | 0.1 " | 2.54 mm | 7.62 mm | 0.3 in | DIP | Flash | Open Frame | -40 C | 105 ░C | Gold | 0.1 in | 2.54 mm | 8 | 2 | 4 | Beryllium Copper |
