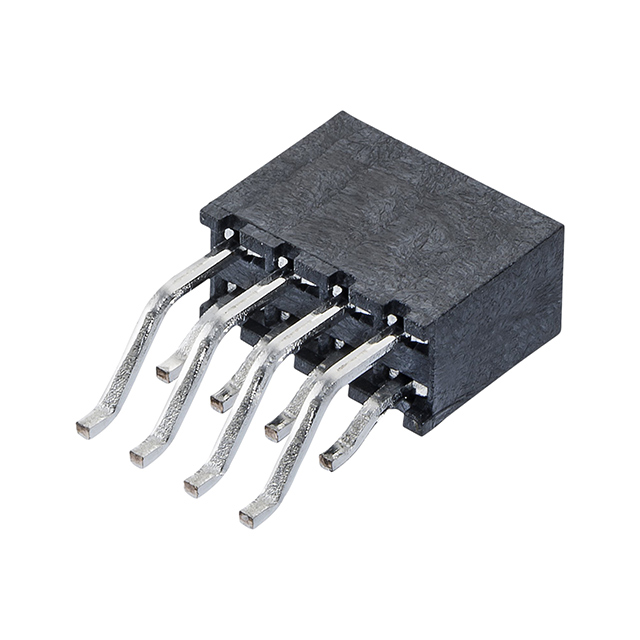

M22-655 Series

Catalog

CONN, R/A RCPT, 12POS, 2ROW, 2MM ROHS COMPLIANT: YES

Part	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape	Applications	Number of Rows [custom]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Number of Positions	Contact Finish - Post	Mounting Type	Contact Finish - Mating	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Termination	Pitch - Mating	Pitch - Mating	Insulation Color	Number of Positions Loaded	Connector Type	Insulation Height [z]	Insulation Height [z]	Row Spacing - Mating	Row Spacing - Mating	Fastening Type
Harwin Inc. M22-6550642R	Phosphor Bronze	2.03 µm	80 µin	Square	General Purpose	2	0.015 µm	0.59 µin	2 A	12	Tin	Right Angle Surface Mount	Gold	UL94 V-0	-40 C	105 ░C	Forked	Solder	0.079 "	2 mm	Black	All	Receptacle	4 mm	0.157 in	2 mm	0.079 in	Push-Pull

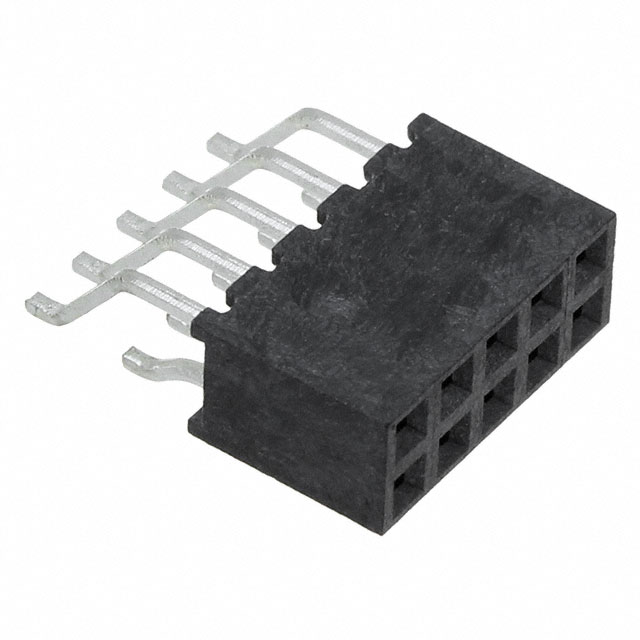

Harwin Inc. M22-6550542R	Phosphor Bronze	2.03 µm	80 µin	Square	General Purpose	2	0.015 µm	0.59 µin	2 A	10	Tin	Right Angle Surface Mount	Gold	UL94 V-0	-40 C	105 ░C	Forked	Solder	0.079 "	2 mm	Black	All	Receptacle	4 mm	0.157 in	2 mm	0.079 in	Push-Pull
Harwin Inc. M22-6550242R	Phosphor Bronze	2.03 µm	80 µin	Square	General Purpose	2	0.015 µm	0.59 µin	2 A	4	Tin	Right Angle Surface Mount	Gold	UL94 V-0	-40 C	105 ░C	Forked	Solder	0.079 "	2 mm	Black	All	Receptacle	4 mm	0.157 in	2 mm	0.079 in	Push-Pull
Harwin Inc. M22-6551042R	Phosphor Bronze	2.03 µm	80 µin	Square	General Purpose	2	0.015 µm	0.59 µin	2 A	20	Tin	Right Angle Surface Mount	Gold	UL94 V-0	-40 C	105 ░C	Forked	Solder	0.079 "	2 mm	Black	All	Receptacle	4 mm	0.157 in	2 mm	0.079 in	Push-Pull
Harwin Inc. M22-6550442R	Phosphor Bronze	2.03 µm	80 µin	Square	General Purpose	2	0.015 µm	0.59 µin	2 A	8	Tin	Right Angle Surface Mount	Gold	UL94 V-0	-40 C	105 ░C	Forked	Solder	0.079 "	2 mm	Black	All	Receptacle	4 mm	0.157 in	2 mm	0.079 in	Push-Pull
Harwin Inc. M22-6550842R	Phosphor Bronze	2.03 µm	80 µin	Square	General Purpose	2	0.015 µm	0.59 µin	2 A	16	Tin	Right Angle Surface Mount	Gold	UL94 V-0	-40 C	105 ░C	Forked	Solder	0.079 "	2 mm	Black	All	Receptacle	4 mm	0.157 in	2 mm	0.079 in	Push-Pull
