TPS92511 Series
Manufacturer: Texas Instruments
Beta
⌘K
500MA 30W ANODE CAPABLE CONSTANT CURRENT BUCK LED DVR
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Supply (Min) [Min] | Frequency | Dimming | Supplier Device Package | Type | Current - Output / Channel | Package / Case | Internal Switch(s) | Voltage - Supply (Max) [Max] | Applications | Topology | Number of Outputs | Mounting Type | Supplied Contents | Outputs and Type | Outputs and Type | Voltage - Output | Voltage - Input [Min] | Voltage - Input [Max] | Utilized IC / Part | Contents | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 125 °C | -40 °C | 4.5 V | 500 kHz | Analog PWM | 8-SO PowerPad | DC DC Regulator | 500 mA | 8-PowerSOIC (0.154" 3.90mm Width) | 65 V | Lighting | Step-Down (Buck) | 1 | Surface Mount | ||||||||||
 Texas Instruments | 125 °C | -40 °C | 4.5 V | 500 kHz | Analog PWM | 8-SO PowerPad | DC DC Regulator | 500 mA | 8-PowerSOIC (0.154" 3.90mm Width) | 65 V | Lighting | Step-Down (Buck) | 1 | Surface Mount | ||||||||||

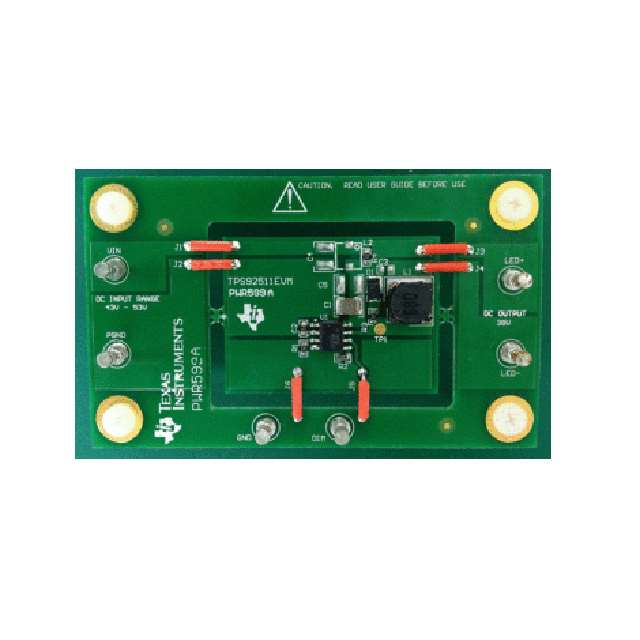

 Texas Instruments | 500 mA | Board(s) | 1 | 1 Non-Isolated Output Non-Isolated | 38 V | 43 VDC | 53 V | TPS92511 | Board(s) | Dimmable |
