83334E Series
Manufacturer: Belden Inc.
Beta
⌘K

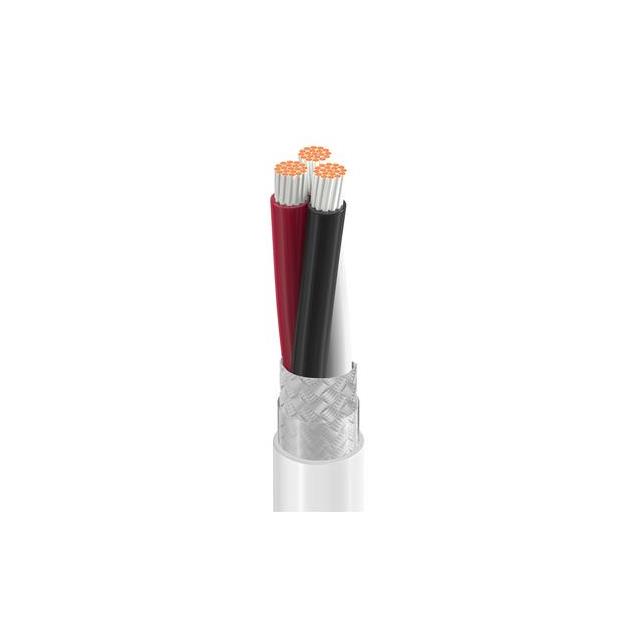

CABLE 3COND 22AWG WHT SHLD
| Part | Shield Material | Shield Coverage | Conductor Strand [custom] | Conductor Strand [custom] | Length | Length | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Qualification | Voltage | Wire Gauge | Jacket (Insulation) Material | Number of Conductors | Shield Type | Conductor Insulation | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Cable Type | Conductor Material | Jacket Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Copper Silver Coated | 85 % | 34 AWG | 19 | 304.8 m | 1000 ft | 0.279 mm | 0.011 " | MIL-W-16878/4 Type E | 600 V | 22 AWG | Tetrafluoroethylene (TFE) | 3 | Braid | Tetrafluoroethylene (TFE) | 0.15 in | 3.81 mm | -65 ░C | 200 °C | Multi-Conductor | Copper Silver Coated | White |
Belden Inc. | Copper Silver Coated | 85 % | 34 AWG | 19 | 152.4 m | 500 ft | 0.279 mm | 0.011 " | MIL-W-16878/4 Type E | 600 V | 22 AWG | Tetrafluoroethylene (TFE) | 3 | Braid | Tetrafluoroethylene (TFE) | 0.15 in | 3.81 mm | -65 ░C | 200 °C | Multi-Conductor | Copper Silver Coated | White |
