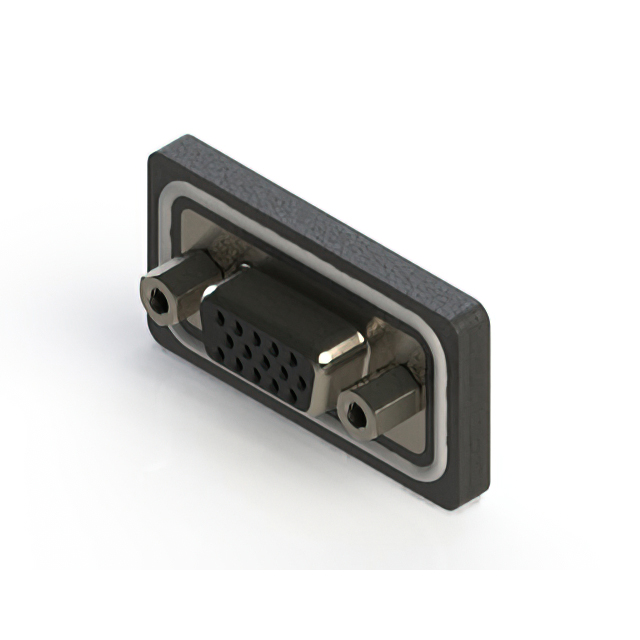

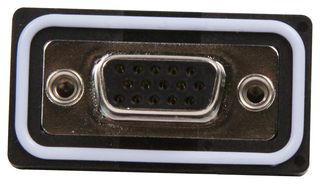

638-W15 Series
Manufacturer: EDAC Inc.
Beta
⌘K
638W (WATERPROOF) SERIES VERTICA
| Part | Color | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | Contact Finish | Flange Feature | Material Flammability Rating | Connector Type | Number of Positions | Number of Rows [custom] | Ingress Protection | Contact Finish Thickness | Contact Finish Thickness | Shell Material, Finish | Contact Type | Connector Style | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Mounting Type | Termination | Current Rating (Amps) | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Black | Copper Alloy | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) Glass Filled | Gold | 4-40 Mating Side Female Screwlock | UL94 V-0 | Receptacle Female Sockets | 15 | 3 | IP67 - Dust Tight Waterproof | 0.38 µm | 15 µin | Nickel Plated Steel | Signal | D-Sub High Density | (DE E) High Density | 1 | Through Hole | Solder | 3 A | |
 EDAC Inc. | Black | Copper Alloy | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) Glass Filled | Gold | 4-40 Mating Side Female Screwlock | UL94 V-0 | Receptacle Female Sockets | 15 | 3 | IP67 - Dust Tight Waterproof | Nickel Plated Steel | Signal | D-Sub High Density | (DE E) High Density | 1 | Panel Mount Through Hole | Solder | 3 A | Flash | ||
 EDAC Inc. | Black | Copper Alloy | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) Glass Filled | Gold | 4-40 Mating Side Female Screwlock | UL94 V-0 | Receptacle Female Sockets | 15 | 3 | IP67 - Dust Tight Waterproof | 0.76 Ám | 30 Áin | Nickel Plated Steel | Signal | D-Sub High Density | (DE E) High Density | 1 | Free Hanging (In-Line) | 3 A | ||
 EDAC Inc. | Black | Copper Alloy | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) Glass Filled | Gold | 4-40 Mating Side Female Screwlock | UL94 V-0 | Receptacle Female Sockets | 15 | 3 | IP67 - Dust Tight Waterproof | 0.38 µm | 15 µin | Nickel Plated Steel | Signal | D-Sub High Density | (DE E) High Density | 1 | Free Hanging (In-Line) | 3 A |
