MTJ-88 Series
Manufacturer: Adam Tech
Beta
⌘K
RJ45 MODULAR JACK, DIP, SIDE ENT
| Part | Housing Material | Contact Finish Thickness | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Number of Ports | Orientation | Number of Positions/Contacts | LED Color | Shielding | Tab Direction | Contact Finish | Features | Termination | Contact Material | Number of Rows | Connector Type | Shield Material | Height Above Board [z] | Height Above Board [z] | Number of Cores per Jack | Height Above Board | Height Above Board | Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | Polybutylene Terephthalate (PBT) Glass Filled | Flash | 85 °C | -40 C | Through Hole | 1 | 90 ° | 8p8c (RJ45 Ethernet) | Green - Yellow | Unshielded | Down | Gold | Board Guide Solder Retention | Solder | Copper Alloy | 1 | Jack | |||||||

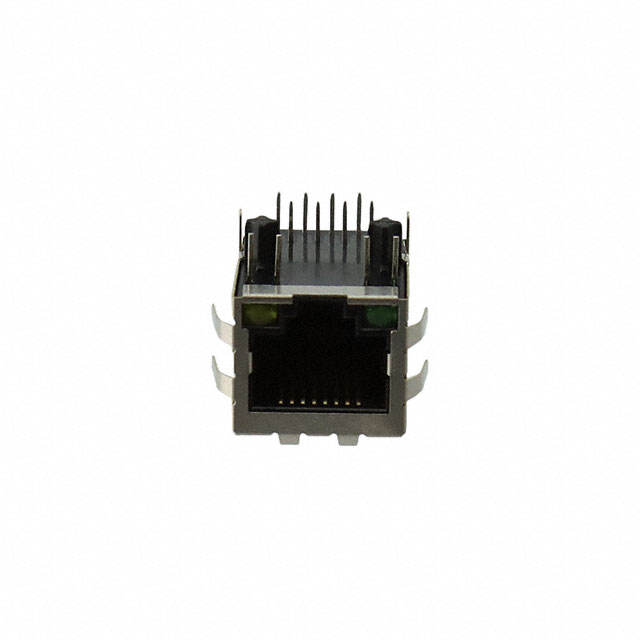

 Adam Tech | Polybutylene Terephthalate (PBT) Glass Filled | Flash | 85 °C | -40 C | Through Hole | 1 | 90 ° | 8p8c (RJ45 Ethernet) | Green Yellow | Shielded | Up | Gold | Board Guide Solder Retention | Solder | Phosphor Bronze | 1 | Jack | |||||||

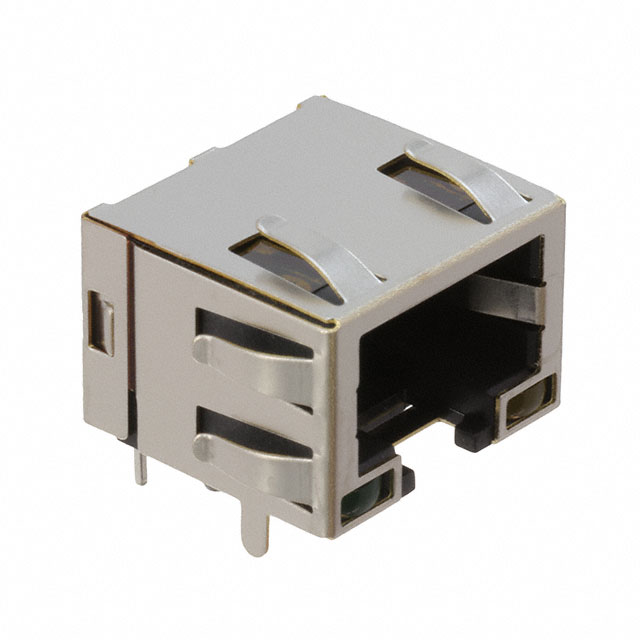

 Adam Tech | Polybutylene Terephthalate (PBT) | Flash | 70 °C | 0 °C | Through Hole | 1 | 90 ° | Yellow - Green | Shielded | Up | Gold | Board Guide Solder Retention | Solder | Copper Alloy | 1 | Jack | Brass Nickel Coated | 16.87 mm | 0.664 in | 8 | ||||
 Adam Tech | Thermoplastic | Flash | 70 °C | 0 °C | Through Hole | 1 | 90 ° | Green Yellow | EMI Finger Shielded | Up | Gold | Board Lock Solder Retention | Solder | Phosphor Bronze | 1 | Jack | Stainless Steel | 8 | 13.49 mm | 0.531 in | ||||

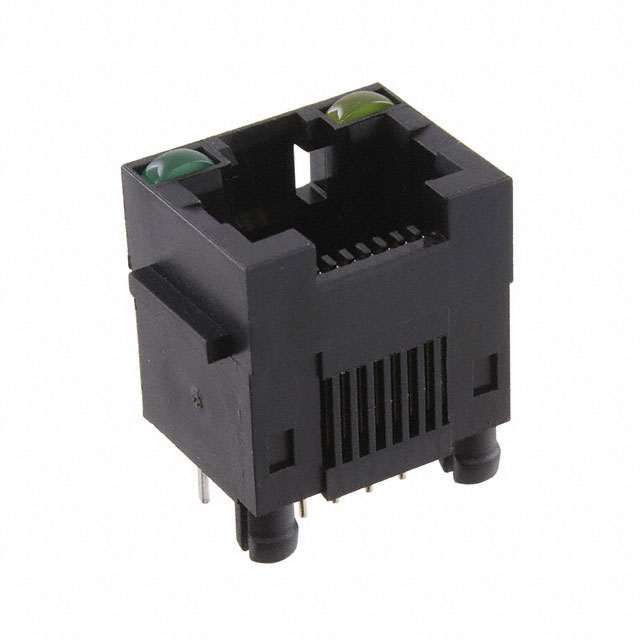

 Adam Tech | Polybutylene Terephthalate (PBT) Glass Filled | Flash | 85 °C | -40 C | Through Hole | 1 | 90 ° | 8p8c (RJ45 Ethernet) | Green - Green | Shielded Unshielded | Up | Gold | Board Guide | Solder | Phosphor Bronze | 1 | Jack | |||||||
 Adam Tech | Polybutylene Terephthalate (PBT) | Flash | 125 °C | -40 C | Through Hole | 1 | 90 ° | 8p8c (RJ45 Ethernet) | Does Not Contain LED | Unshielded | Up | Gold | Board Lock Solder Retention | Solder | Phosphor Bronze | 1 | Jack | |||||||

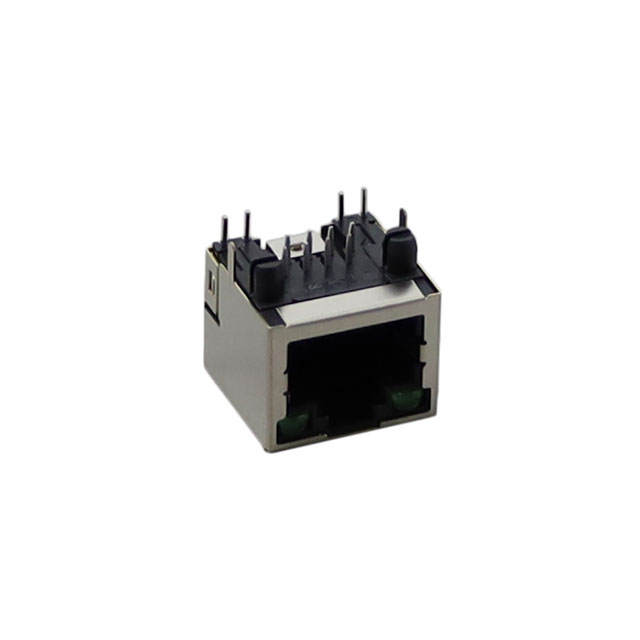

 Adam Tech | Thermoplastic | Flash | 70 °C | 0 °C | Through Hole | 1 | 90 ° | Green - Yellow | EMI Finger Shielded | Down | Gold | Board Guide Solder Retention | Solder | Copper Alloy | 1 | Jack | Copper Alloy Nickel Coated | 13.49 mm | 0.531 in | |||||

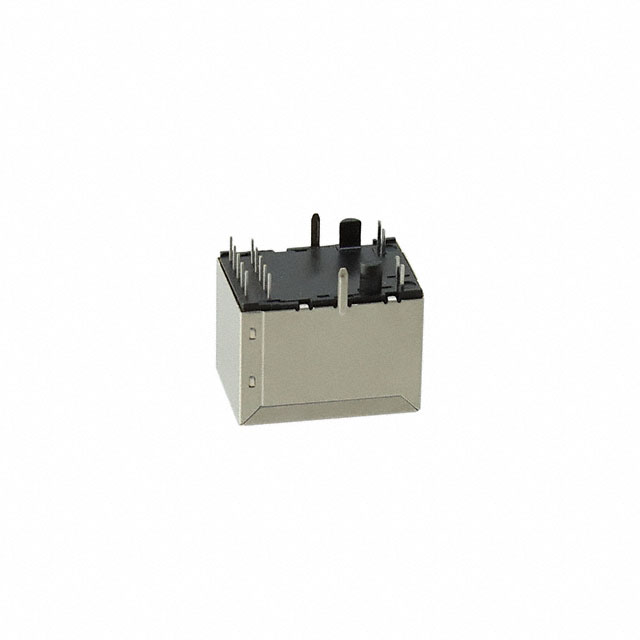

 Adam Tech | Polyamide (PA46) Nylon 4/6 Glass Filled | Flash | 85 °C | -40 C | Through Hole | 1 | 8p8c (RJ45 Ethernet) | Green - Yellow | Unshielded | Up | Gold | Board Lock Solder Retention | Solder | Phosphor Bronze | 1 | Jack | Vertical | |||||||
Adam Tech | Polybutylene Terephthalate (PBT) Glass Filled | Flash | 70 °C | -20 ░C | Through Hole | 1 | 90 ° | Green - Yellow | EMI Finger Shielded | Down | Gold | Board Guide Solder Retention | Solder | Copper Alloy | 1 | Jack | Copper Alloy Nickel Coated | 13.49 mm | 0.531 in | |||||
 Adam Tech | Polyamide (PA46) Nylon 4/6 Glass Filled | Flash | 85 °C | -40 C | Through Hole | 1 | 90 ° | 8p8c (RJ45 Ethernet) | Green Green - Yellow | EMI Finger Shielded | Down | Gold | Board Guide Solder Retention | Solder | Phosphor Bronze | 1 | Jack |
