G17K09 Series

Catalog

CONN D-SUB RCPT 9POS IDC

Part	Contact Material	Color	Dielectric Material	Number of Rows [custom]	Material Flammability Rating	Contact Finish	Flange Feature	Connector Type	Mounting Type	Shell Material, Finish	Termination	Features	Contact Type	Connector Style	Number of Positions	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]

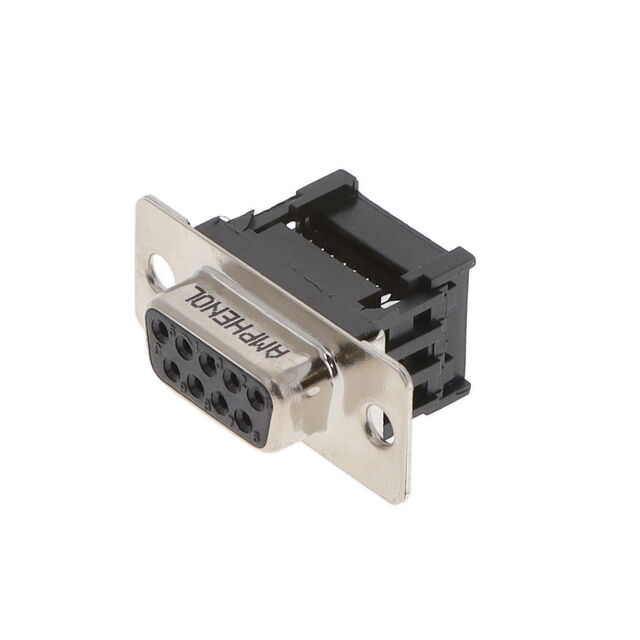

Amphenol ICC (Commercial Products) G17K09001001EU	Phosphor Bronze	Black	Polybutylene Terephthalate (PBT)	2	UL94 V-0	Gold	Housing/Shell (Unthreaded)	Receptacle Female Sockets	Free Hanging (In-Line)	Steel	IDC Ribbon Cable	Feed Through Strain Relief	Signal	D-Sub	9	1	DE E

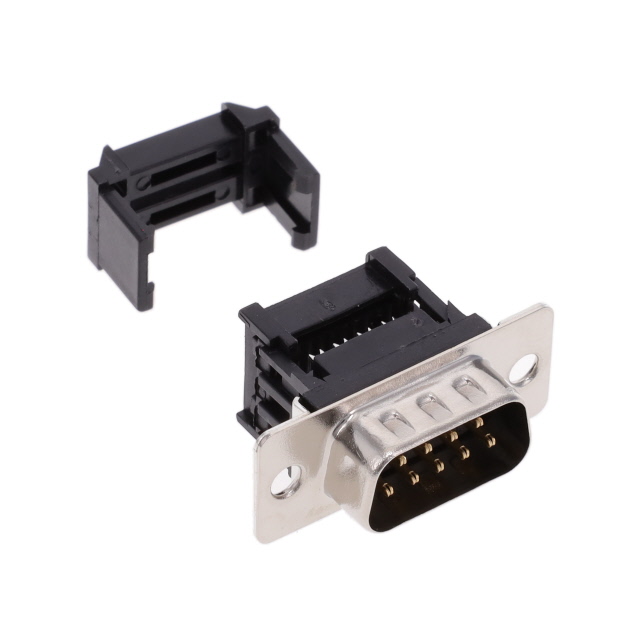

Amphenol ICC (Commercial Products) G17K09101001EU	Brass	Black	Polybutylene Terephthalate (PBT)	2	UL94 V-0	Gold	Housing/Shell (Unthreaded)	Plug Male Pins	Free Hanging (In-Line)	Steel	IDC Ribbon Cable	Feed Through Grounding Indents Strain Relief	Signal	D-Sub	9	1	DE E
Amphenol ICC (Commercial Products) G17K09003101EU	Phosphor Bronze	Black	Polybutylene Terephthalate (PBT)	2	UL94 V-0	Gold	Housing/Shell (Unthreaded)	Receptacle Female Sockets	Free Hanging (In-Line)	Steel	IDC Ribbon Cable	Feed Through Strain Relief	Signal	D-Sub	9	1	DE E
