2SD170 Series

Catalog

TRANS NPN 80V 20A TOP-3F

Part	Package / Case	Supplier Device Package	Current - Collector (Ic) (Max) [Max]	Mounting Type	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Current - Collector Cutoff (Max) [Max]	Frequency - Transition	Power - Max [Max]	Transistor Type	Operating Temperature	Vce Saturation (Max) @ Ib, Ic	Voltage - Collector Emitter Breakdown (Max) [Max]

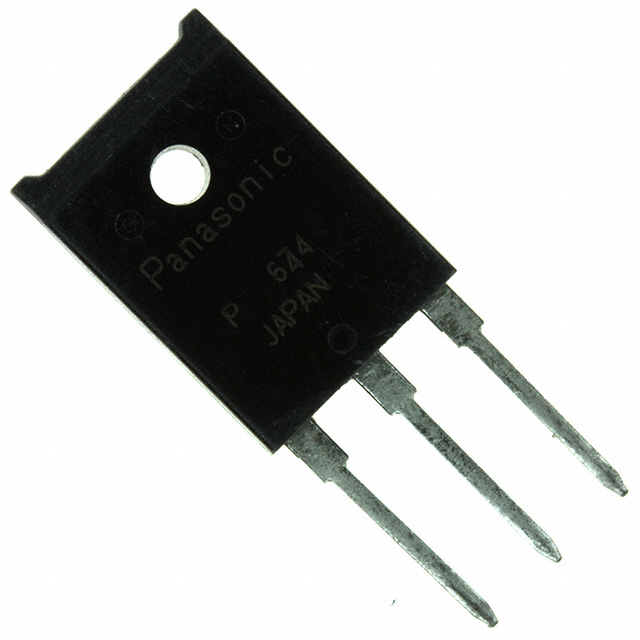

Panasonic Electronic Components 2SD17070P	TOP-3F	TOP-3F-A1	20 A	Through Hole	130	10 µA	20 MHz	3 W	NPN	150 °C	1.5 V	80 V

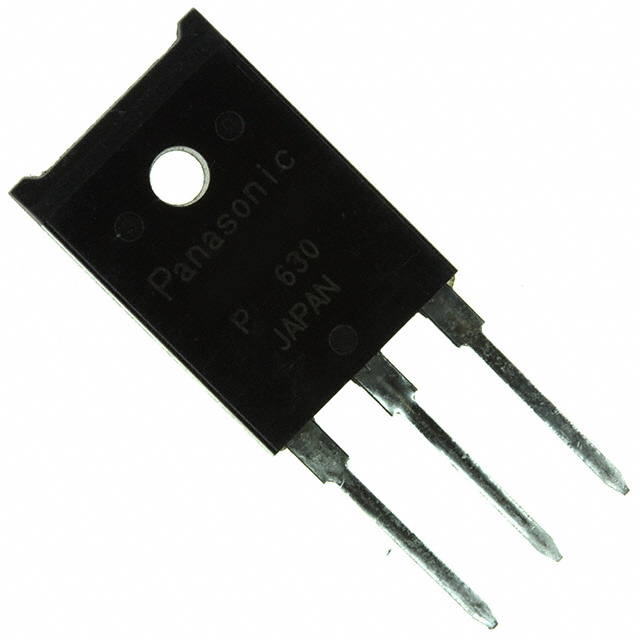

Panasonic Electronic Components 2SD17050P	TOP-3F	TOP-3F-A1		Through Hole	130	10 µA	20 MHz	3 W	NPN	150 °C	1.5 V	80 V
