WR9QB3000 Series
Manufacturer: GlobTek, Inc.
Beta
⌘K

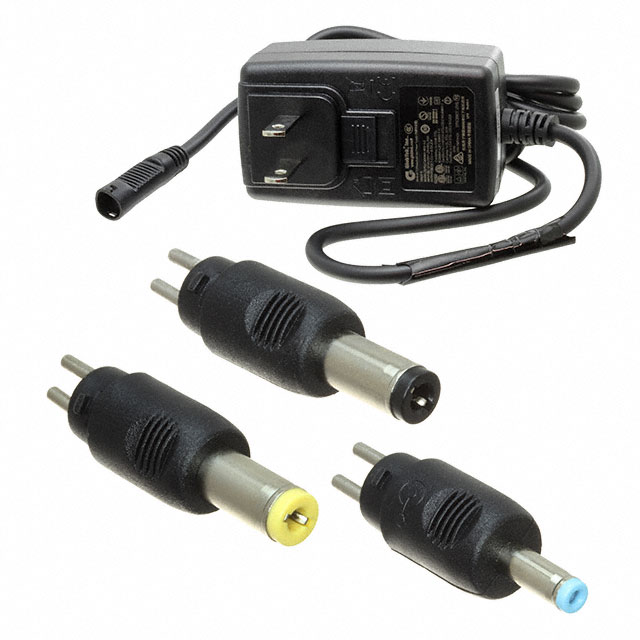

AC/DC WALL MNT ADAPTER 5.95V 18W
| Part | Voltage - Input (AC) Minimum | Voltage - Input (AC) Maximum | Input Type | Approval Agency | Output Connector | Cord Length | Form | No Load Power Consumption (Max) | Operating Temperature (Max) | Operating Temperature (Min) | Applications | Efficiency | Region Utilized | Input Connector | Standard Number | Power (Watts) | Current - Output (Max) | Voltage - Output | Size / Dimension Length | Size / Dimension Height | Size / Dimension Width |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 GlobTek, Inc. | 90 V | 264 V | Multi-Blade (Sold Separately) | BIS CB CCC CE cETLus EAC ETL LPS NOM PSE RCM S-Mark UKRSepro UL VCCI | (1.3mm x 3.5mm 2.1mm x 5.5mm 2.5mm x 5.5mm) Barrel Plug Kit | 47.2 in | Wall Mount (Class II) | 75 mW | 40 °C | -20 °C | Household Appliances ITE (Commercial) Medical | Level VI | International | Multi-Blade (Sold Separately) | 1310 60335-1 60601-1-11 60601-1-2 60950-1 61558-1 62368-1 | 18 W | 3 A | 5.95 V | 2.91 in | 1.45 in | 1.71 in |
