09305161 Series
Manufacturer: HARTING
Beta
⌘K

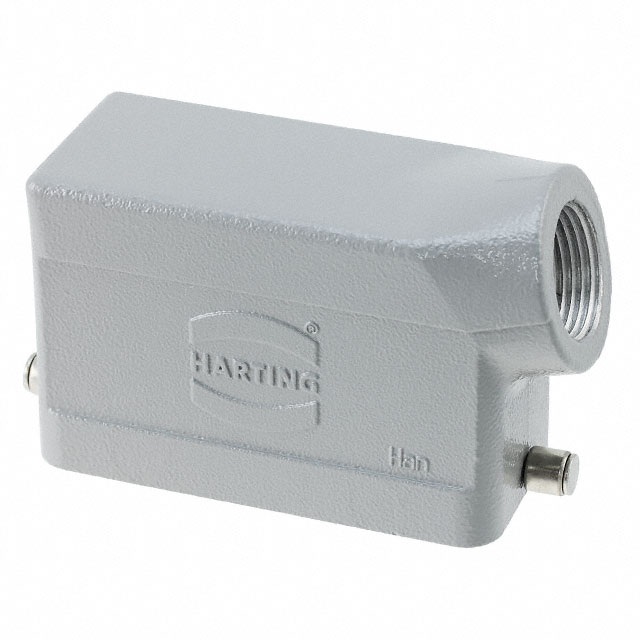

HEAVY DUTY CONNECTOR, HOOD, SIDE ENTRY, 16B, HARTING HAN SERIES HEAVY DUTY CONNECTOR, HAN SERIES
| Part | Housing Material | Connector Type | Ingress Protection | Thread Size | Housing Color | Lock Location | Housing Finish | Style | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Operating Temperature [Max] | Operating Temperature [Min] | Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HARTING | Aluminum Die Cast | Hood | IP65 - Dust Tight Water Resistant | NPT-3/4 | Gray | Locking Clip (1) on Base Bottom | Powder Coated | Side Entry | 1.693 " 43 mm | 2.461 in 62.5 mm | 3.681 in 93.5 mm | 125 °C | -40 C | 16 B |
