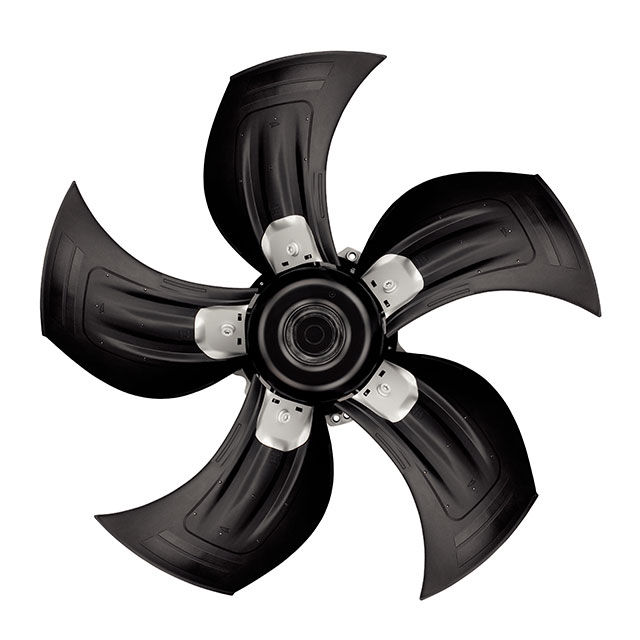

W3G800 Series
Manufacturer: ebm-papst Inc.
Beta
⌘K
FAN AXIAL
| Part | Material - Blade [custom] | Current Rating (Amps) | Material - Frame | Approval Agency | Operating Temperature [Min] | Operating Temperature [Max] | Ingress Protection | Features | RPM | Fan Type | Size / Dimension [x] | Size / Dimension [y] | Power (Watts) | Voltage - Rated | Air Flow | Air Flow | Width [x] | Weight | Weight | Voltage Range [Min] | Voltage Range [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | Aluminum | 5 A | Aluminum | UL | -25 °C | 60 °C | IP54 - Dust Protected Water Resistant | Electronic Commutation (EC) | 925 RPM | Tubeaxial | 970 mm | 970 mm | 1880 W | 240 VAC | 397.6 m³/min | 14200 CFM | 294.5 mm | 42.6 kg | 94 lbs | ||
ebm-papst Inc. | Aluminum | 7.8 A | Aluminum | UL | -25 °C | 60 °C | IP54 - Dust Protected Water Resistant | Electronic Commutation (EC) | 1090 RPM | Tubeaxial | 970 mm | 970 mm | 2860 W | 240 VAC | 460.6 m³/min | 16450 CFM | 307 mm | 50.8 kg | 112 lbs | ||
ebm-papst Inc. | Aluminum | 2.5 A | Aluminum | CSA EAC UL | -25 °C | 65 °C 150 °F | IP54 - Dust Protected Water Resistant | Electronic Commutation (EC) | 925 RPM | Tubeaxial | 970 mm | 970 mm | 1850 W | 480 VAC | 397.6 m³/min | 14200 CFM | 294.5 mm | 42.6 kg | 94 lbs | 380 VAC | 480 VAC |
